232 USB Protocol Suite User Manual
9.8.1 Using the Link Tracker Window
The Link Tracker window can be reformatted in several ways.
Zooming In and Out
Zooming out can give you a quick, high‐level view of a trace. A fully zoomed out trace
only shows columns and colored lines. Using the colors, you can see what types of traffic
run through the trace.
Further information can be obtained on any point of interest in the trace by positioning
your mouse pointer over it. Tool tips provide detailed description of events.
Note: When fully zoomed out, the smallest graphical unit is the DWORD, represented by a single line.
Zooming out makes the trace appear smaller and increases the time scale in the first column.

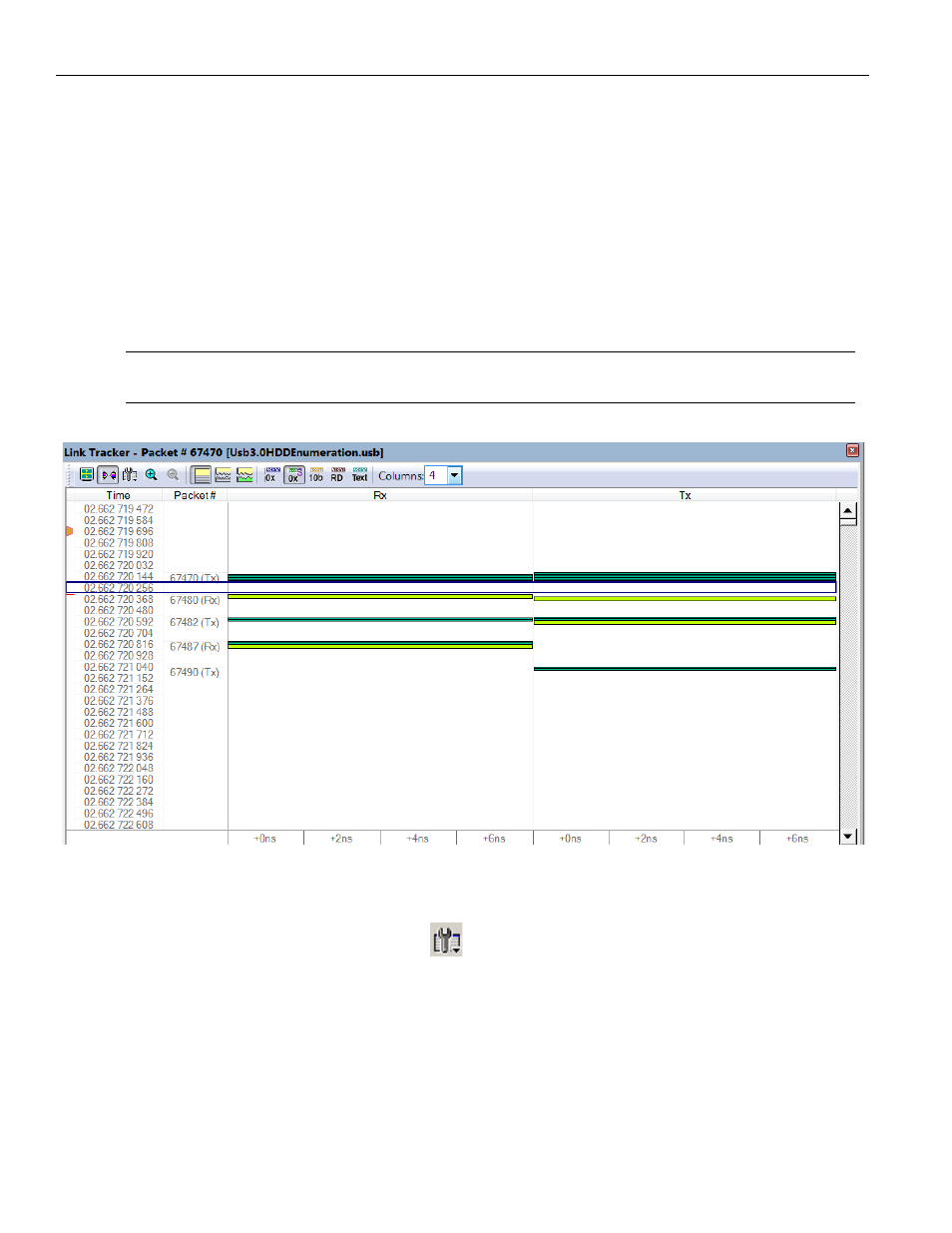

Figure 9.24: Link Tracker Window Zoomed Out
Collapsing Idle Time, Enabling Tool tips, and Resetting Column Widths
Click the View Options button to open a menu with options for formatting the
display. Three options are presented:
Collapsible Idle Time: Opens a dialog box for setting the Idle time value. Setting a value
tells the Analyzer when to collapse Idle times and display them as grayed out strips within
the Bus View window.
Time Format: Seconds or Clock
