Teledyne LeCroy Corporation View Decoded Transactions
134 USB Protocol Suite User Manual
You can also switch to Transaction View from the Menu Bar:
1. Select Display Options under Setup to display the Display Options General window.

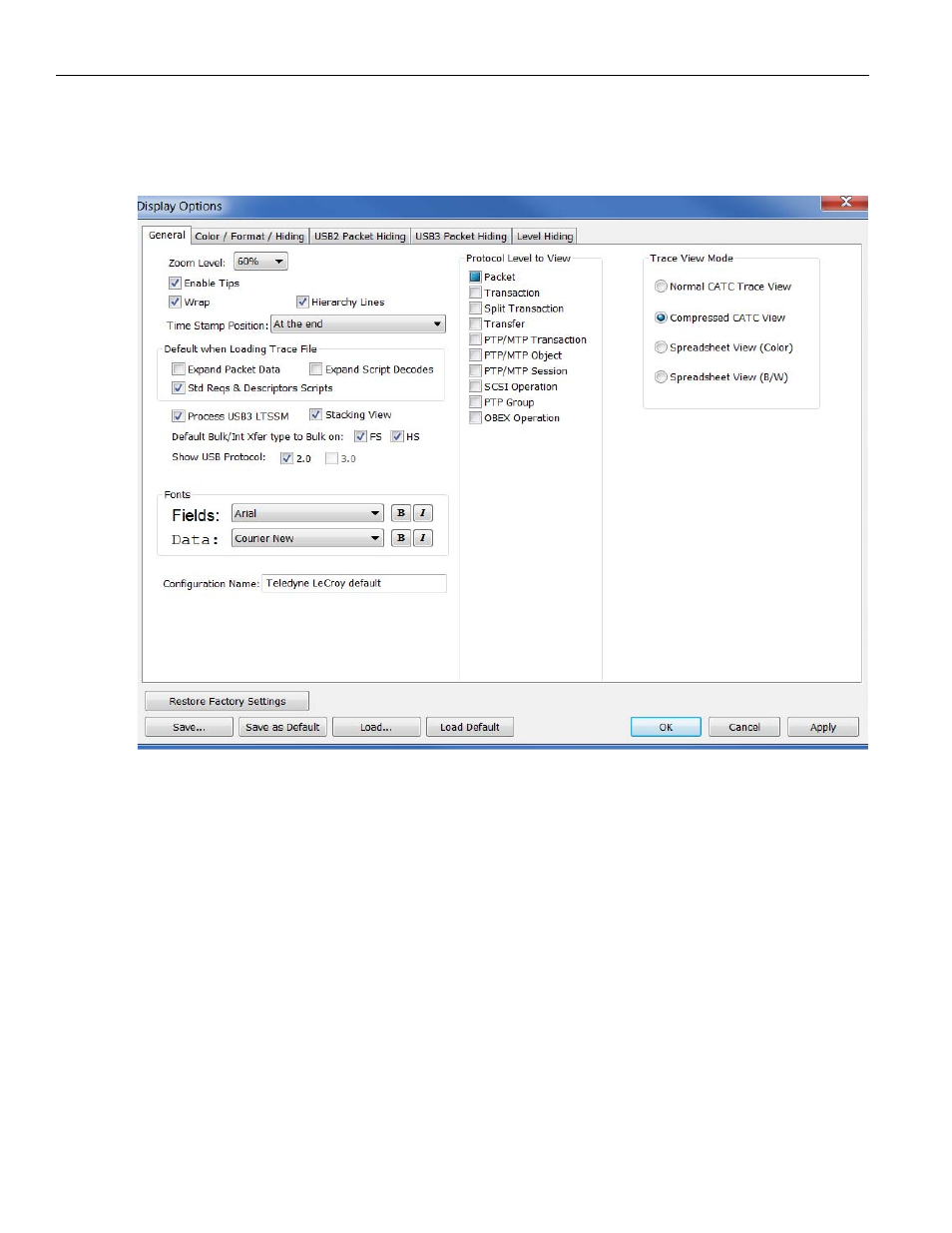

Figure 5.37: Display Options General Dialog
2. Check Transaction.
3. Click OK.
5.27 View Decoded Transactions
After you set Display Options, the Trace View screen is re‐drawn to display decoded
transactions in the colors and format you selected (see
Figure 5.38 on page 135 ).
