Teledyne LeCroy Corporation Voyager M3/M3i Analyzer
20 USB Protocol Suite User Manual
1.2 Voyager M3/M3i Analyzer
The Teledyne LeCroy Voyager™ M3/M3i Analyzer and Exerciser system is a multifunction
verification system for USB 2.0 and USB 3.0 development and testing. It can record traffic
and graphically present logical USB transactions and events. It can also generate USB
traffic. The system is connected to a laptop or desktop via its USB or Gigabit Ethernet port
(see
Figure 1.2 on page 20 ).
Note: The Voyager M3 and Voyager M3i Analyzer and Exerciser are identical in most respects. The
major difference is that Voyager M3i can capture VBus Power information. Otherwise, all
mentions of Voyager M3 in this manual also apply to Voyager M3i.

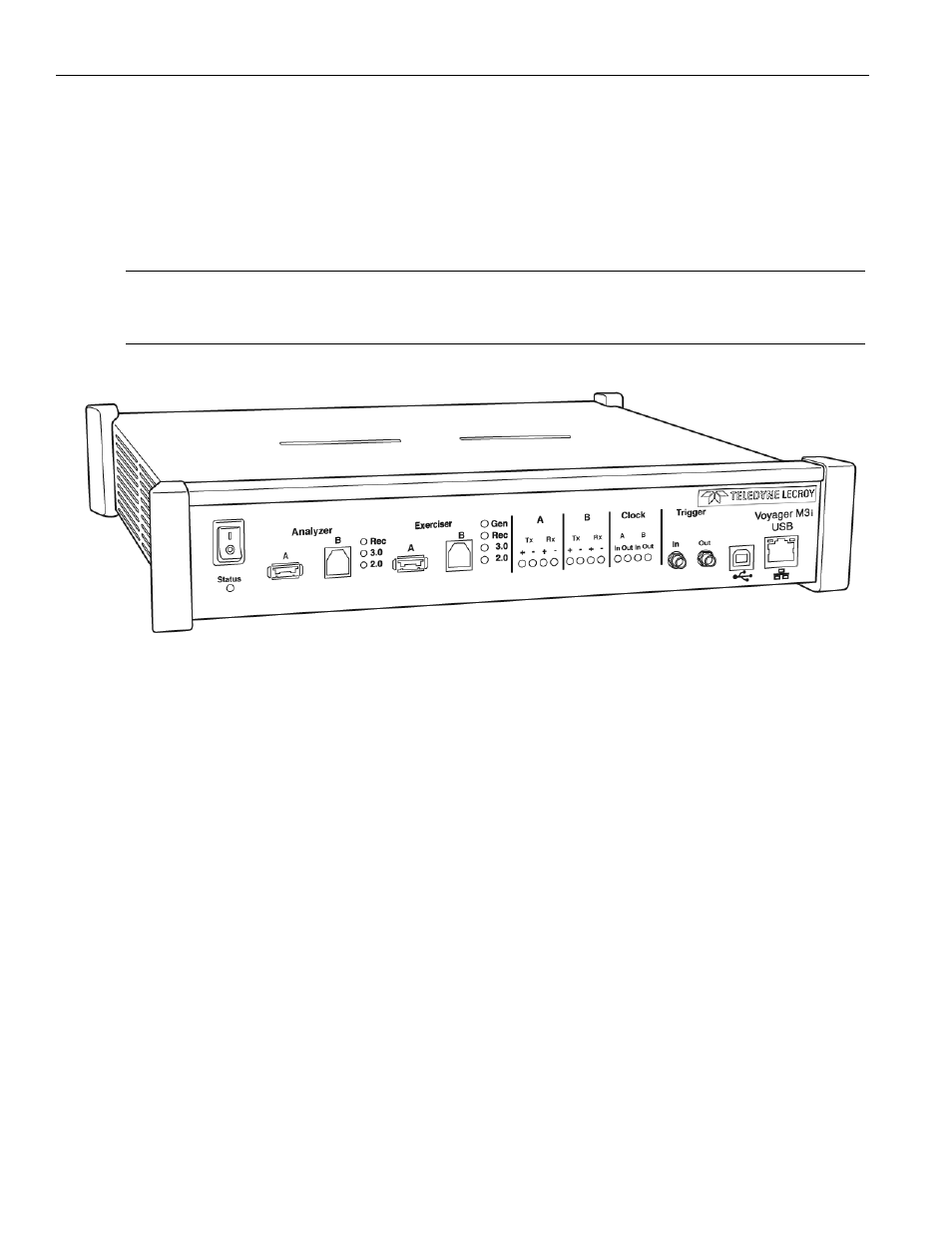

Figure 1.2: Voyager M3/M3i Analyzer Exerciser System
Please see the Readme file on the installation CD for the latest information on host
machine requirements and supported operating systems.
1.2.1 USB 2.0 and USB 3.0 Features
The system can monitor traffic between USB 2.0 links using standard high‐speed
compliant cables.
If configured for USB 3.0 testing, the system supports monitoring between SuperSpeed
links using USB 3.0 cables (see
Figure 1.3 on page 21 )
