View Docking and Floating Windows.
208
USB Protocol Suite User Manual
Link Tracker (3.0): Displays a detailed chronological view of events.
Navigator: Navigates within the trace to view the location of errors and triggers,
narrow the range of traffic on display, and jump to any point in the trace.
Detail View: Shows details of selected packet.
Spec View (3.0): Shows packet header information and other items, in a view
that matches the USB 3.0 specification.
USB 3.0 Link State Timing View: Graphically shows how much time the link
spends in each link state.
USB 3.0 LTSSM View: Displays the LTSSM diagram depicted in the USB 3.0 speci‐
fication.
Power Tracker (Voyager M3i only): Displays voltage, current, and power. You can
select Hide, Full Screen, Sync by Time, or Real Time Monitor.
“Decoded Fields View” on page 204
Run Verification Scripts: Opens a window to allow you to run verification scripts
over the open trace.
Reports are available from the Report menu and buttons on the Tool bar. Tools are
available from the Tools menu.
9.1
View Docking and Floating Windows.
Similar to the windows in most Windows™ programs, most report views are dockable
and tab‐able. To help guide the docking of windows, drop targets are provided so that
you can drag the cursor to those locations and be confident of the location your window
will be docked. See
.

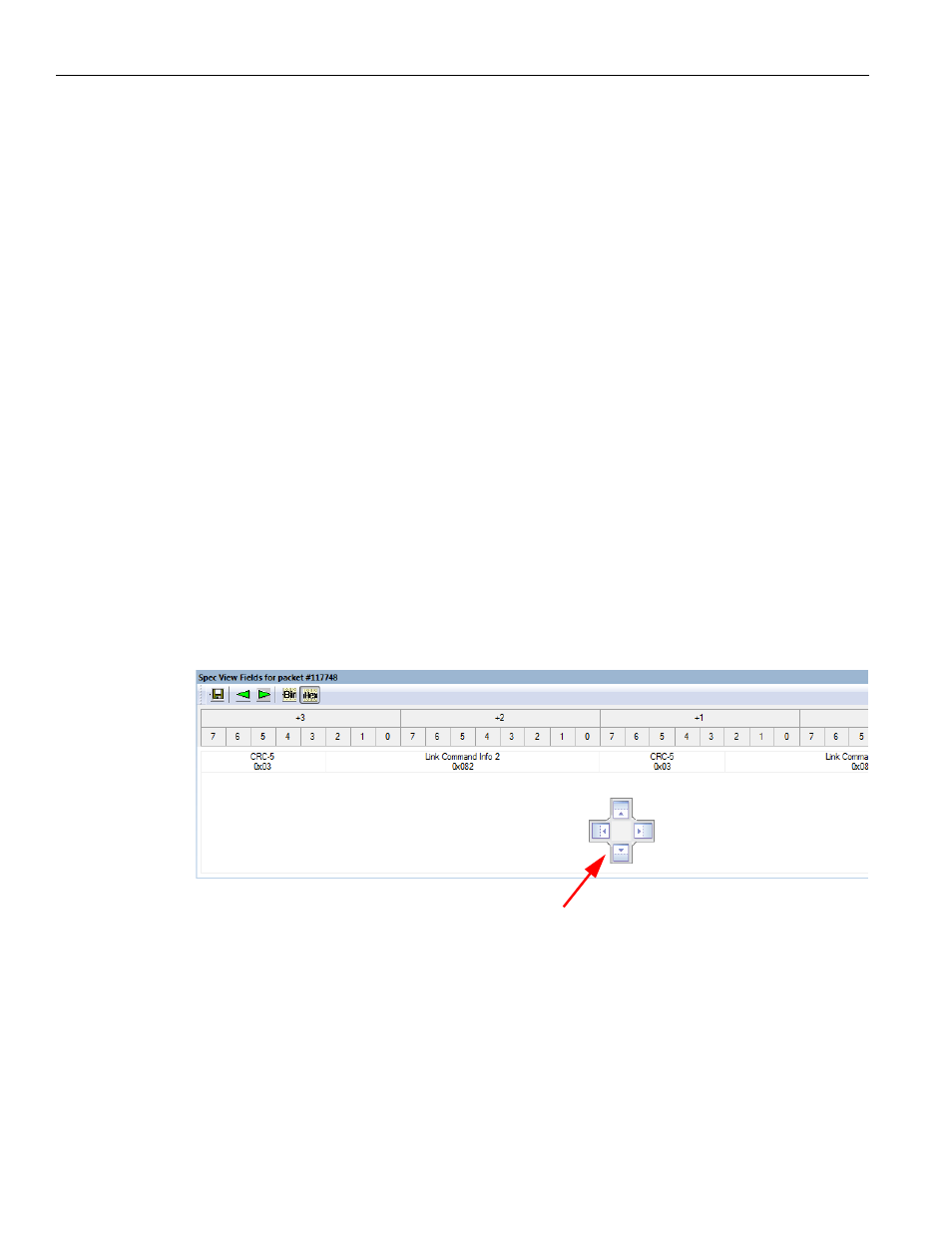

Figure 9.2: Drop Target
Drop Targets
