Teledyne LeCroy Corporation Traffic Generation Files
318 USB Protocol Suite User Manual
11.3 Traffic Generation Files
The system generates USB 2.0 traffic from traffic generation files (*.utg) which are text‐
based script files that instruct the Generator how to generate USB 2.0 traffic. These script
files can be edited with either a simple text editor such as Notepad or with the
Script Editor utility provided by the application. The Script Editor utility has several aids to
simplify the process of writing and editing scripts: tool‐tips, drop‐down menus, and
colored fields.
The script example below shows the beginning of a traffic generation file created through
the Export command. This command provides an easy way to create a generation file ‐
you open a trace file, then run the Export command. The trace serves as a blueprint for
the traffic generation file. The example below shows several commented lines followed
by some instructions.

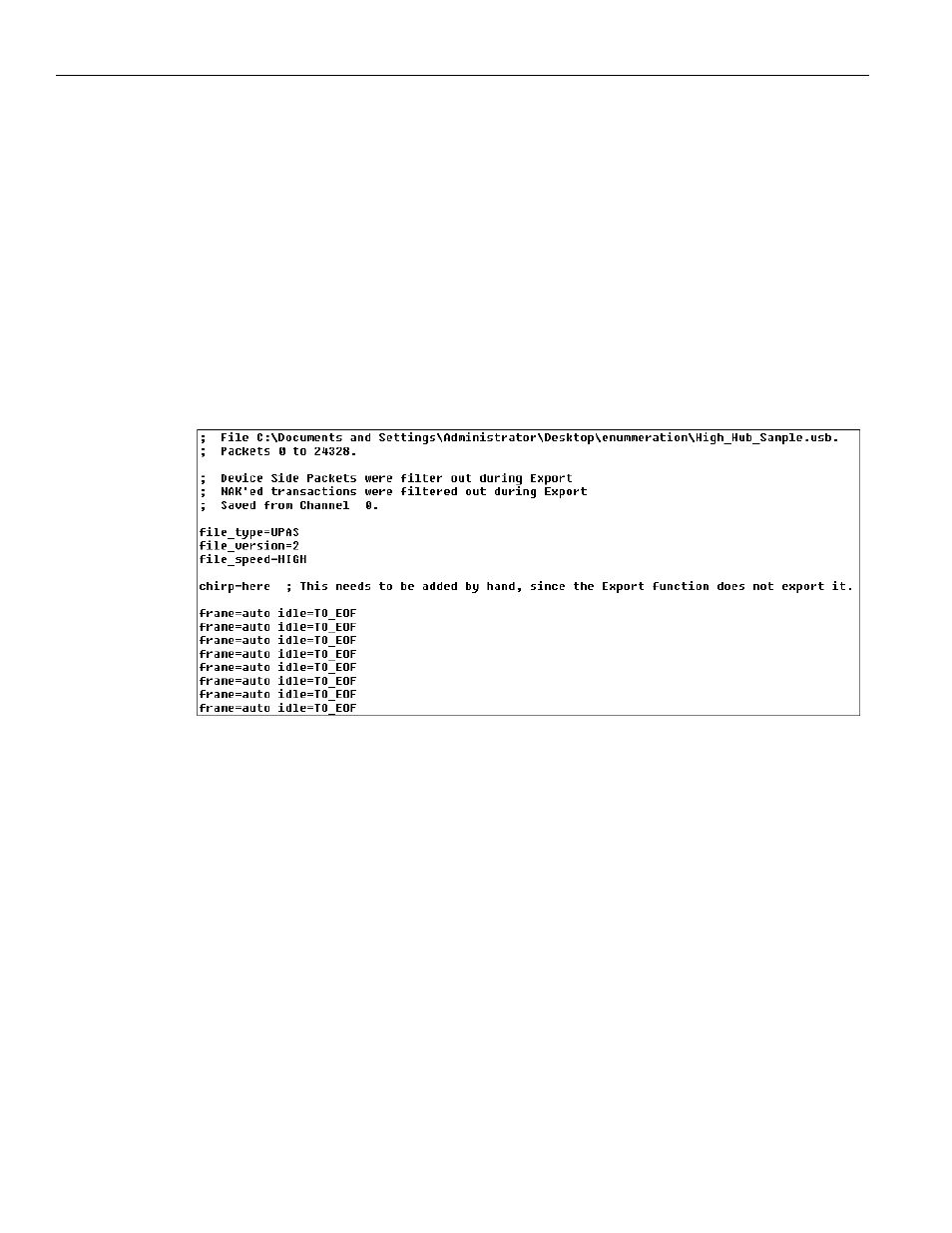

Figure 11.5: Script example of a Traffic Generation File
This generation file causes the system to simulate a hub and to generate 24,320 packets.
See
“Device Emulation” on page 328 for details about the format of traffic generation
files.
11.4 Creating Traffic Generation Files
If you choose to write a script with a text editor, a good way to start is to edit an example
generation file.
For Windows 7 and Windows 8, an example such as:
FS_Enum_Break_Wrap_Sample.utg, HS_Hub_Sample.utg in the directory
C:\Users\Public \Documents\LeCroy\USB Protocol Suite\Examples\2.0 Host Emulation
or SampleDeviceEmulationThumbDriveFS.utg in the directory C:\Users\Public\
Documents\LeCroy\USB Protocol Suite\Examples\2.0 Device Emulation.
For Windows XP, an example such as: FS_Enum_Break_Wrap_Sample.utg,
HS_Hub_Sample.utg, or SampleDeviceEmulationThumbDriveFS.utg, in the directory
C:\Program Files\LeCroy\USB Protocol Suite\Examples\2.0 Host Emulation or
C:\Program Files\LeCroy\USB Protocol Suite\Examples\2.0 Device Emulation.
