1.3 Advisor T3
The Teledyne LeCroy USB Advisor T3™ USB 3.0 Protocol Analyzer is a verification system
for USB development and testing. It supports both USB 2.0 and USB 3.0. It can record USB
traffic and graphically present the logical transactions and events. It connects to a laptop
or desktop host machine through its USB port.

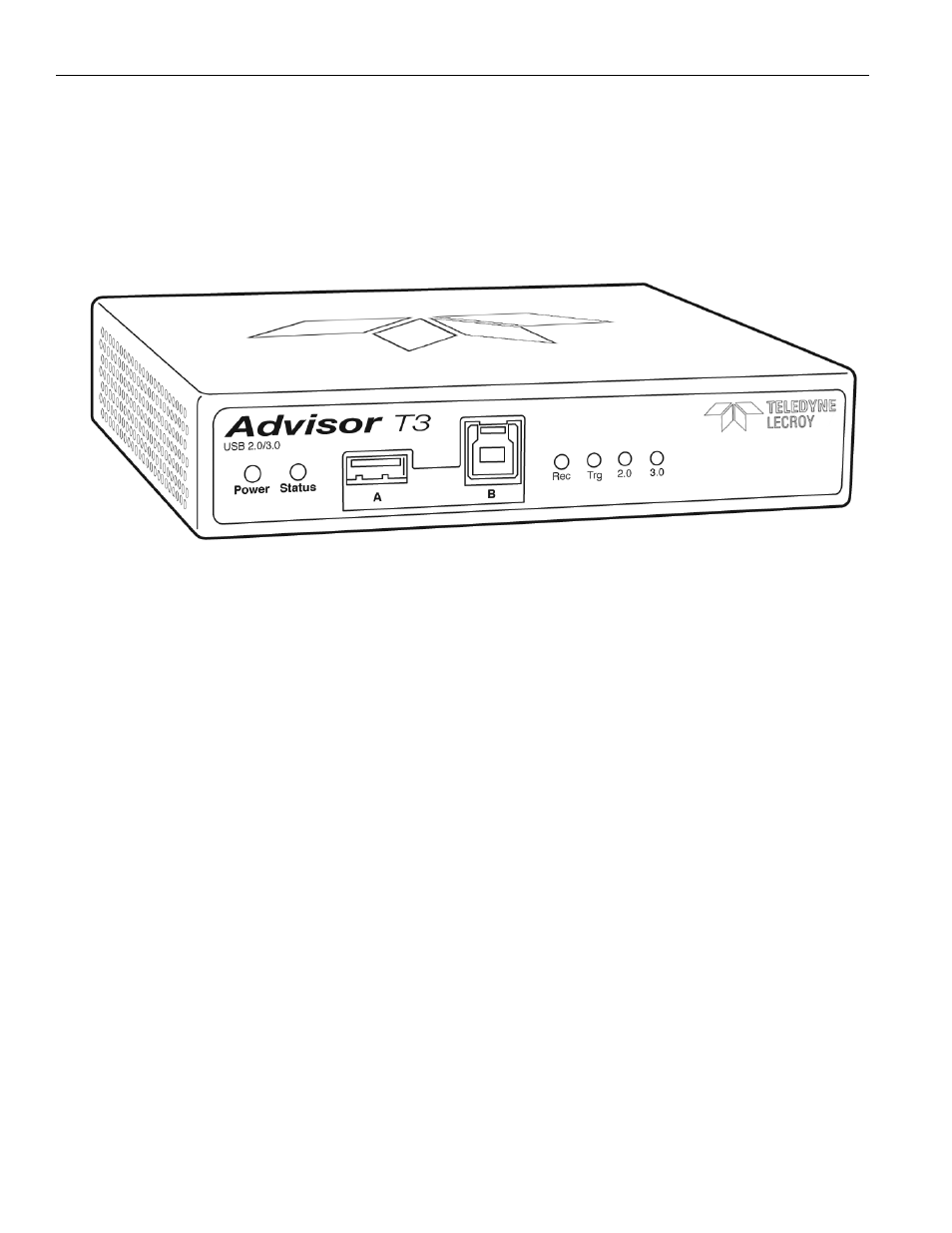

Figure 1.5: Advisor T3
The system can monitor traffic between USB 2.0 links using standard high‐speed
compliant cables.
If configured for USB 3.0 testing, the system supports monitoring between SuperSpeed
links using USB 3.0 cables.
Please see the Readme file on the installation CD for the latest information on host
machine requirements and supported operating systems.
1.3.1 General Description
The Analyzer connects to a portable or desktop host machine through its USB port. The
host machine configures and controls the Analyzer. The “CATC Trace™” user interface is
an industry standard for documenting the performance of high‐speed serial protocols.
The USB protocol Analyzer provides traffic capture and analysis. Hardware triggering
allows capture of real‐time events. Hardware filtering allows filtering different packet
types in or out of the recording. Filtering also allows you to preserve recording memory,
for extended recording time.
The trace viewer application displays recorded data in colored graphics. The application
has advanced search and viewing capabilities that allow you to quickly locate specific
data, errors, and other conditions.
The system functions with any host machine having the Microsoft
®
Windows
®
XP,
Windows 8, or Windows 7 (32 or 64) operating system and a functional USB interface.
