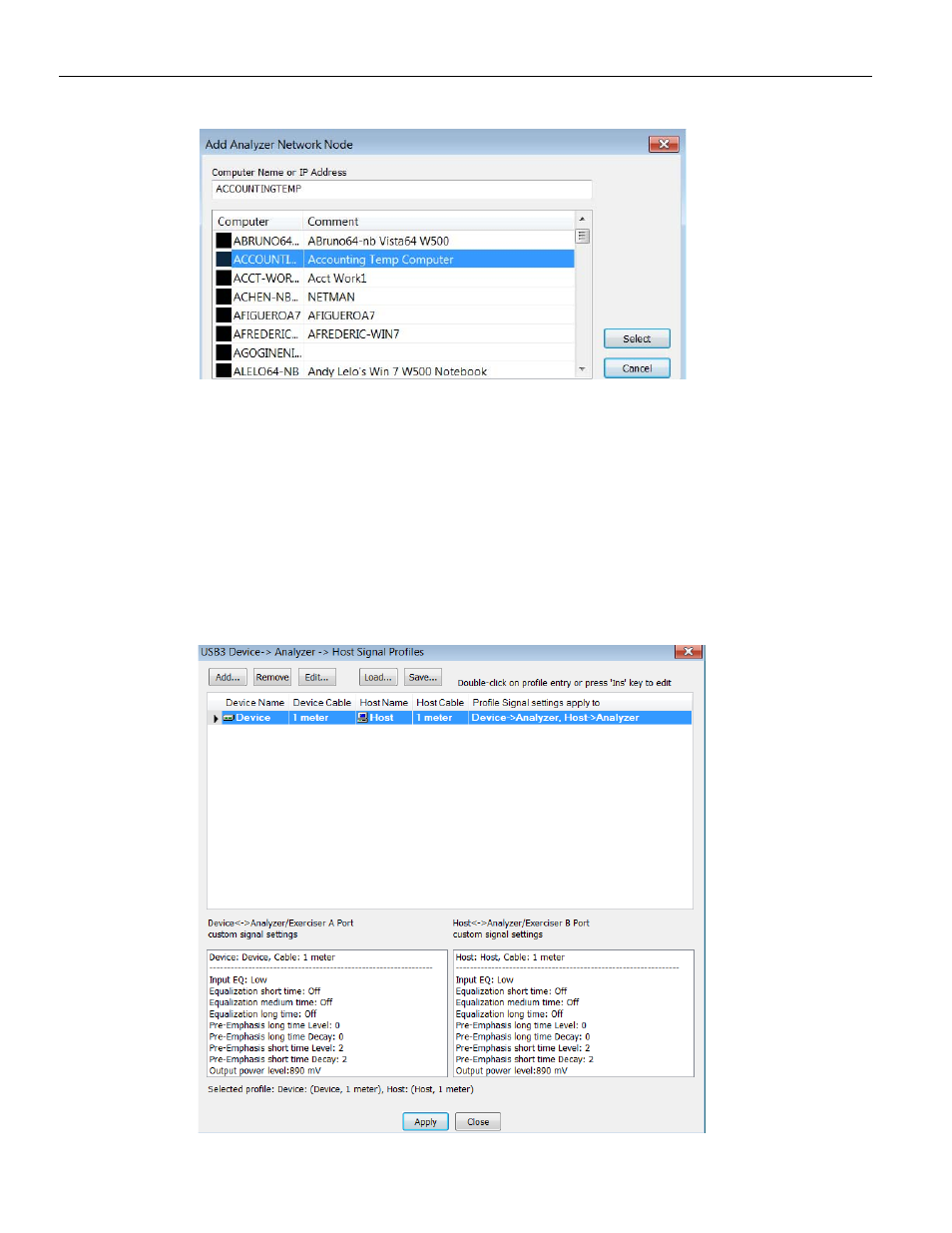

Figure 3.6: Add Analyzer Network Node Dialog

You can also Remove a selected host machine or Reconnect a selected host machine.

3.5.5

USB 3.0 Device/Host Signal Parameters (Voyager M3, M3i, Advisor T3 and
M3x)

For USB, to add, remove, edit, load (from a comma‐delimited .csv file), or save (as a
comma‐delimited .csv file) USB 3.0 devices and to calibrate USB 3.0 connections, select
Setup > USB 3.0 Device/Host Signal Parameters to display the USB 3.0 Device ‐> Analyzer
‐> Host Signal Profiles dialog.

Figure 3.7: USB 3.0 Device Analyzer Host Signal Profiles Dialog
