Teledyne LeCroy Corporation Recording Options ‐ Misc. USB 3.0 for Advisor T3
280 USB Protocol Suite User Manual
10.5 Recording Options - Misc. USB 3.0 for Advisor T3
The Misc. USB 3.0 tab presents options for setting Descrambling, Termination/RxDetect,
Polarity Inversion, Simple Filters, and Truncate Data Fields.

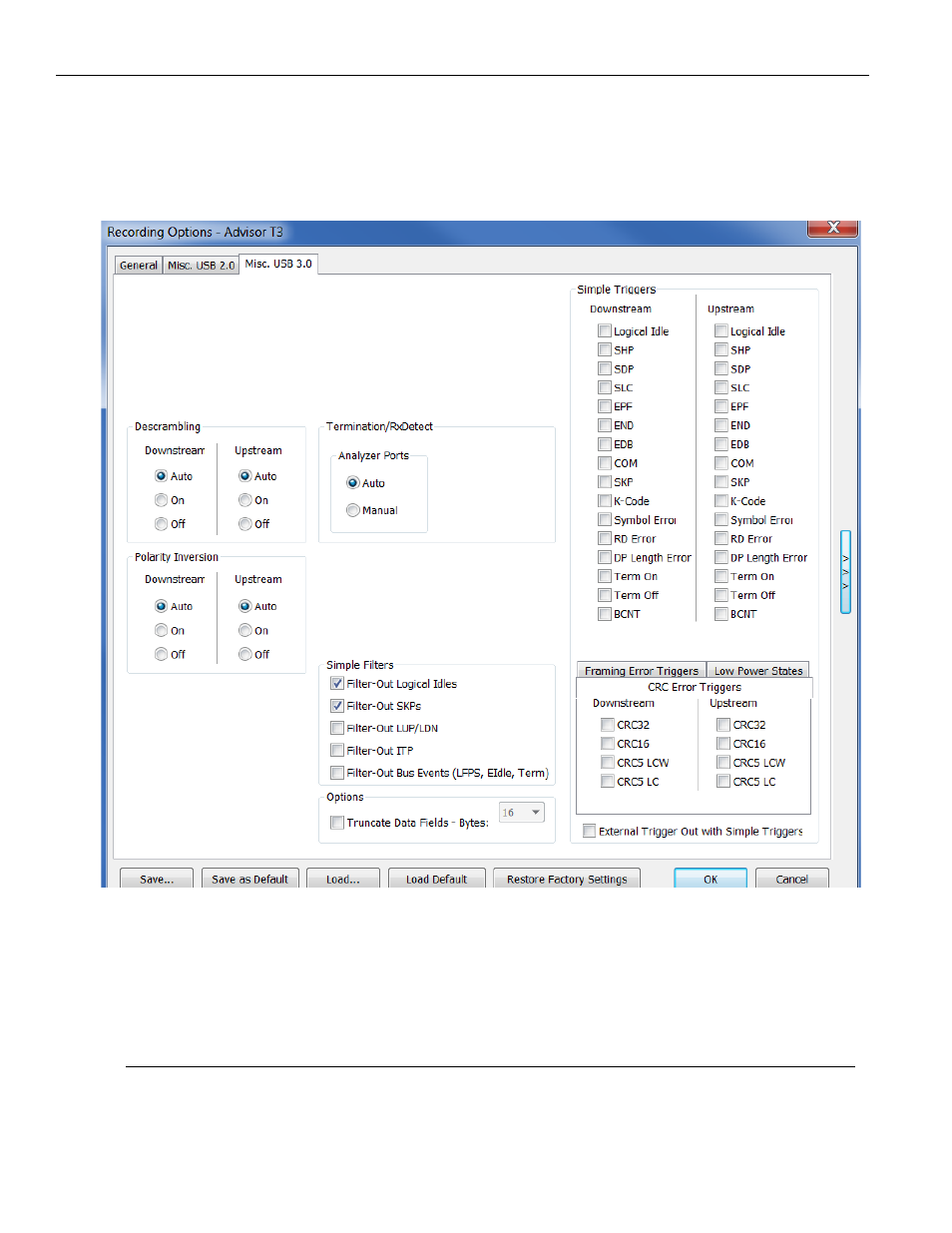

Figure 10.13: For Descrambling, Downstream and/or Upstream, select On, Off, or Auto.
For Termination/RxDetect you can select Auto or Manual for Analyzer Ports and Enable
RxDetect for Exerciser Ports.
For Analyzer Ports, if you select the Manual mode, the Term button in the toolbar is
enabled. For more information about the Recording buttons, see
“Recording” on
page 86 .
Note: The Auto RxDetect mode has been designed to recognize 3.0 hosts and devices and present 3.0
terminations to them when they are plugged in. However, some cases have timing that can
cause the Host and Device not to connect or to go into USB 2.0 mode. If either of these timing
