Creating Traffic Generation Files
Teledyne LeCroy Corporation
You can open a generation file with Notepad or other editor and then add or remove text
as needed.
11.4.1
Creating a Traffic Generation File with the Export Command
The Export command offers an easy alternative method of creating a generator file. This
command converts the trace to a *.utg file, removes all device traffic, and leaves only the
traffic from the host device. You can then use this file to emulate the host and determine
whether the device under test is generating the correct traffic.
When creating a .utg file through the Export Packets to Text (Generator Text File Format)
menu selection, it is suggested that you use the default values presented. Adding NAK
transactions clutters the .utg file, and including the device side packets creates a .utg file
which does not work with a real device attached.
To use the Export command:
1. Start the application.
2. Open a trace that has the pattern of traffic that you would like to generate.
3. Select File > Export from the menu bar to display the File Export menu:

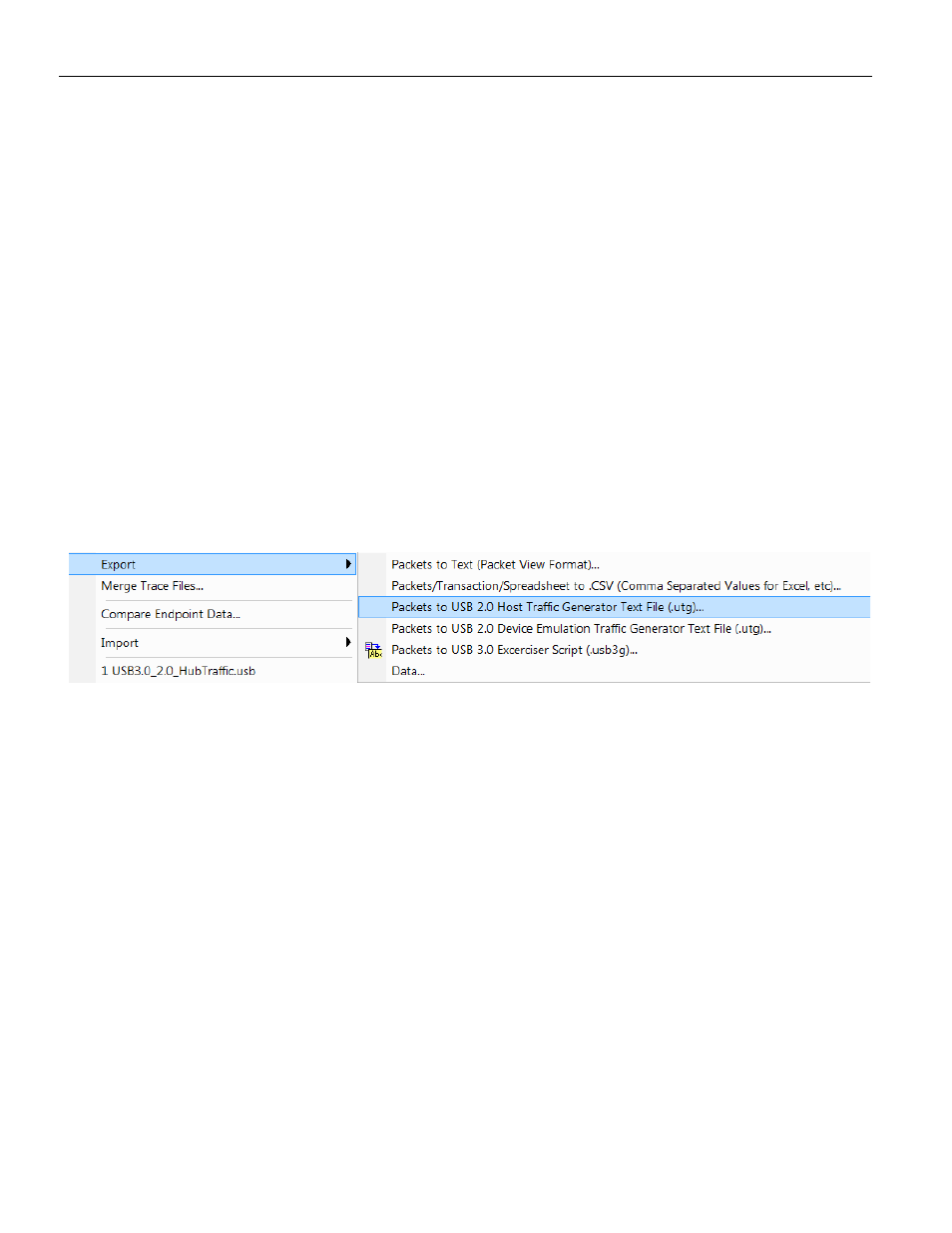

Figure 11.6: File Export Menu
4. Select Packets to Host Traffic Generator Text File from the Export drop‐down menu.
You see the Export to Generator Text dialog (
).
