Recording Options ‐ Misc. USB 3.0 for Voyager

274

USB Protocol Suite User Manual

Note:

Truncation of data may cause incorrect transaction or transfer decoding.

10.4

Recording Options - Misc. USB 3.0 for Voyager

The Misc. USB 3.0 tab presents options for setting Recording Ports, Descrambling,
Polarity Inversion, Spread Spectrum Clock, Recording/Generating, Simple Filters and
Truncate Data Fields, Simple Triggers, Clock/Speed Selection, and M3i Connector
Termination/RxDetect.

Note:

Voyager M3x does not support Port Configurations nor Very Slow Clock modes.

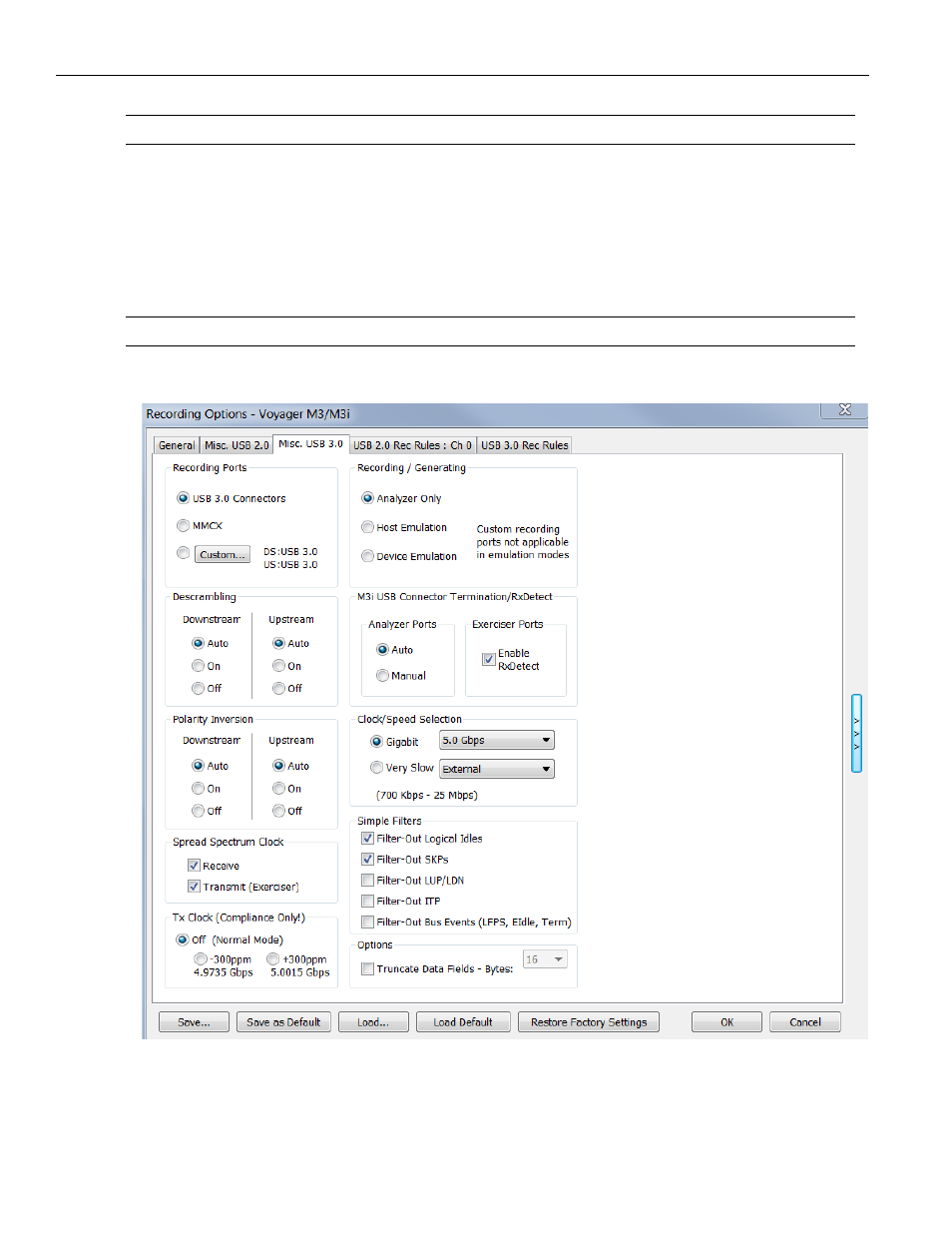

Figure 10.11: Recording Options - Misc. USB 3.0 for Voyager M3 and M3i
