Teledyne LeCroy Corporation General Recording Options
266 USB Protocol Suite User Manual
10.2.1 Product
You can select one of the following products:
 Voyager
 Advisor T3
 Mercury T2
 Voyager M3x
 USBTracer/Trainer*
 USB Advisor*
 USBMobile HS and USBMobile T2*
* These analyzers are no longer formally supported and tested beginning in release 4.70,
although nothing was done to prevent them from still working. See “USBTracer/Trainer,
USB Advisor, USBMobile HS and USBMobile T2” on page 53 for more information.
10.2.2 Trigger Mode
The Trigger Mode box presents three options that allow you to set how the Analyzer
begins and ends a recording.

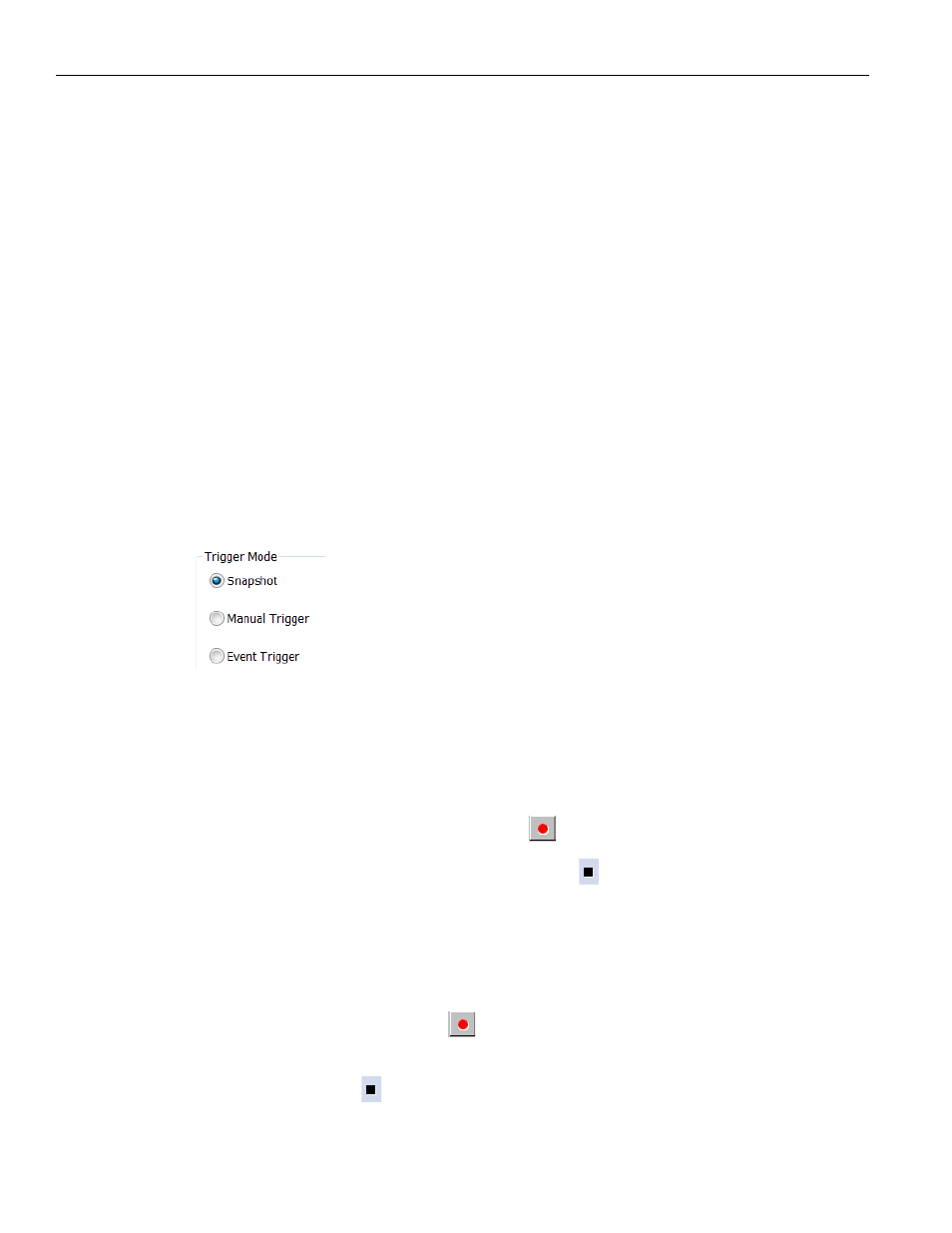

Figure 10.9: Trigger Mode Dialog
The options are: Snapshot, Manual Trigger, and Event Trigger.
Snapshot
A Snapshot is a fixed‐length recording. The size of this recording is set by
the Buffer Size box. Recording begins when is clicked and ends
when either the selected buffer size is filled or the button is pressed.
Manual Trigger
Some Teledyne LeCroy analyzer models include a manual trigger button on the front
panel of the system. The manual trigger option can be used when you elect to initiate the
recording by pressing the manual trigger button.
Recording begins when you click on the Tool Bar. Recording continues in a circular
manner within the limits set by the buffer size.
Recording ends when is clicked on the Tool Bar or after post‐trigger memory has been
filled following depression of the trigger button on the front panel.
