Teledyne LeCroy Corporation USB 3.0 Electrical Test Modes
380 USB Protocol Suite User Manual
To test a USB Device, in the Recording/Generating section, select Host Emulation
mode.
To test a USB Host, or the downstream port of a USB 3 hub, select Device Emulation
mode.
In the M3i USB Connector Termination/RxDetect section, in the Analyzer Ports
subsection, select Manual termination.
Click the OK button to apply the options.
3. After you set up the system, make sure that the USB cable is NOT plugged into
Voyager, and then select USB 3.0 Electrical Test from the View menu.

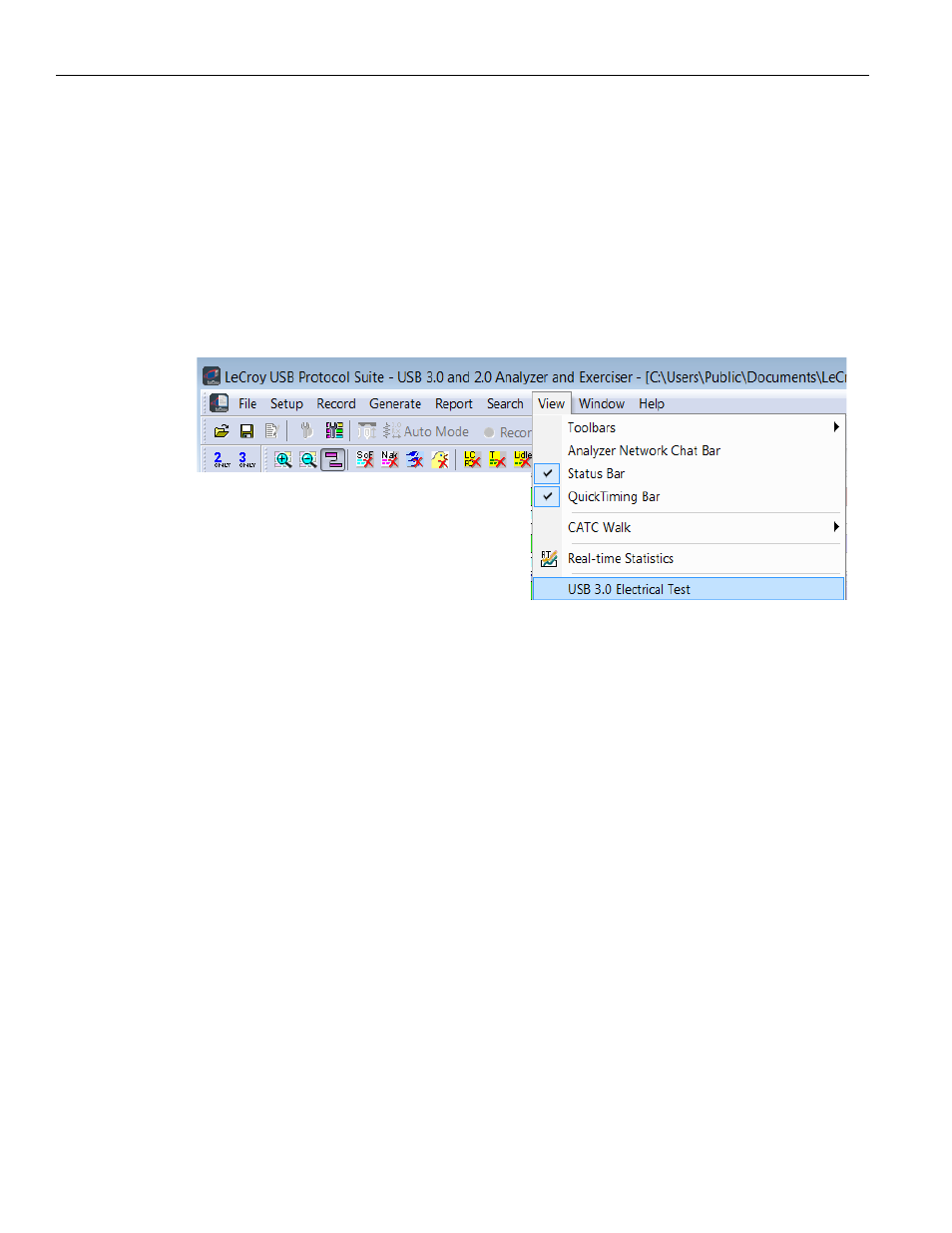

Figure 12.21: View Menu
4. In the USB 3.0 Electrical Test dialog, check the Compliance Mode box (see
Figure 12.22 on page 381 .)
