Teledyne LeCroy Corporation Mercury T2
46 USB Protocol Suite User Manual
2.3 Mercury T2
The LeCroy USB Mercury T2™ USB 2.0 Protocol Analyzer is a verification system for USB
development and testing. It supports USB 2.0. It is designed to record USB traffic and
graphically present the logical transactions and events. It connects to a laptop or desktop
host machine via USB 2.0. The Mercury T2 is powered by the USB cable, so no additional
power cord is needed.
2.3.1 Components
The Teledyne LeCroy Mercury T2 Analyzer package includes the following:
 One Teledyne LeCroy USB Mercury T2 Analyzer
 USB cables (three)
 Installation CD‐ROM, including documentation
 Quick Start Guide
2.3.2 Front Panel

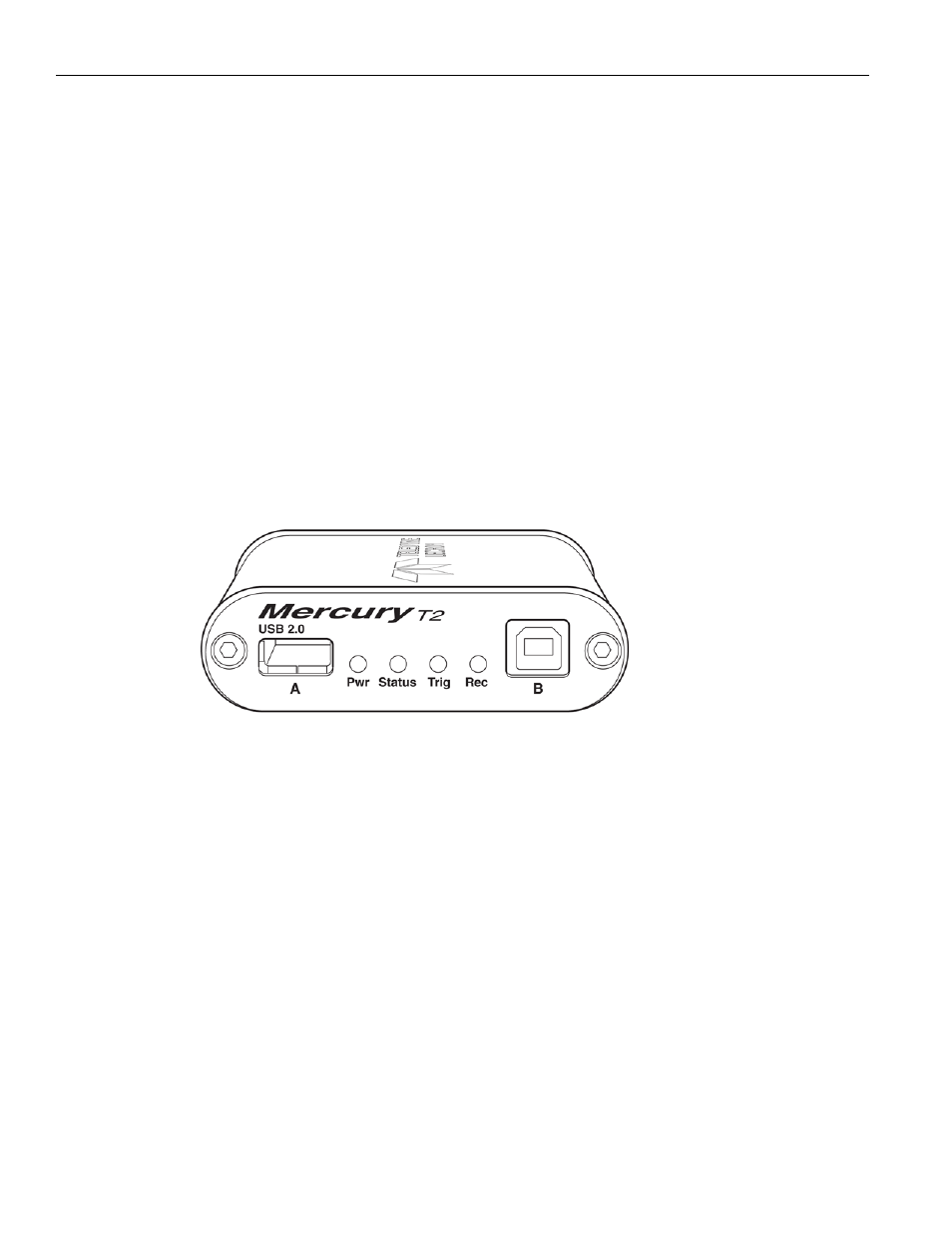

Figure 2.5: Mercury T2 Front Panel
The front panel has the following indicators and connectors:
Power LED Green if powered on by rear USB Host connection
Status LED Blue if system successfully initializes.
Red while booting. If red for more than a minute,
hardware failure.
Green while initializing
Analyzer Port A (downstream) Connects to Device under test.
Analyzer Port B (upstream) Connects to Host under test.
Analyzer LEDs
Rec
Recording (red if recording enabled)
Trig Trigger (green if triggering)
