126 USB Protocol Suite User Manual

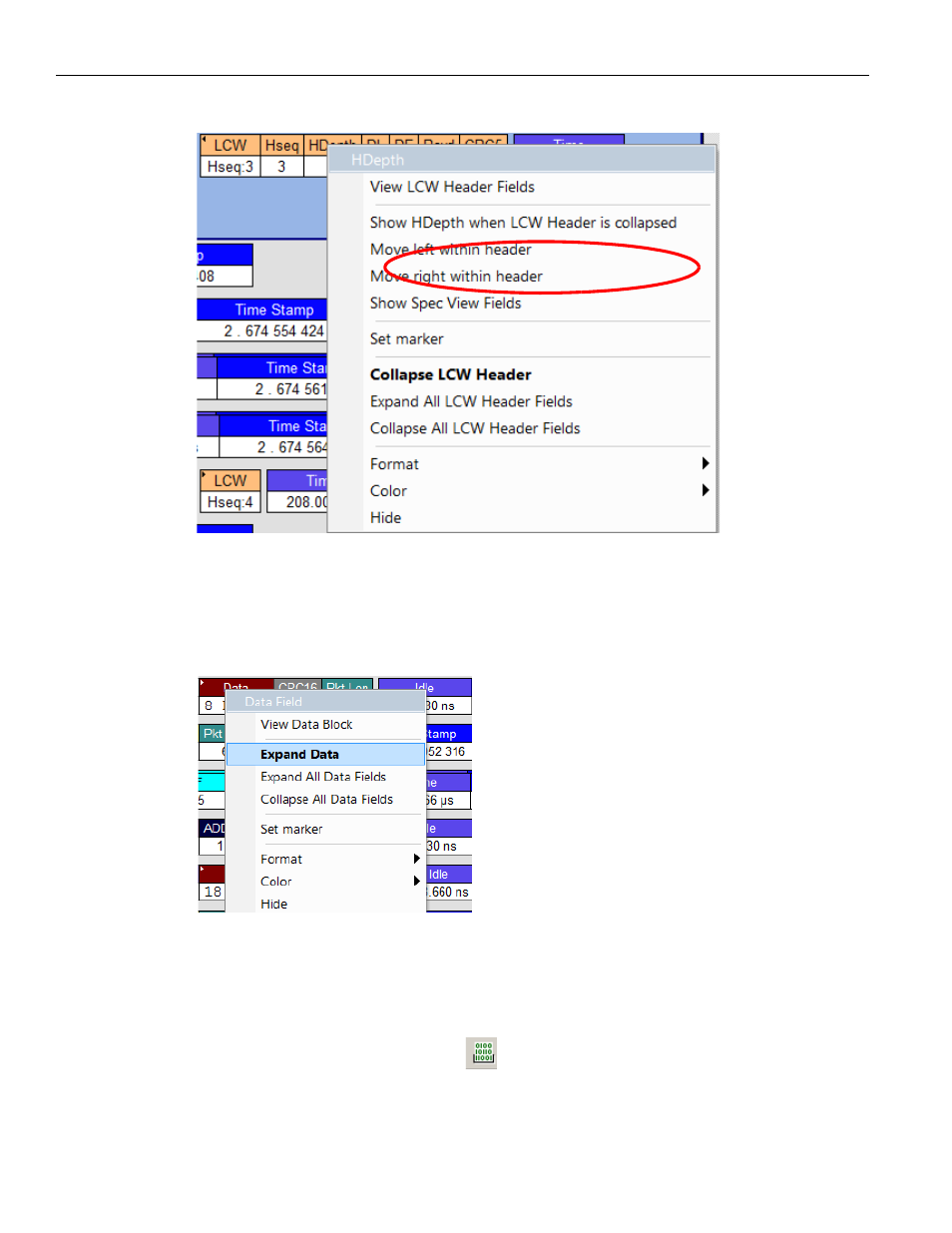

Figure 5.25: Hide/Show Field
5.8 View Data Block
The data field pop‐up menu has an option for viewing the raw bits in a data field.
Figure 5.26: View Data Block Pop-up Menu
To view these bits:
1. Click the data field to open the data field pop‐up menu.
2. Select View Data Block or the Data View button to open the Data Block dialog
box (see Figure 5.27 on page 127 ).
