Cascading with CATC SYNC Expansion Card

USB Protocol Suite User Manual

3.4.2

Removing Expansion Cards

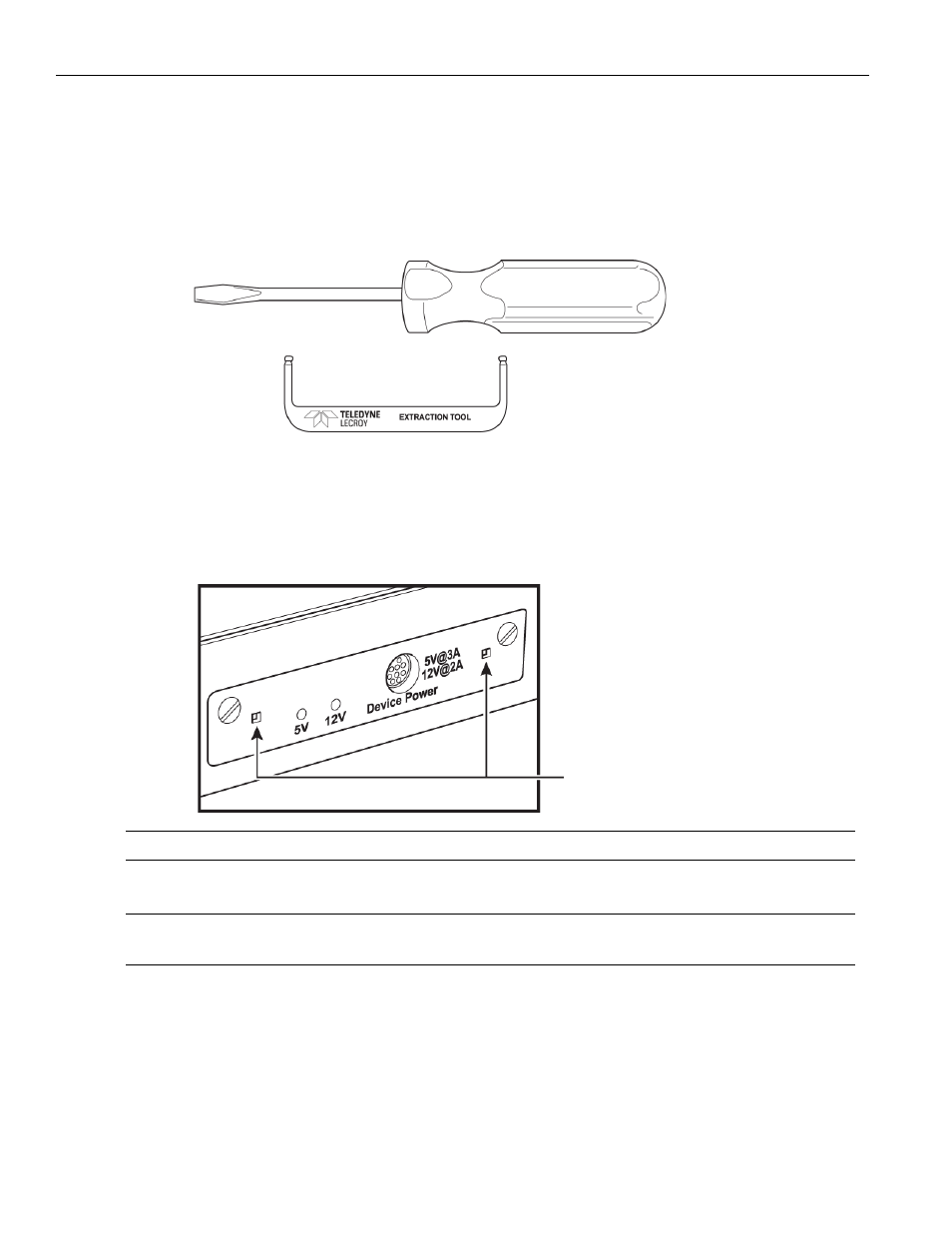

You can remove expansion cards using two tools:



Standard (flat blade) 3/16” screwdriver



Teledyne LeCroy Extraction Tool (part number 230‐0160‐00)

To remove an expansion card, follow these steps:

1. Unplug the system from AC power and turn the system so the expansion port is

facing you. Note the two retaining screws and the holes for the extraction tool that
are located on the panel of the expansion card.

Note:

The example shows a different expansion card, but the removal method is the same.

2. Insert the extraction‐tool prongs into the holes in the expansion card panel.

Note:

If the prongs do not slip easily into the holes, use a small nail file or similar device to remove

paint from the prongs.
