USB Protocol Suite User Manual 247
Power Tracker Teledyne LeCroy Corporation
Note: To enable LTSSM buttons, open the Display Options dialog. In the General tab, check the
Process USB 3.0 LTSSM checkbox. Click Save As Default. Reopen the trace file.
9.13 Power Tracker
Note: Power Capture can only be enabled on licensed M3i versions of Voyager.
The Power Tracker displays the power, voltage, and current at each time.
Select Report > Power Tracker, or click to display the Power Tracker.

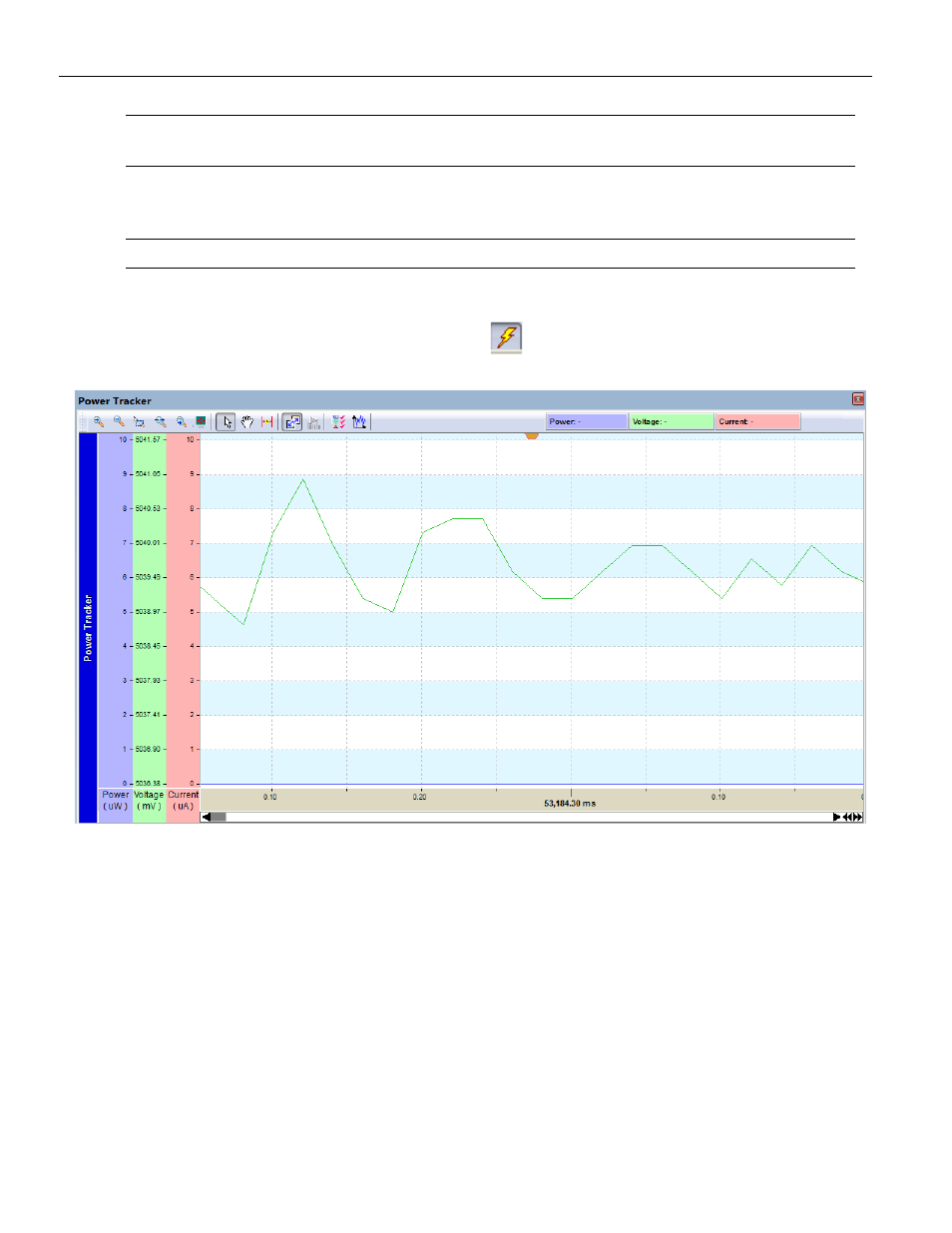

Figure 9.33: Power Tracker
If you select Power Tracker from the Report menu, you can select Hide, Full Screen, Sync
by Time, or Real Time Monitor (see
“Power Tracker Toolbar” on page 248 ).
The left side shows power, voltage, and current levels. Right‐clicking a column allows you
to select the vertical‐scale origin. The origin is 0 or near the minimum measurement
value.
The horizontal axis shows time in milliseconds. You can navigate with the slider. The slider
sets the left vertical line. The distance to the right dashed vertical line represents the
sampling interval.
You can use time markers to measure times in this view. To delete markers, right‐click the
marker and select Delete Marker(s).
