5.12 Display 3 Only
Click the button to display only USB 3.0 traffic.
5.13 Hiding Items Indicators
Items can be hidden individually as well as in groups. The Icons change to reflect the state
of hiding of the items.
The Red " X " indicates that an item or group of items is hidden. A Clear "X" indicates that
an item or group of items is shown (not hidden). See Figure 5.31 on page 129 .

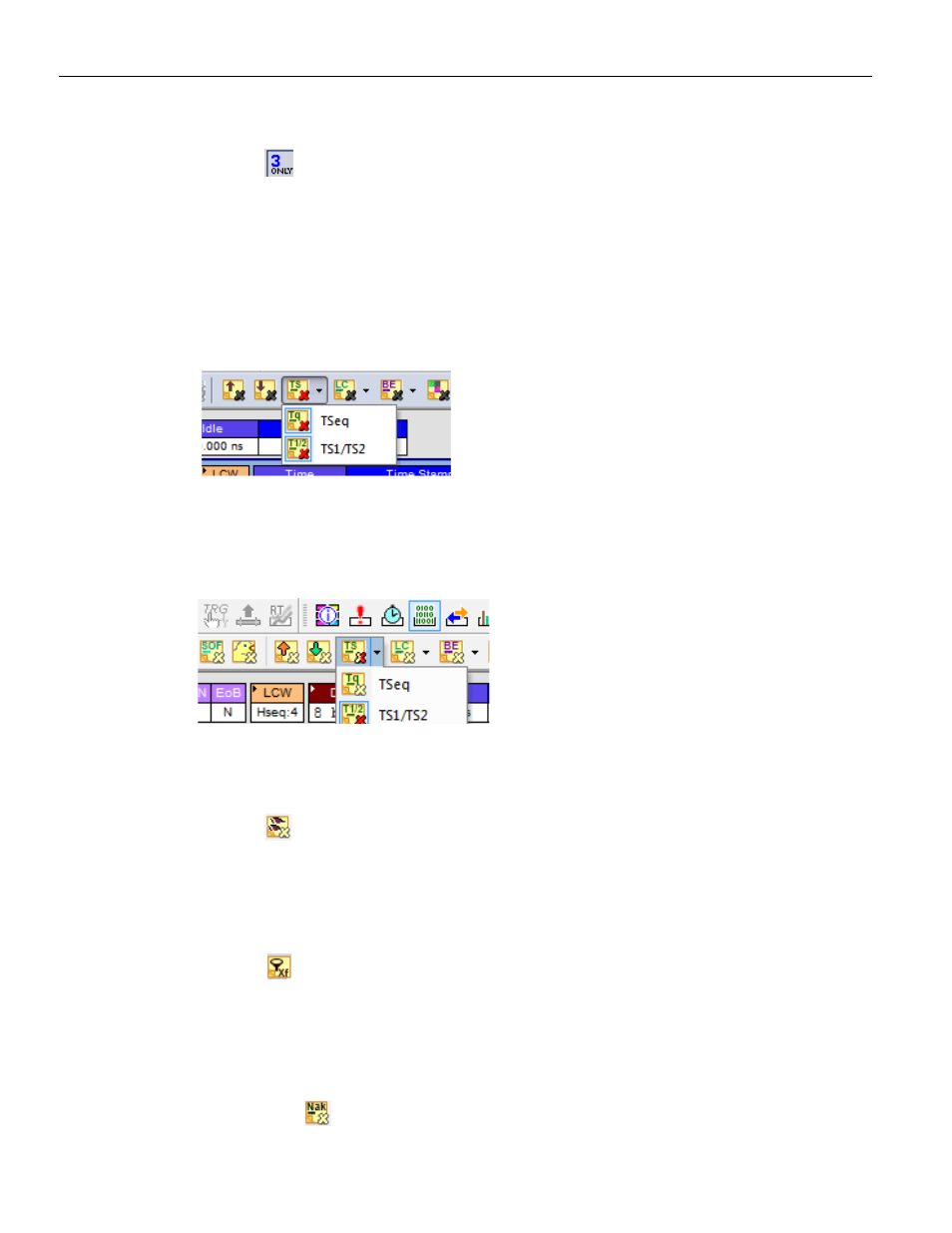

Figure 5.31: Hidden/Shown Items
If all the items in a group do not have the same Hidden state, then the "X" will be shown
as half Clear and half Red.
Figure 5.32: All Items not in Hidden State
5.14 Hide Devices
Click the button to open a menu for select any address/endpoint combination to be
hidden. Click the Control (CTRL) key to select multiple values. This menu can be moved
from its default location and floated in the trace window for later use.
5.15 Hide All Packets Except Transfers Packets.
Click the button show/hide All Packets Except Transfers Packets.
5.16 Hide NAKs
You can hide NAKs that may be uninteresting in a given context from a Trace View by
clicking the Hide NAKs button on the Tool Bar:
 Click to hide all NAK packets.
