2.2 Advisor T3
The Teledyne LeCroy USB Advisor T3™ USB 3.0 Protocol Analyzer is a verification system
for USB development and testing. It supports both USB 2.0 and USB 3.0. It can record USB
traffic and graphically present the logical transactions and events. It connects to a laptop
or desktop host machine via USB 2.0.
The system can monitor traffic between USB 2.0 links using standard high‐speed
compliant cables.
If configured for USB 3.0 testing, the system supports monitoring between SuperSpeed
links using USB 3.0 cables.
2.2.1 Components
The Teledyne LeCroy Advisor T3 Analyzer package includes the following:
 One Teledyne LeCroy USB Advisor T3 Analyzer
 DC Power Adaptor
 USB cables (three)
 Installation CD‐ROM, including documentation
 Quick Start Guide
 Carrying Case
2.2.2 Front Panel

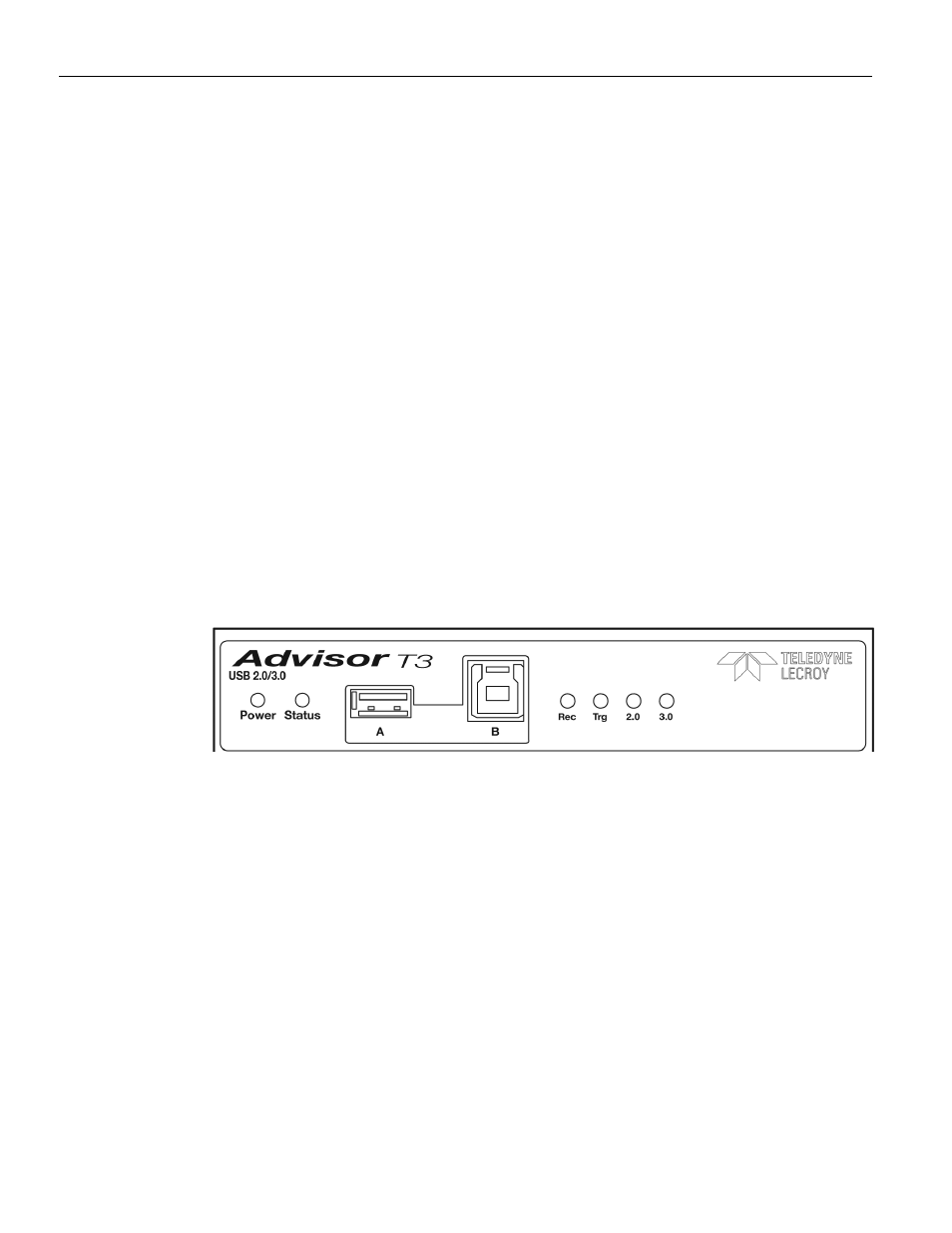

Figure 2.2: Advisor T3 Front Panel
The front panel has the following indicators and connectors:
Power LED Green if on
Status LED Blue if system successfully initializes.
Red while booting. If red for more than a minute,
hardware failure.
Green while initializing
Analyzer Port A (downstream) Connects to Device under test.
Analyzer Port B (upstream) Connects to Host.
Analyzer LEDs
Rec
Recording (red if recording enabled)
Trig Trigger (green if triggering)
2.0 USB 2.0 (yellow for Low and Full Speed)
(green for Hi Speed)
3.0 USB 3.0 (green if link is up; flashes green while data transfers;
yellow if polling)
