USB Protocol Suite User Manual 151
Go To USB 2.0 Teledyne LeCroy Corporation
2. Select the desired packet from the displayed list. The Trace View is repositioned with
the selected packet at the top of your screen. The resulting item will be shown as
selected in the view.
Note: The Go to Marker feature functions in conjunction with the Set Marker feature. The comments
within the parentheses following each marked packet are added or edited with the Set Marker
feature. Please refer to
“Markers” on page 106 .
You can use Ctrl+M to go immediately to the All Markers dialog.
Packet Selection works with Go to Marker.
6.5 Go To USB 2.0
The Go To USB 2.0 feature takes you directly to an event in a Trace.
1. Select Go To USB 2.0 under Search on the Menu Bar to display the Go To USB 2.0
drop‐down menu. For USB 2.0 data, the menu is:

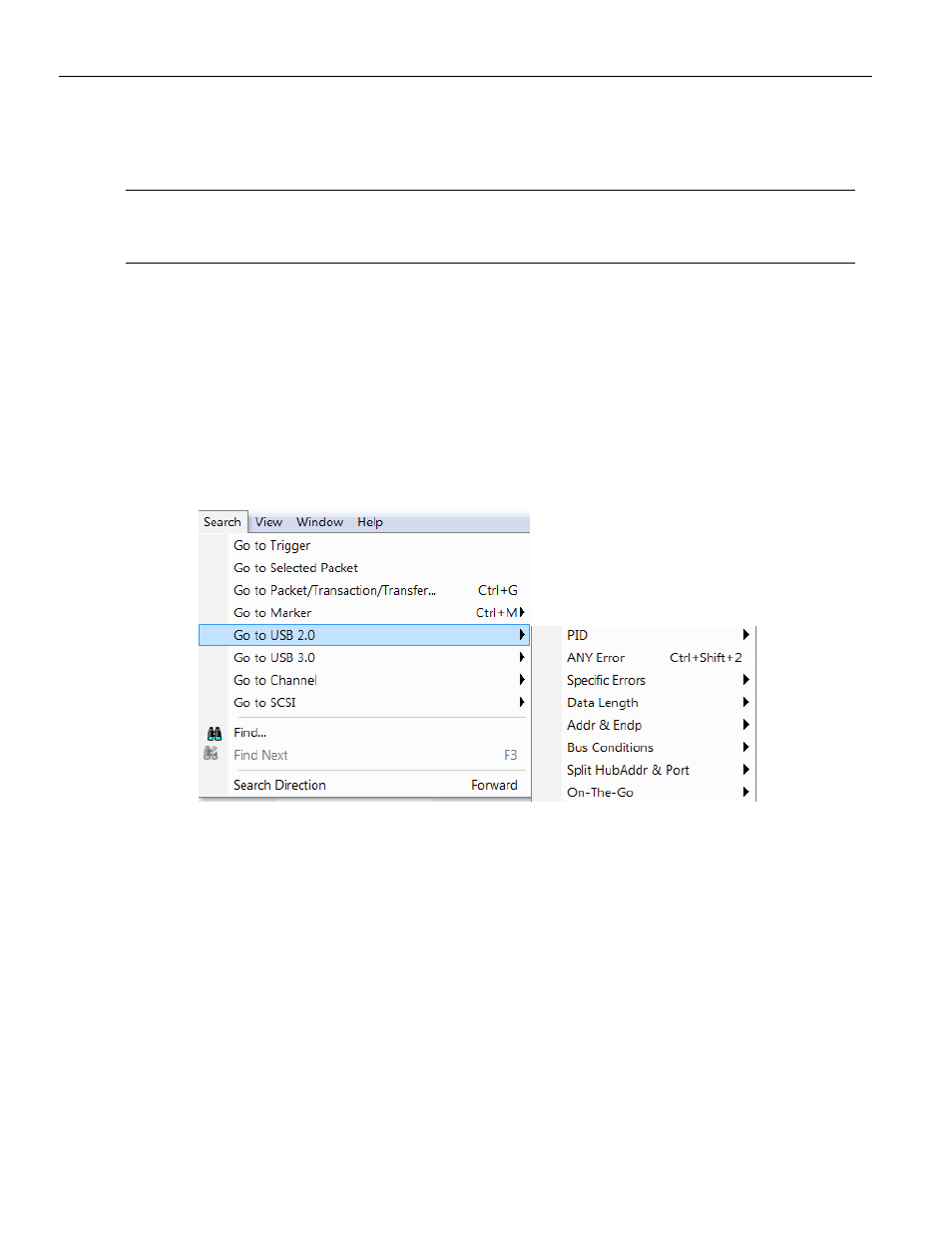

Figure 6.4: Go To USB 2.0 Menu Option
2. Select the event you want to go to and enter the necessary information.
The resulting item will be shown as selected in the view.
