11.5.4 File Tabs
At the bottom of the window is a tab that shows the name of the .utg file. If your .utg file
has an Include statement in it, the supporting Include files automatically open when the
.utg file is first opened. Tabs for the opened Include files appear at the bottom of this
window.

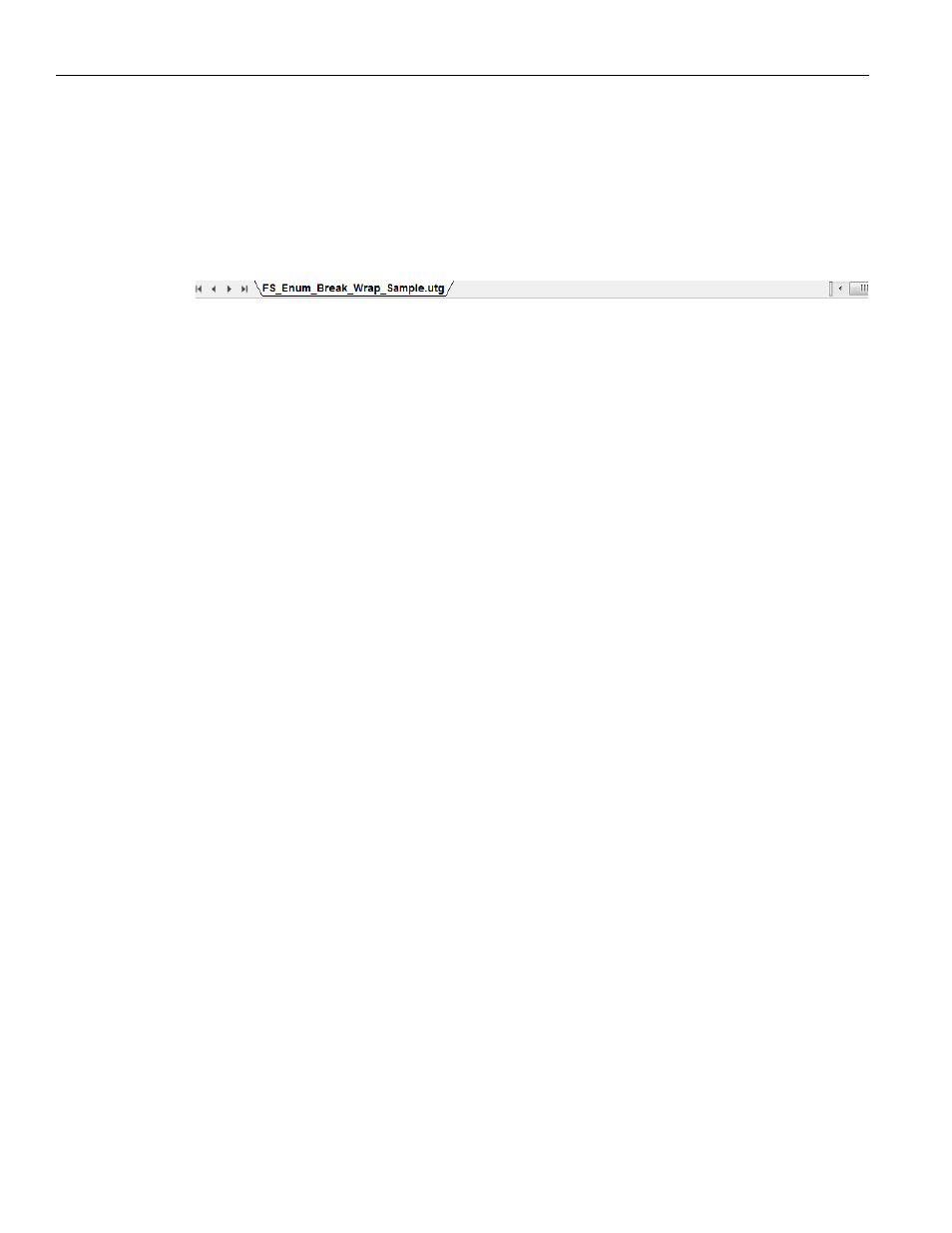

Figure 11.11: File Tabs
11.5.5 Error Log
Whenever you create a scripting error, a log opens at the bottom of the application
window. When the error is corrected, the window automatically closes.
11.5.6 Tooltips
The Script Editor window includes extensive tooltips for each keyword. To see a tooltip,
hold the mouse pointer over a keyword.
11.6 Loading the Generation File
The USB Traffic Generation files are scripts that instruct the Analyzer how to generate
USB traffic. A traffic generation file contains text in special format and is named with a
*.utg extension. These files can be created by any text editor, or using the File > Export >
Packets to 2.0 Host Traffic Generator Text File (.utg)..,
menu selection when viewing a
Trace File. There are several examples of Traffic Generation files included with the
installation of the software.
To load a generation file:
1. Select File > Open ... from the menu to display the Open dialog (see Figure 11.12 on
page 325 ):
