Teledyne LeCroy Corporation Timing Calculations
220 USB Protocol Suite User Manual

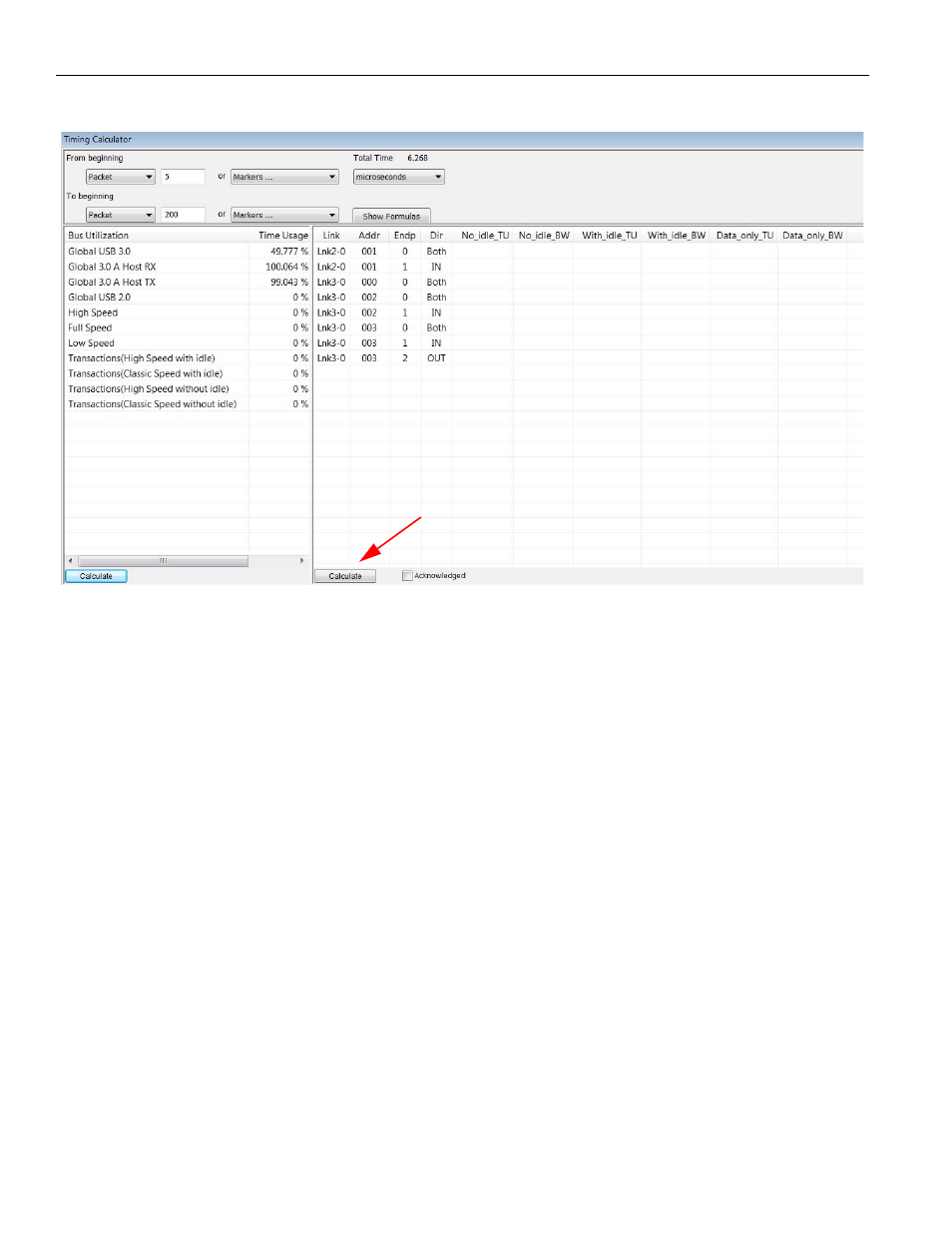

Figure 9.9: Timing Calculator Report
Total Time is in the Total Time field.
7. Click Calculate (see red arrow in the figure above) in the right side to display:
 Address
 Endpoint
 Direction
 No Idle Time Usage
 No Idle Bandwidth
 With Idle Time Usage
 With Idle Bandwidth
 Data only Time USage
 Data only Bandwidth
You can also click the Acknowledged checkbox.
