USB Protocol Suite User Manual 195
Class/Vendor Decoding Options Teledyne LeCroy Corporation
The Transfer Type options for both IN and OUT endpoint are:
 Isochronous
 Bulk
 Interrupt
5. Select the transfer Type.
The selections displayed in the Class/Vendor Endpoint Decoding drop‐down menu
depend on the transfer Type selected.
6. Enter the size in the Max Pkt. Size field.
7. Select an endpoint.
8. Display the Class/Vendor Endpoint Decoding drop‐down menu (see
Figure 8.5 on
page 195 ):

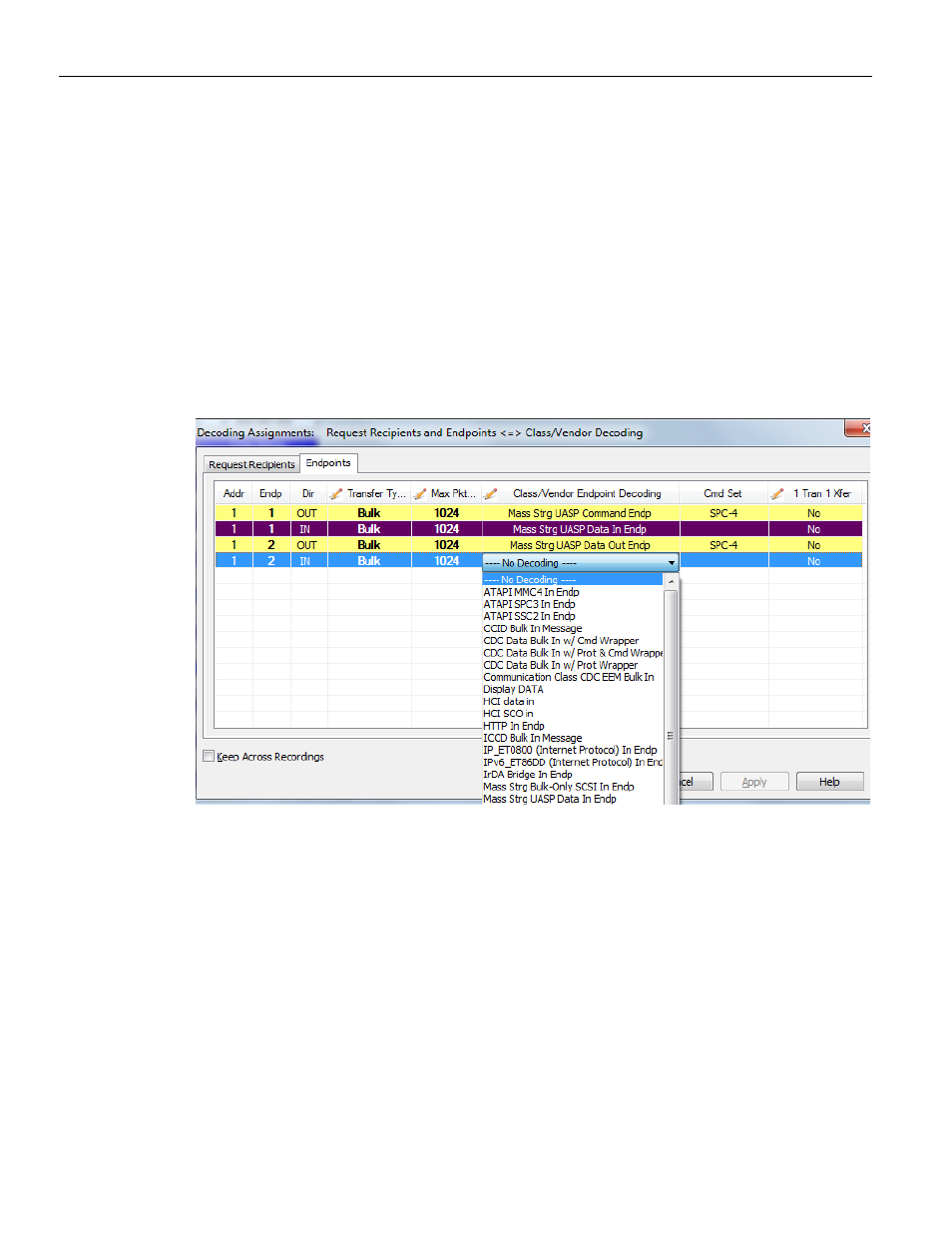

Figure 8.5: Class/Vendor Endpoint Decoding Drop-down Menu.
The Isochronous Transfer Type and Interrupt Transfer Type options for an OUT endpoint
are:
 No Decoding
 CDC Data Isoch Out w/CMD Wrapper
 CDC Data Isoch Out w/Prot & CMD Wrapper
 CDC Data Isoch Out w/Prot Wrapper
 Video Isoch Out
The Class/Vendor Endpoint Decoding options for an OUT endpoint for Bulk Transfer Type
are:
 No Decoding
 ATAPI MMC4 Out Endp
 ATAPI SPC3 Out Endp
 ATAPI SSC2 Out Endp
