216 USB Protocol Suite User Manual
9.3.2 USB 3.0 Errors
The figure below and the table following it list and describe the USB 2.0 errors.

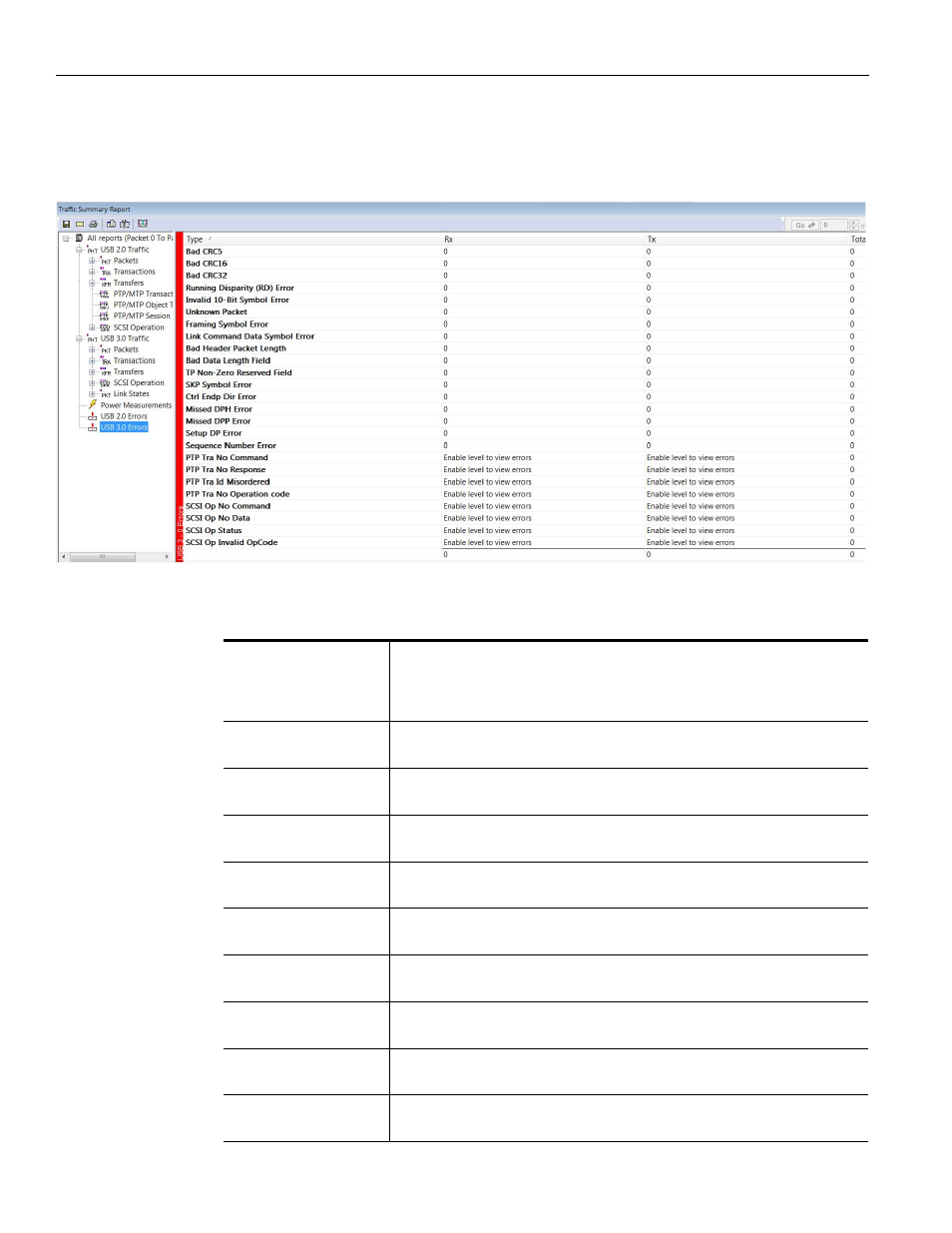

Figure 9.6: Traffic Summary Report (USB 3.0)
The following table lists each USB 3.0 error type and its description.
Error Type Error Description
Bad CRC5
The CRC5 field has an incorrect value. The packet is corrupt
(either the data or the CRC itself).
Bad CRC16
The CRC16 field has an incorrect value. The packet is corrupt
(either the data or the CRC itself).
Bad CRC32
The CRC32 field has an incorrect value. The Packet is corrupt
(either the data or the CRC itself).
Running Disparity
(RD) Error The symbol captured has an incorrect number of "1" bits than
expected by following the 10‐bit symbol encoding rules.
10‐bit Symbol Error
(Inv Sym) An illegal/undefined 10‐bit symbol pattern was detected. Not
all combinations of 10‐bits are legal in this 8B/10B scheme.
Unknown Packet
The type of the packet declared in the header is not supported
in the USB 3.0 Specification.
Framing Symbol
Error The sequence of framing symbols found is not supported by
the USB 3.0 Specification.
Link Command Data
Symbol Error A data field in the link command has an incorrect symbol
value.
Bad Header Packet
Length
Header Packet has a length other than 16 bytes.
Bad Data Length
Field The Data Packet Header has a wrong value in the Data Length
field.
