Recording Rules ‐ USB 3.0 (Voyager/Advisor T3 only) Teledyne LeCroy Corporation
Event Properties
The Event Properties dialog lists the Properties and their Values (see “Events and Event
Properties for USB 2.0” on page 292 ).
Note: The Header Pattern tab is different for the USB 3.0 recording rules.

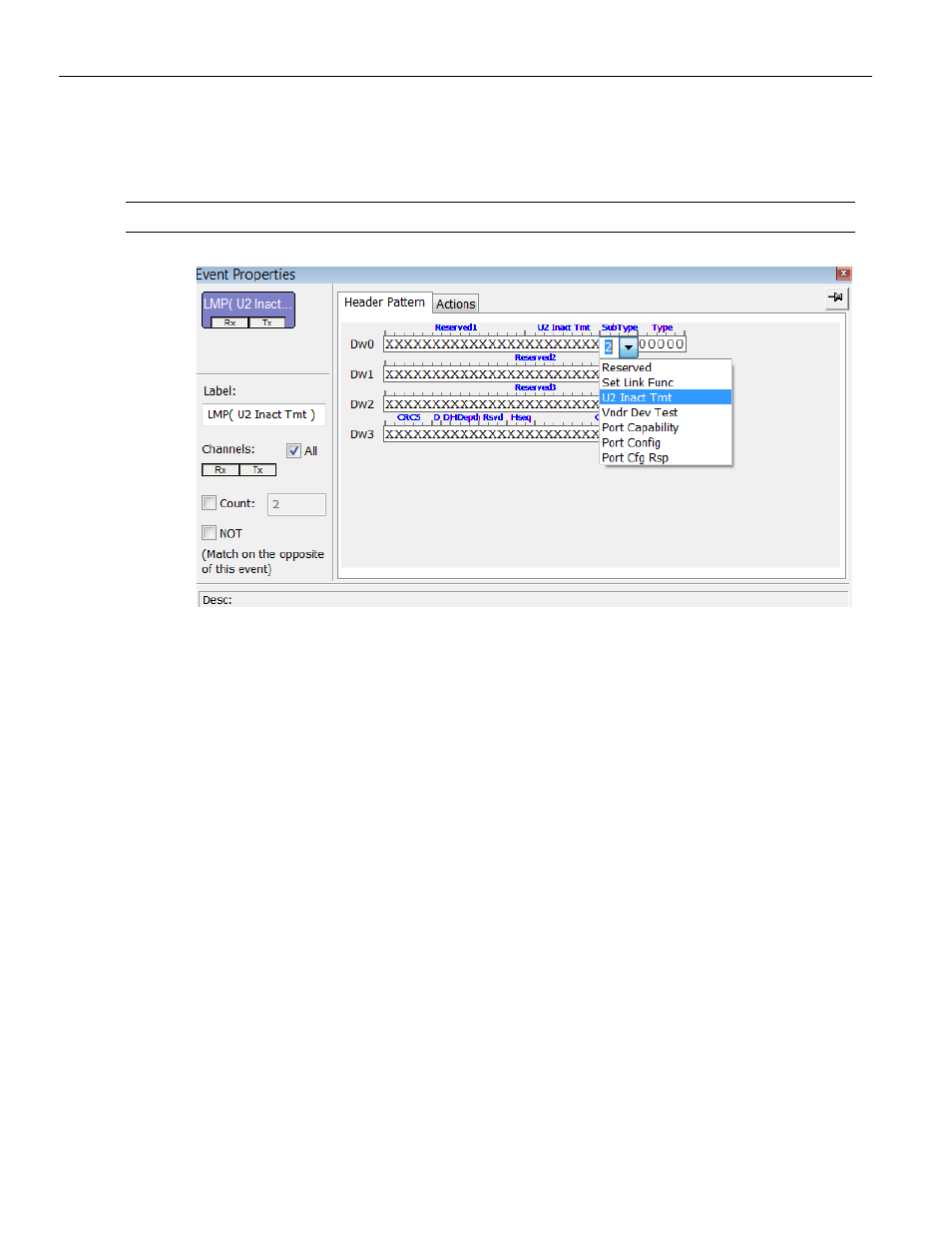

Figure 10.29: Event Properties - Header Pattern Dialog
Most fields are mask and match. The Type and Subtype fields have drop‐down menus.
You can set the Subtype to:
 Reserved
 Set Link Func
 U2 Inact Tmt
 Vndr Development Test
 Port Capability
 Port Config
 Port Cfg Rsp
