Note: You cannot place the Zero Time Stamp at a packet when in the Calendar.
You can also go to the Time After in seconds, or the Time Before in seconds.
Note: Time stamps are corrected to match our more accurate 2.5 ppm clock. After the error due to
calculating via 2 ns nominal timing of symbols reaches 8 nsec, the system will correct the next
time stamp by using the value obtained from the 2.5 ppm time stamp clock. This can result in
“jumps” either forward or backward by this amount of time in captures, and may result in
“blank” locations in the Link Tracker view. These should not be construed as mistakes in the
traffic, but as a modification necessary for us to provide the most accurate time stamps over the
range of a trace.
You can also create a new marker by selecting Set marker.
5.5 View Raw Bits (2.0)
You can expand a specific packet to view the raw bits in detail.
To view raw bits:

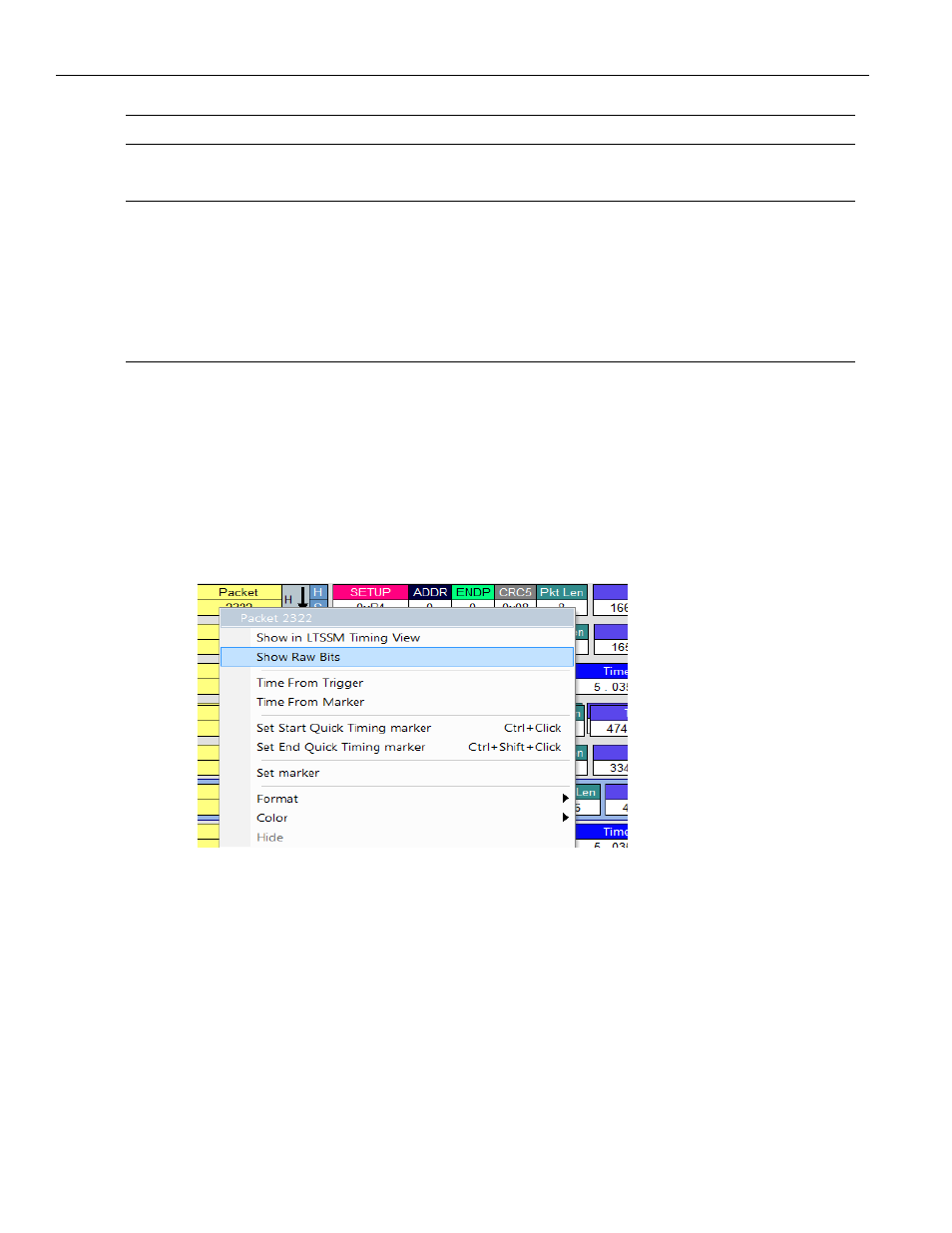

1. Right‐click Packet # for the packet to view, to display the Packet menu:
2. Select Show Raw Bits to display the Raw Bits View for that packet:
