Voyager M3, M3i and Advisor T3
The dialog lists the Device Name, Device Cable, Host Name, Host Cable, and to what the
Profile Signal Settings apply. It also shows Device‐to‐Analyzer and Host‐to‐Analyzer
custom signal settings.
To add a device, click Add to display the USB 3.0 Device ‐> Analyzer ‐>
Host Signal Parameter Profiles dialog.

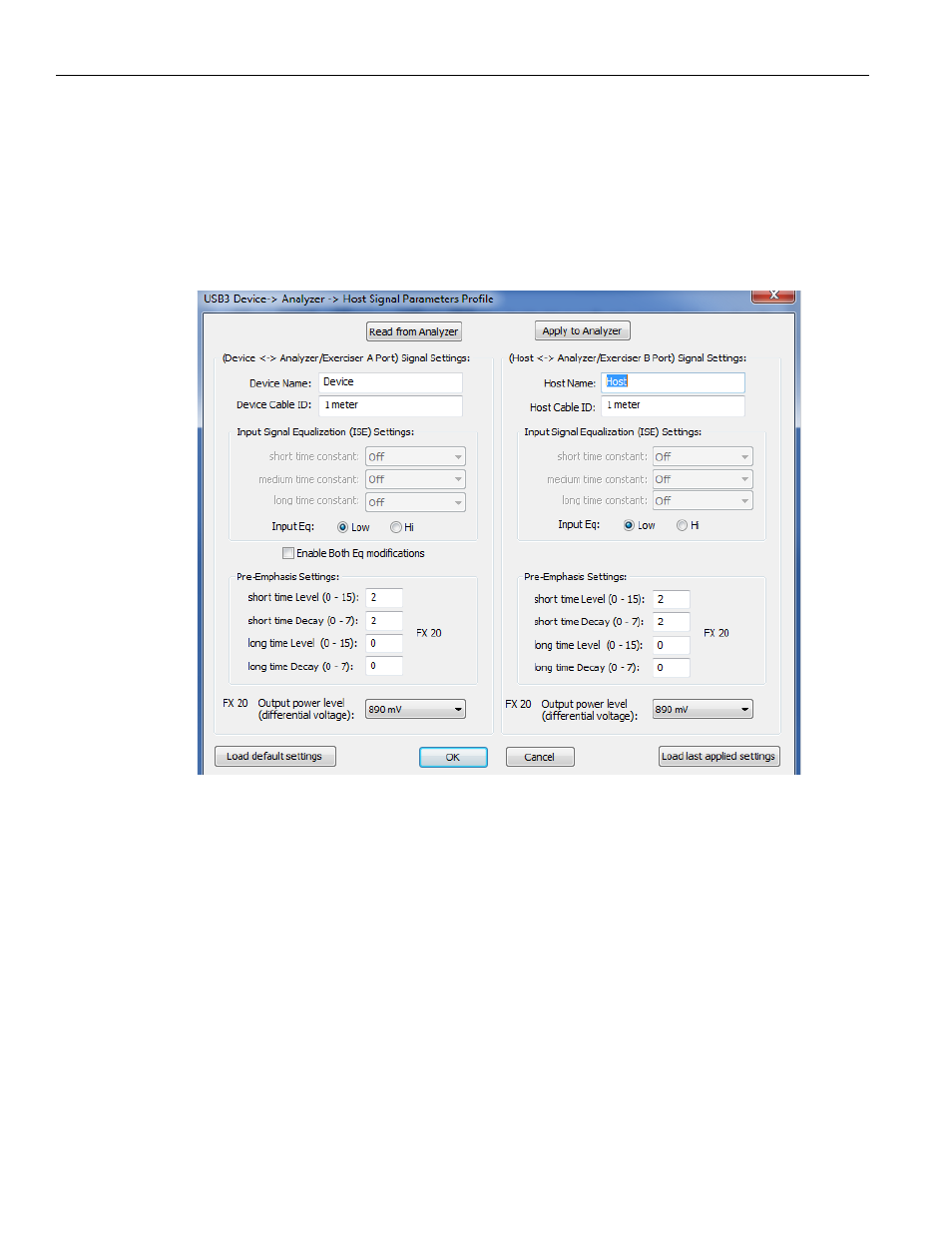

Figure 3.8: USB 3.0 Device Analyzer Host Signal Parameters Profile Dialog Voyager M3, M3i,
Advisor T3
The dialog allows you to Read from Analyzer.
The dialog allows you to Apply to Analyzer.
You can enter Device to Analyzer Signal Settings:
 Device Name
 Device Cable ID
 Input Signal Equalization (ISE) Settings: Short, medium and long time constant
(Current, Off, Minimum, Moderate, or Maximum)
 Pre‐Emphasis Settings: Short and long time level (0 to 15) and 
short and long time decay (0 to 7)
 Output Power Level: Current, or 213 mV to 1294 mV
 You can enter Host to Analyzer Signal Settings:
 Host Name
 Host Cable ID
