Teledyne LeCroy Corporation Voyager M3x Analyzer
34 USB Protocol Suite User Manual

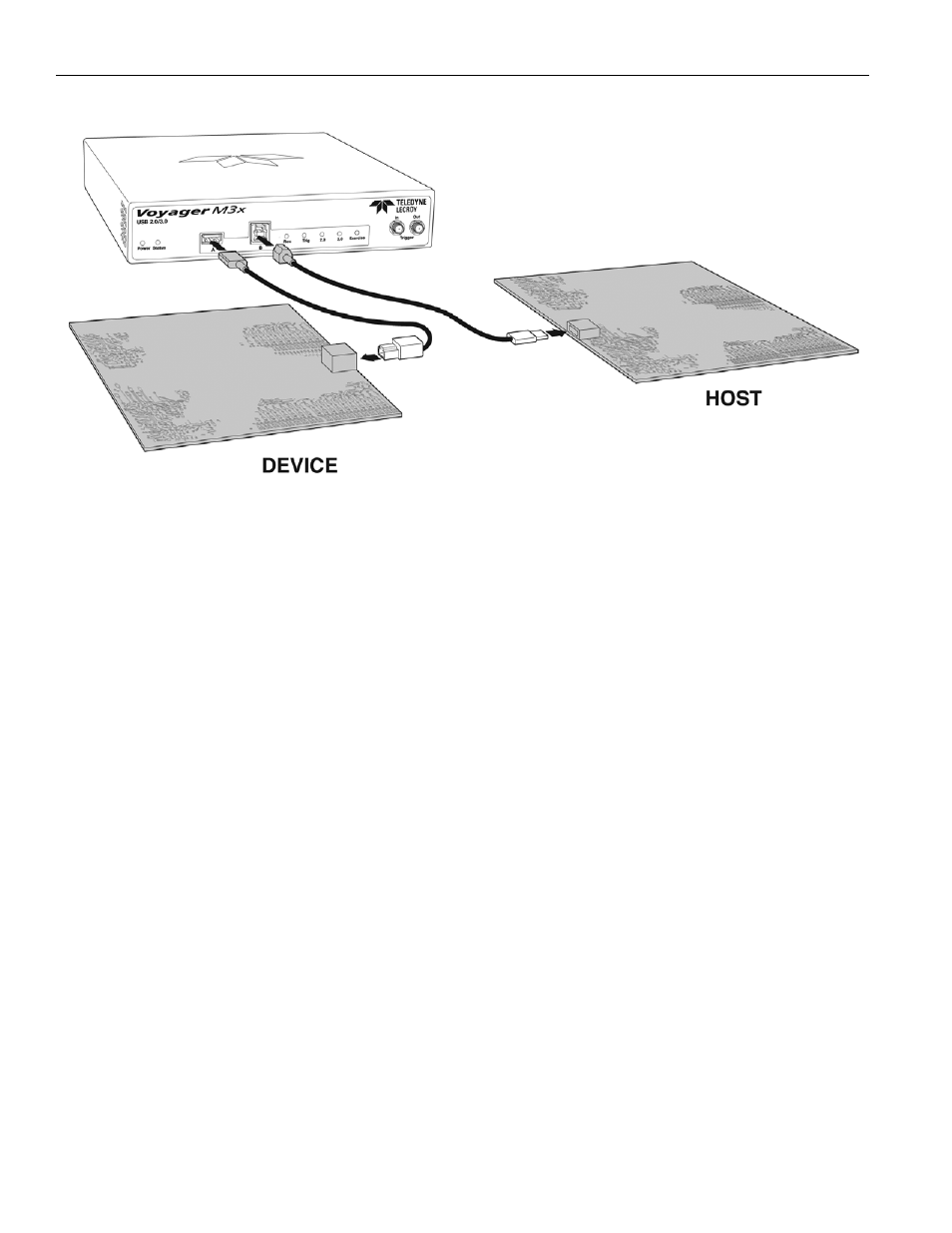

Figure 1.8: Direct Connection using USB 3.0 Cables
1.5.2 General Description
The Analyzer connects to a portable or desktop host machine through the USB port. The
host machine configures and controls the Analyzer. The “CATC Trace™” user interface is
an industry standard for documenting the performance of high‐speed serial protocols.
The USB protocol Analyzer provides traffic capture and analysis. Hardware triggering
allows capture of real‐time events. Hardware filtering allows filtering different packet
types in or out of the recording. Filtering also allows you to preserve recording memory,
for extended recording time.
The trace viewer application displays recorded data in colored graphics. The application
has advanced search and viewing capabilities that allow you to quickly locate specific
data, errors, and other conditions.
The system functions with any host machine having the Microsoft
®
Windows
®
XP,
Windows 8, or Windows 7 (32 or 64) operating system and a functional USB interface or
Ethernet port.
The system provides on‐the‐fly detection of, and triggering on, such events as Tokens and
Errors. Whether recording manually or with a specified trigger condition, the system
continuously records the link data, in a wrap‐around fashion, until manually stopped or
until the system detects the Trigger Event and records the specified post‐trigger amount
of link data.
Upon detection of a triggering event, the Analyzer continues to record data up to a point
specified by you. You can individually enable or disable real‐time event detection to allow
triggering on events as they happen, including predefined exception or error conditions
and user‐defined sets of trigger events. An externally supplied signal can trigger the
Analyzer.
