152 USB Protocol Suite User Manual
6.5.1 Packet IDs (PIDs)

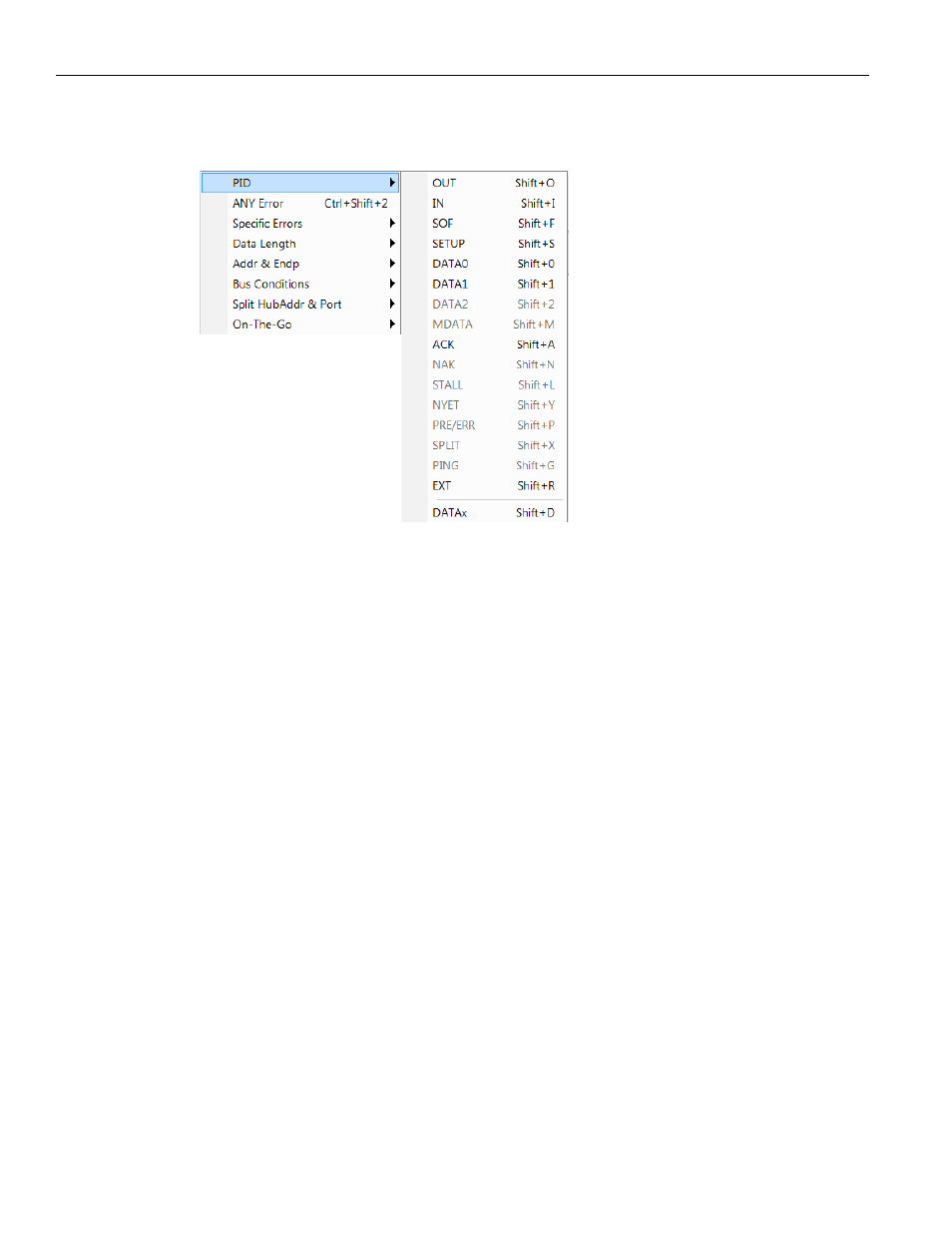

Figure 6.5: Packet IDs
Select the type of packet to which you want to go.
6.5.2 ANY Error
Repositions the trace to show the next instance of any error. You can press Ctrl+Shift+2 to
go to the first error of any type.
6.5.3 Errors
The Errors menu allows you to search for five different types of error: PID, CRC5, CRC16,
Packet Length, and Stuff Bits. Menu items appear in bold if they are present in the trace
or are grayed out if not present in the trace (see
Figure 6.6 on page 153 ).
