79
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
Step 2 Entering the HyperTerminal.
Open HyperTerminal in Windows after the connection has been established. The example
below is based on HyperTerminal that is included in Windows XP.

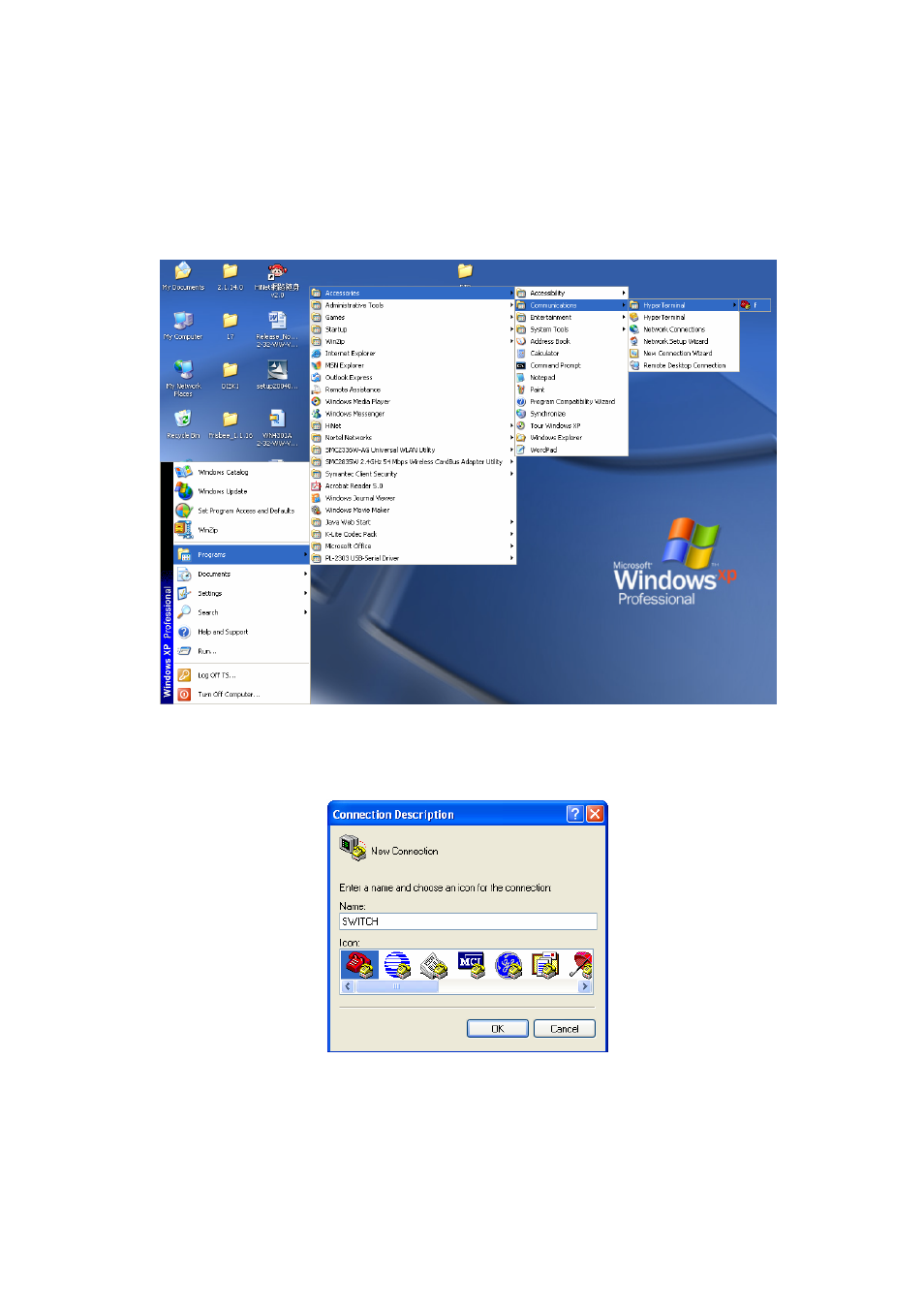

1) Click Start menu - Programs – Accessories – Communications - HyperTerminal
Fig 4-2 Opening HyperTerminal (1)
2) Type a name for opening HyperTerminal, such as “SWITCH”
Fig 4-3 Opening HyperTerminal (2)
3) In the “Connect To” drop-list, select the RS-232 serial port used by the PC, e.g., COM1, and click
“OK”.
