E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
12.5.1 Numeric standard ACL configuration

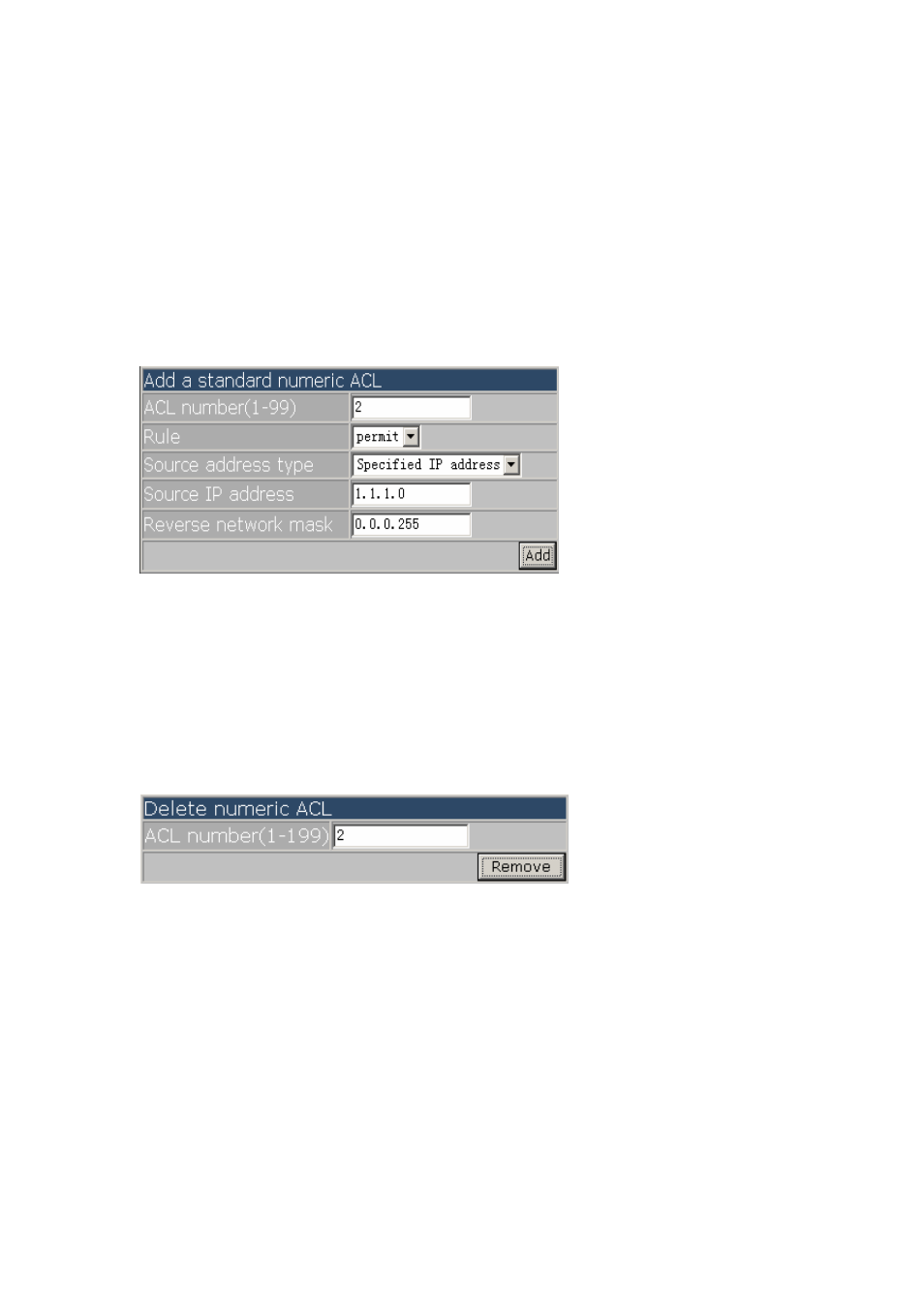

Click “Numeric ACL Configuration”, and then “Add Standard Numeric ACL” section to enter the
configuration page. Equals to its CLI command of 12.2.2.2. The explanations of each section are:
ACL number – 1- 99
Rule – permit or deny
Source address type – Specified IP address or any randomly allocated IP address
Source IP address
Reverse network mask
Specify the number in the ACL number section and the relative values in the other 4 sections, then
click “Add”, the users can then add the new Numeric Standard IP ACL.
12.5.2 Delete numeric IP ACL
Click “Numeric ACL Configuration”, and then “Delete Numeric ACL” section to enter the
configuration page, it is equals to CLI command of 12.2.2.1 and 12.2.2.2. The explanations of each
section are:
ACL number (1-199)
To delete the Numeric ACL, just simply specify the number of ACL and then click the “Remove”.
12.5.3 Configure the numeric extended ACL
There are several extended numeric extended ACLs available:
z Add ICMP numeric extended ACL
z Add IGMP numeric extended ACL
z Add TCP numeric extended ACL
z Add UDP numeric extended ACL
z Add numeric extended ACL for other protocols
By clicking the icons, it will enter the related configuration page which equals to its CLI command
of 12.2.2.1
