362
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

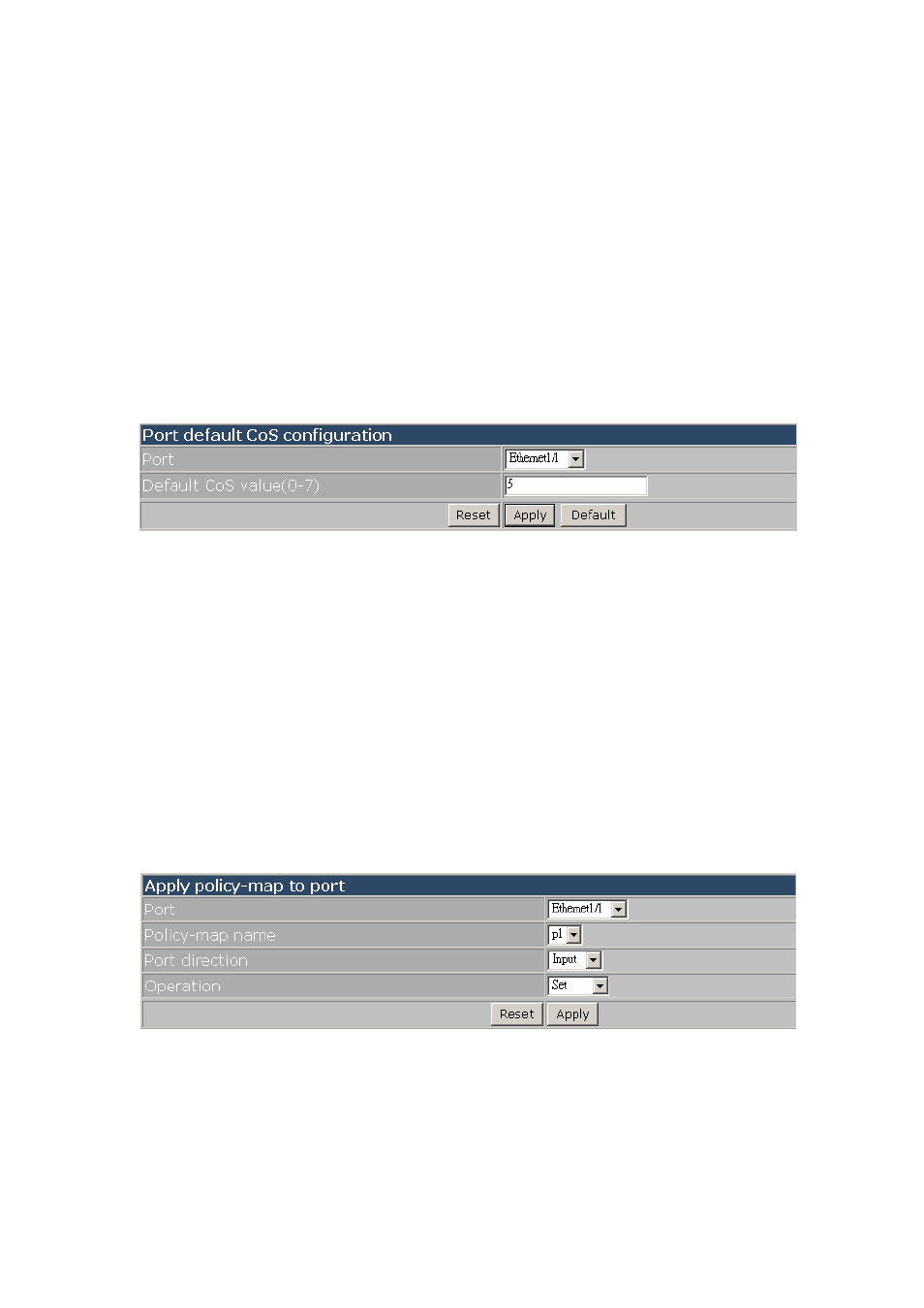

16.5.4.2 Port default CoS configuration
Click “Port default CoS configuration” to entry configure page. Equivalent to CLI command
16.2.2.11.
Terms are described as following:
z
Port
z Default CoS value－Startup CoS value
z Reset－Will set column as startup defaults. This command will not modify the configuration.
z Apply－Will take effort to all setting. This command will modify the configuration.
z Default－Will back to startup setting. This command will modify the configuration.
Example: Setting the CoS value as 5 in Ethernet port 1/1 and click Apply to finish.
16.5.4.3 Apply policy-map to port
Click “Apply policy-map to port” to enter the configuration page. Equivalent to CLI command
16.2.2.12.
Terms are described as following:
z
Port
z Policy-map name
z Port direction－Input or Output
z Operation－Set or Remove
z Reset－Will set column as startup defaults. This command will not modify the configuration.
z Apply－Will take effort to all setting. This command will modify the configuration.
Example: Choose Ethernet1/1 for port and p1 for policy-map; select Input for port direction and Set
for operation, then click Apply.
16.5.4.4 Apply DSCP mutation mapping
Click “Apply DSCP mutation mapping” to enter the configuration page. Equivalent to CLI
command 16.2.2.13.
Terms are described as following:
