199
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

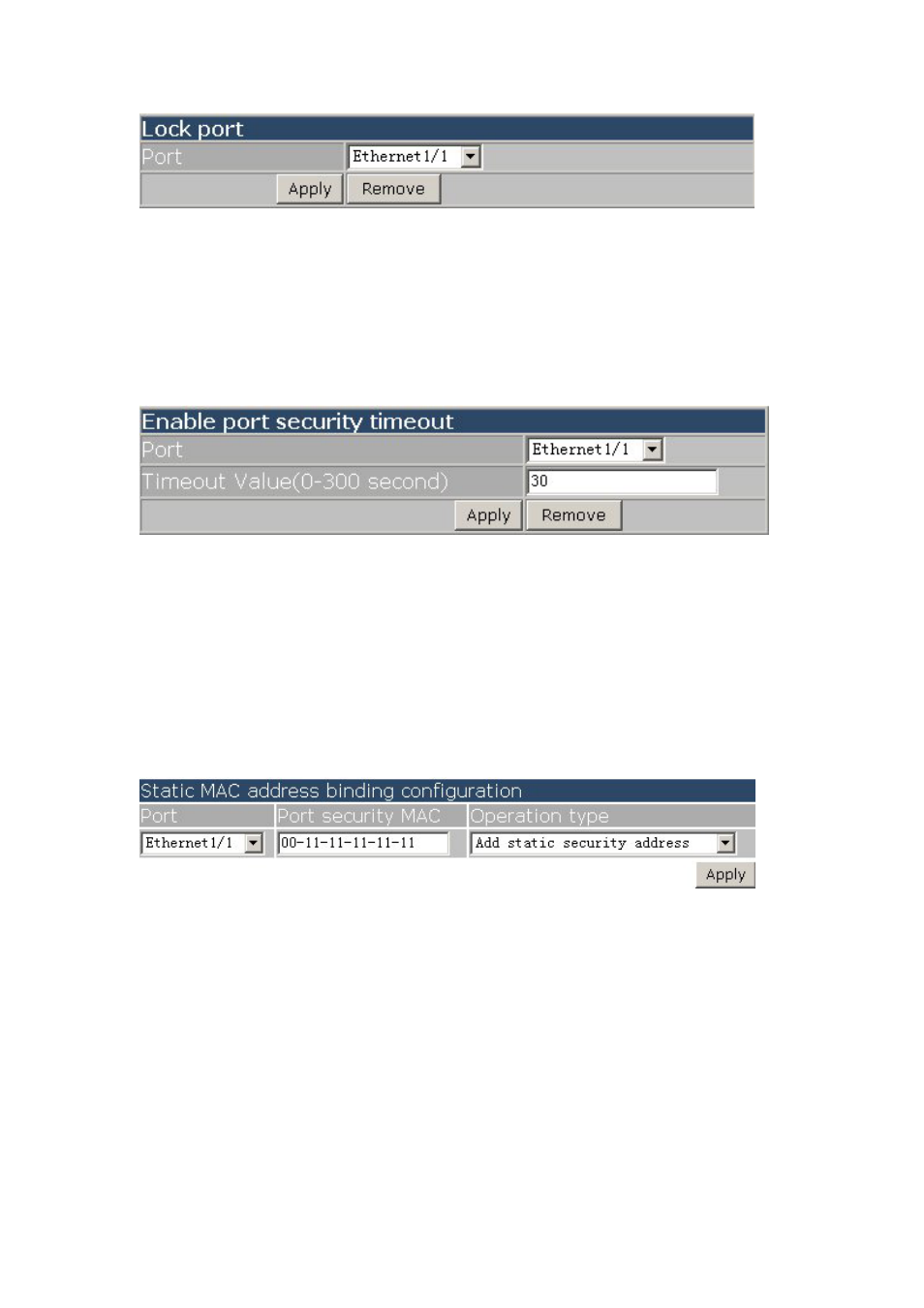

8.6.2.2.3 Enable port security timeout
Click “MAC address table configuration”, “MAC address binding configuration”, “Lock port”,
“Enable port security timeout” to lock port security. Equals to CLI command 8.5.1.2.2.4:
z Port: specifies the configuration port
z Timeout Value (0-300 seconds): Lock the time out value
Example: Select Ethernet port 1/1 and set up Timeout value as 30 seconds, then click the Apply
button. The Ethernet port 1/1 security timeout will then be 30 seconds
8.6.2.2.4 Binding MAC
Click “MAC address table configuration”, “MAC address binding configuration”, “Lock port”,
“Binding MAC”, to add/remove static security MAC addresses. Equals to CLI command 8.5.1.2.2.5
z Port: Specifies the port
z Port security MAC: MAC address
Operation type: adds/removes static security addresses.
Example: Select Ethernet Port 1/1 and assign MAC as 00-11-11-11-11-11, select add static security
address then click the Apply button to apply this setting to the switch.
8.6.2.2.5 Clearing port MAC
Click “MAC address table configuration”, “MAC address binding configuration”, “Lock port”,
“Clearing port MAC” to clear the dynamic MAC addresses of the selected port. Equals to CLI
command 8.5.1.2.2.6.
z Mac: Specifies the deleted MAC
z Port: Specifies the port to delete MAC
Example: Select Ethernet port 1/1 and click the Apply button then the dynamic MAC of Ethernet
port 1/1 will be deleted.
