504
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

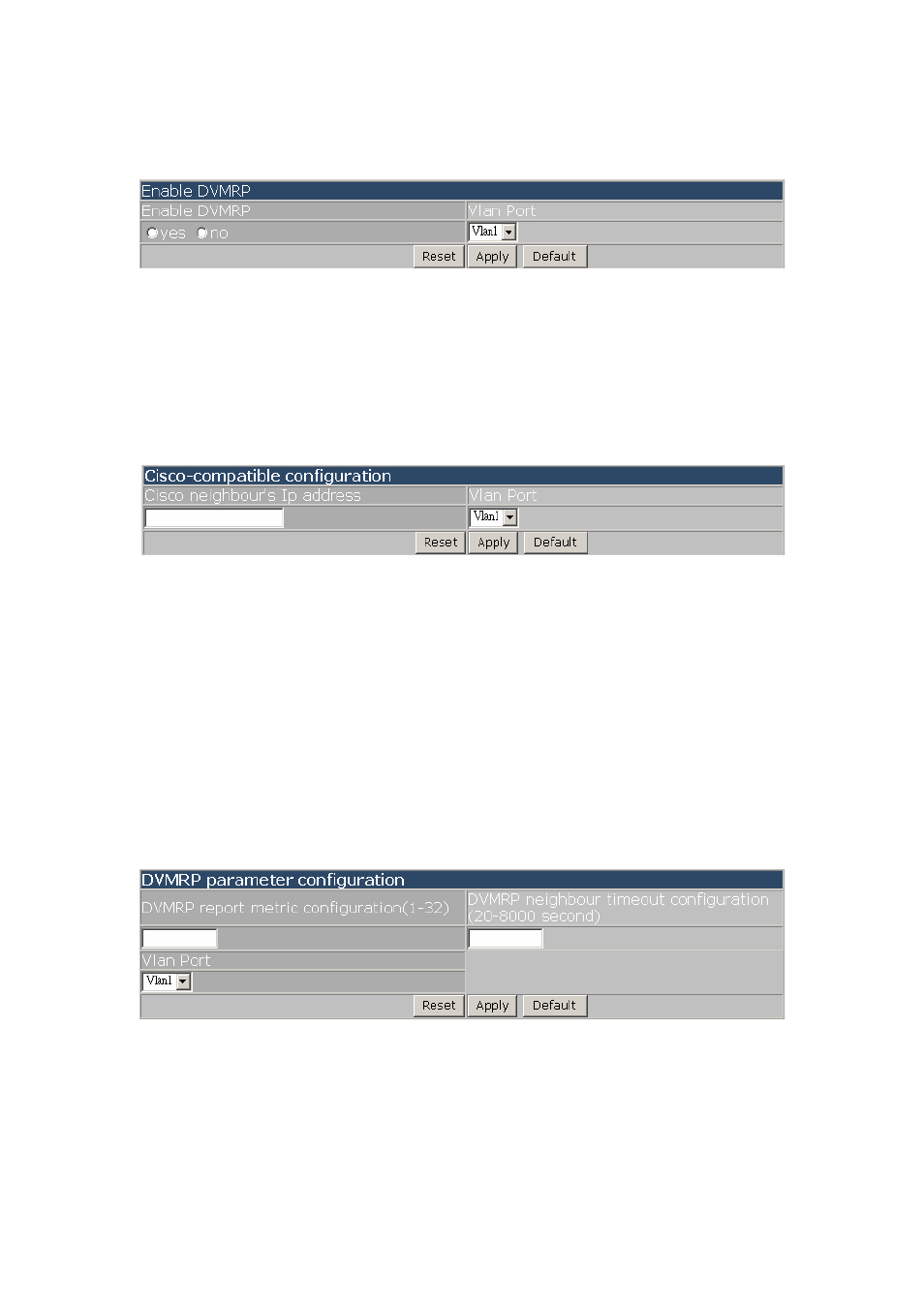

z Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z Apply － runs according to configured parameter
z Default － disables DVMRP protocol
19.7.4.2 Cisco-compatible configuration
Click “Cisco-compatible configuration” to startup the connection with CISCO neighbor. This is the
sameas CLI command 19.5.2.2.1
z Cisco neighbor’s IP address － assigns Cisco neighbor IP address
z Vlan Port － assigns layer 3 interface （select from scroll bar menu）
z Apply － runs according to configured parameter
z Default － cancels the compatible configuration to the Cisco neighbor
19.7.4.3 DVMRP parameter configuration
Click “DVMRP parameter configuration” to the configure DVMRP protocol interface
configuration parameter. This is the sameas CLI command 19.5.2.2. and 19.5.2.2.5
z Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z DVMRP report metric configuration － Configures interface DVMRP report message
metric. This is the same as CLI command 19.5.2.2.4
z DVMRP neighbor timeout configuration － Configures interface DVMRP neighbor
timeout. This is the same as CLI command 19.5.2.2.5
z Apply － runs according to configured parameter
z Default － restores the interface parameter to default (includes report message metric,
neighbor timeout time）
Note：Because the page correspondence 2 PCS CLI command, a parameter error message will
appear when. Only configure one or many parameters, it’s not affected.
19.7.4.4 DVMRP global parameter configuration
Click “DVMRP global parameter configuration” to configure DVMRP protocol global configuration
parameters. This is the same as 4 PCS CLI command 19.5.2.2.3, 19.5.2.2.6, 19.5.2.2.7, and
19.5.2.2.8
z DVMRP graft interval configuration － Configures DVMRP graft interval. This is the
