E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

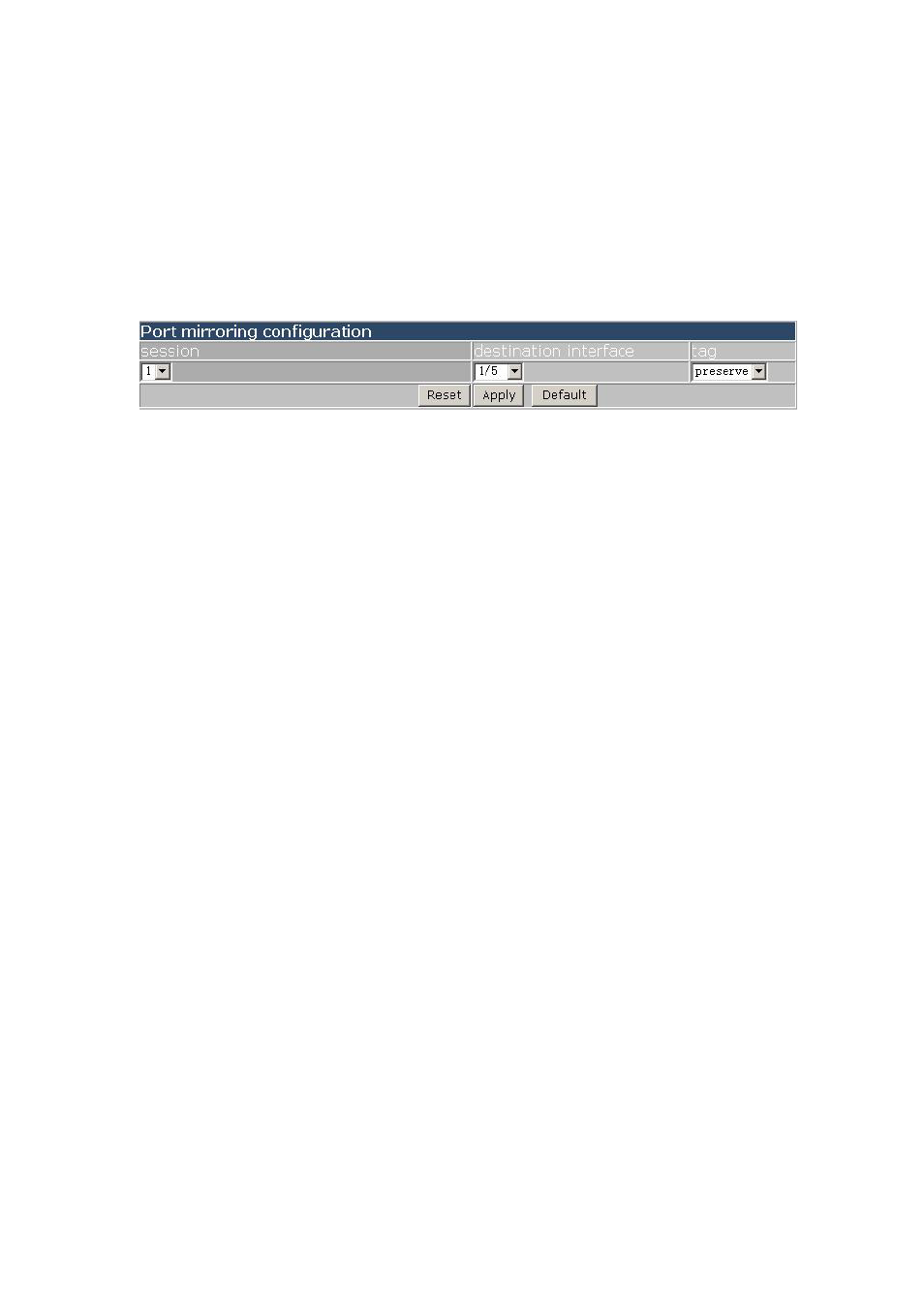

Configure mirroring destination port. Equals to CLI command 7.2.3.3.2.
z
Session: Mirroring dialog value
z destination interface
z tag: Setting the vlan tag function means all mirroring packets carry vlan tags; preserve means
that if the Ingress mirroring packet, carrying a vlan tag, while Ingress, then Egress mirroring
packet will carry vlan tag as well. Otherwise will be not.
Example: Select mirror dialog session as 1 and set up port mirroring list as 1/5, tag as preserve.
Click Apply button and this setting will be applied in the switch.
7.5.4 Port debug and maintenance
Click Port configuration, Port debug and maintenance and open the Port debug and maintenance
management list to get port information.
7.5.4.1 Show port information
Click “Port configuration”, “Port debug” and “maintenance”, Show port information to check the
statistic information of the receiving/sending data packet information of the port. Equals to CLI
command 7.4.1.2
Example: Select check Ethernet port 1/1 and click Refresh to see the statistic report of port 1/1
