E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
10.5 WEB MANAGEMENT
Click “MSTP control” to enter MSTP control configuration mode to manage MSTP features for the
switch.
10.5.1 MSTP field operation
Click “MSTP control” to enter MSTP field operation.

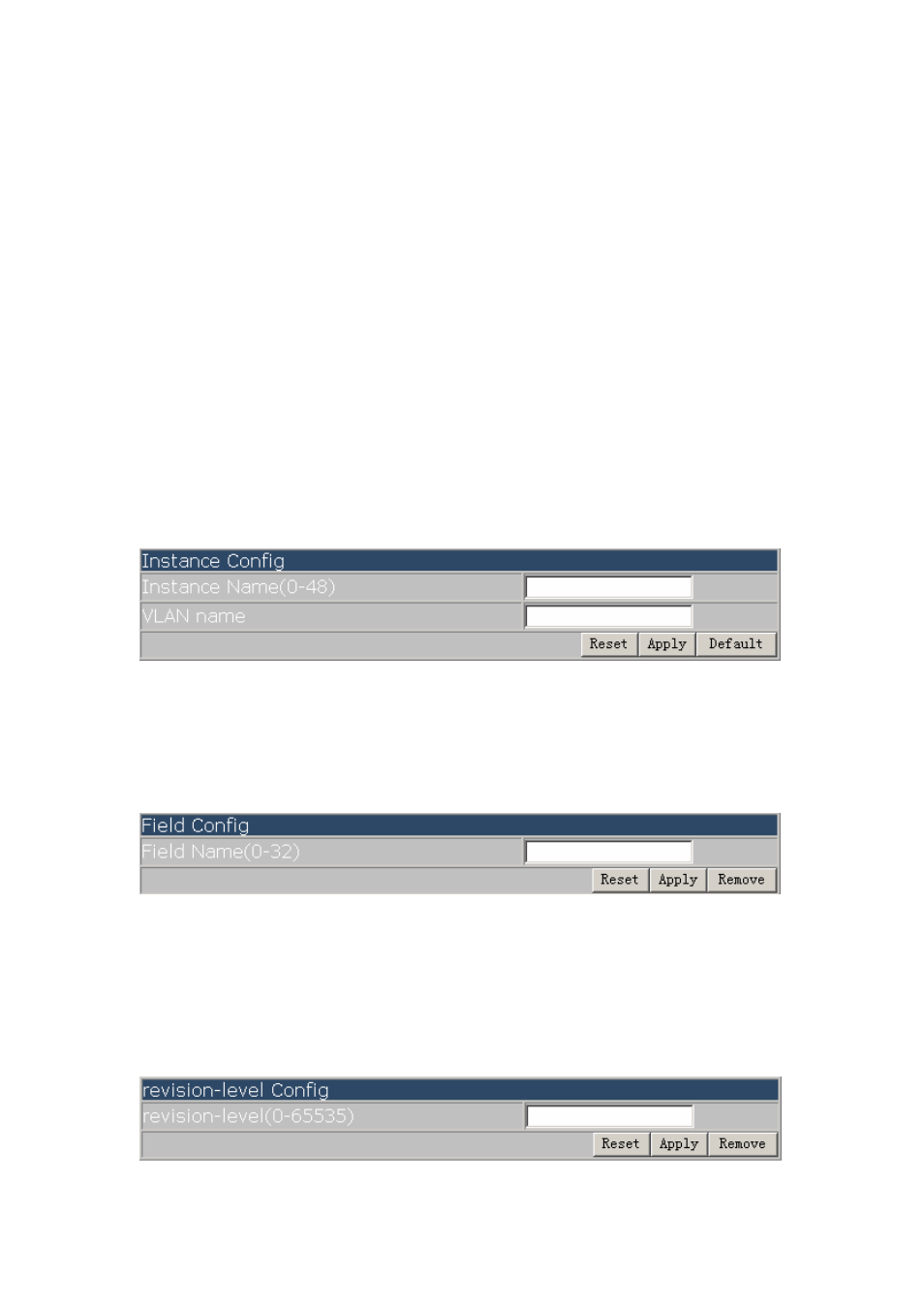

10.5.1.1 Instance configuration
Click “MSTP control” to enter MSTP field operation, then Instance configuration.
Create the Instance and configure the VLAN-Instance mapping or add VLAN table entry
mapping to specified Instance.
Configure mapping between VLAN1-10;100-110 and Instance 1. Equivalent command 1.2.1.3.
Set Instance name to 1, VLAN name to VLAN1-10;100-110. Click "Apply" to commit the
application.
10.5.1.2 Field operation
Click “MSTP control” to enter the MSTP field operation.
Configure MSTP field name under MSTSP field configuration mode.
Set the MSTP field name to "mstp-test". Equivalent command 1.2.1.4.
10.5.1.3 Revision level control
Click “MSTP control” to enter MSTP field operation, then "revision-level Config".
Configure the revision level value for calculating MST configuration ID under MST
configuration mode.
Set the revision level to 2000.
