E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

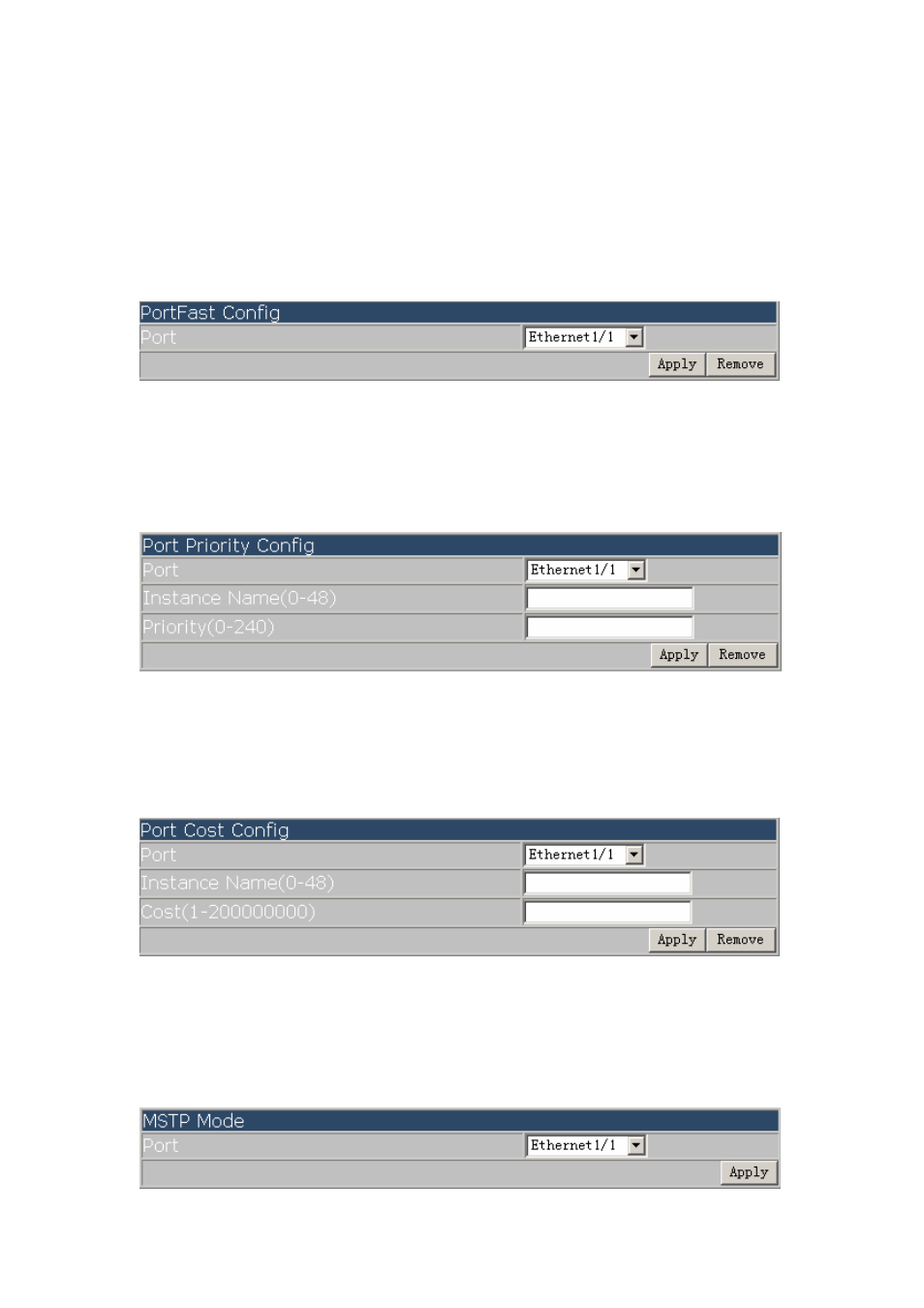

10.5.2 MSTP port operation
10.5.2.1 Edge port setting
Click “MSTP control” to enter MSTP field operation, then "PortFast Config".
Set the port to be an edge port
Configure port 1/5 to be edge ports.
10.5.2.2 Port priority setting
Click “MSTP control” to enter MSTP port operation, then "Port Priority Config".
Set the priority for the current port on specified instance
Set the priority for port 1/2 of instance1 to 32.
10.5.2.3 Port route cost setting
Click “MSTP control” to enter MSTP port operation, then "Port Cost Config".
Set the port route cost on specified instance for the current port
Set on port 1/2 route cost of the MSTP port corresponding to Instance 2 to 3000000.
10.5.2.4 MSTP mode
Click “MSTP control” to enter MSTP port operation, then "MSTP Mode".
Force switch port migrate to run under MSTP.
Force port 1/2 migrate to run under MSTP.
