140
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

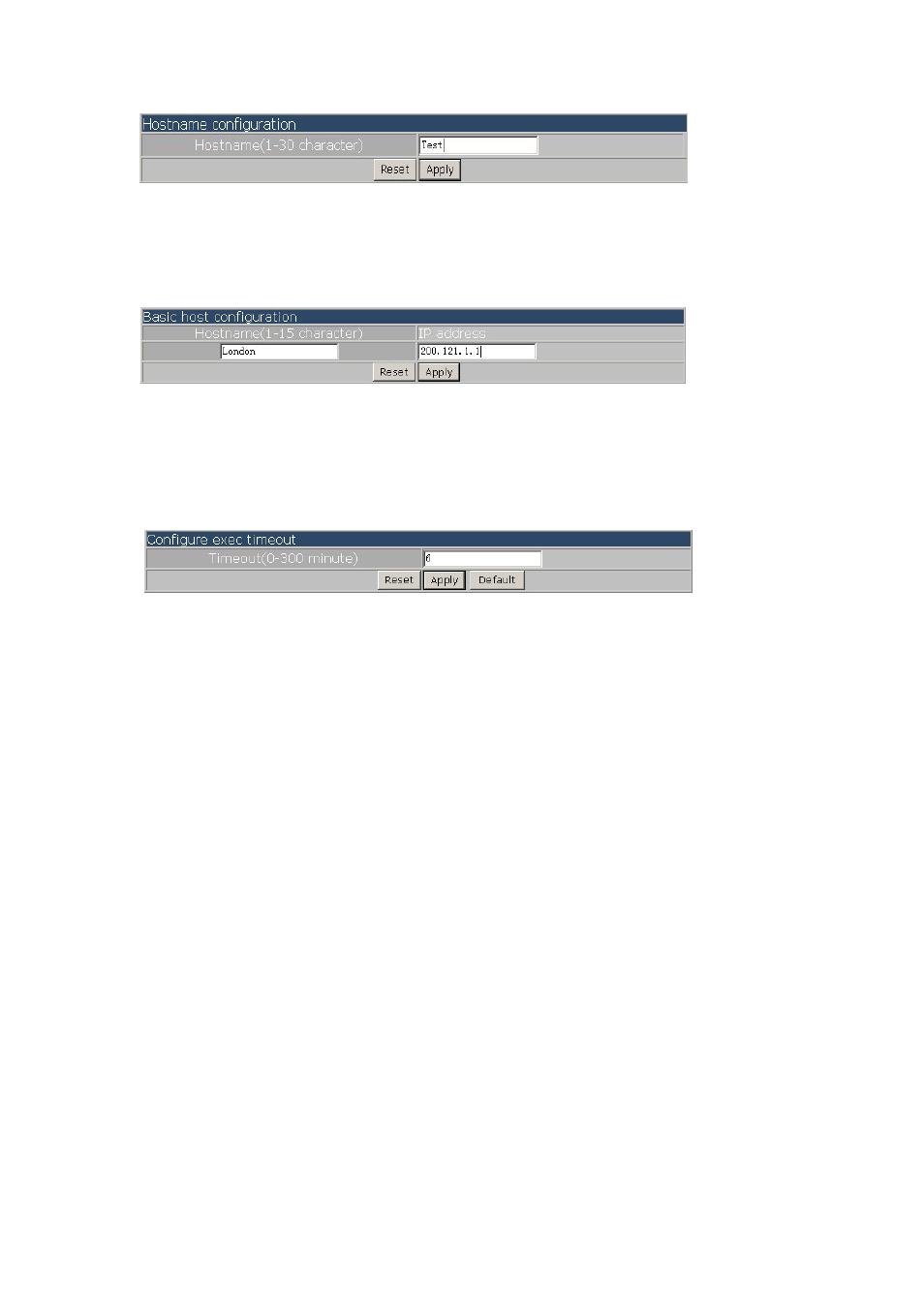

z Basic host configuration – configures the mapping relationship between the switch and the IP
address. Please refer to the CLI command 5.1.8.
Example: configure the Hostname as “London” and IP address as 200.121.1.1 and then click on the
“Apply” button. This configuration will be applied to the switch.
Users should click “Switch basic configuration” and “Configure exec timeout” to configure the
timeout of quitting privileged configuration mode. Please refer to the CLI command 5.1.5.
5.6.1.2 Configure exec timeout
Example of configuring the timeout as 6 minutes and then click on the “Apply” button to complete
the timeout of quitting privileged configuration mode.
5.6.2 SNMP configuration
Users should click “Switch basic configuration” and “SNMP configuration” to configure the SNMP
relating functions.
5.6.2.1 SNMP manager configuration
Users should click “Switch basic configuration”, “SNMP configuration”, and “SNMP manager
configuration” to configure the community string of the switch. Please refer to the CLI command
5.4.4.2.2.
z Community string (0-255 characters) – for configuration of the community string.
z Access priority – specifies access rights to MIB, including “Read only” and “Read and write.”
z State – “Valid” – to configure; “Invalid” – to remove.
Users should configure Community string as “public”, choose Access priority as “Read only” mode,
and choose State as “Valid” or configure Community string as private, choose Access priority as
“Read and write” mode, and choose State as ”Valid”. The command will be applied to the switch by
clicking on the “Apply” button.
