218

E

ES4710BD 10 Slots L2/L3/L4 Chassis Switch

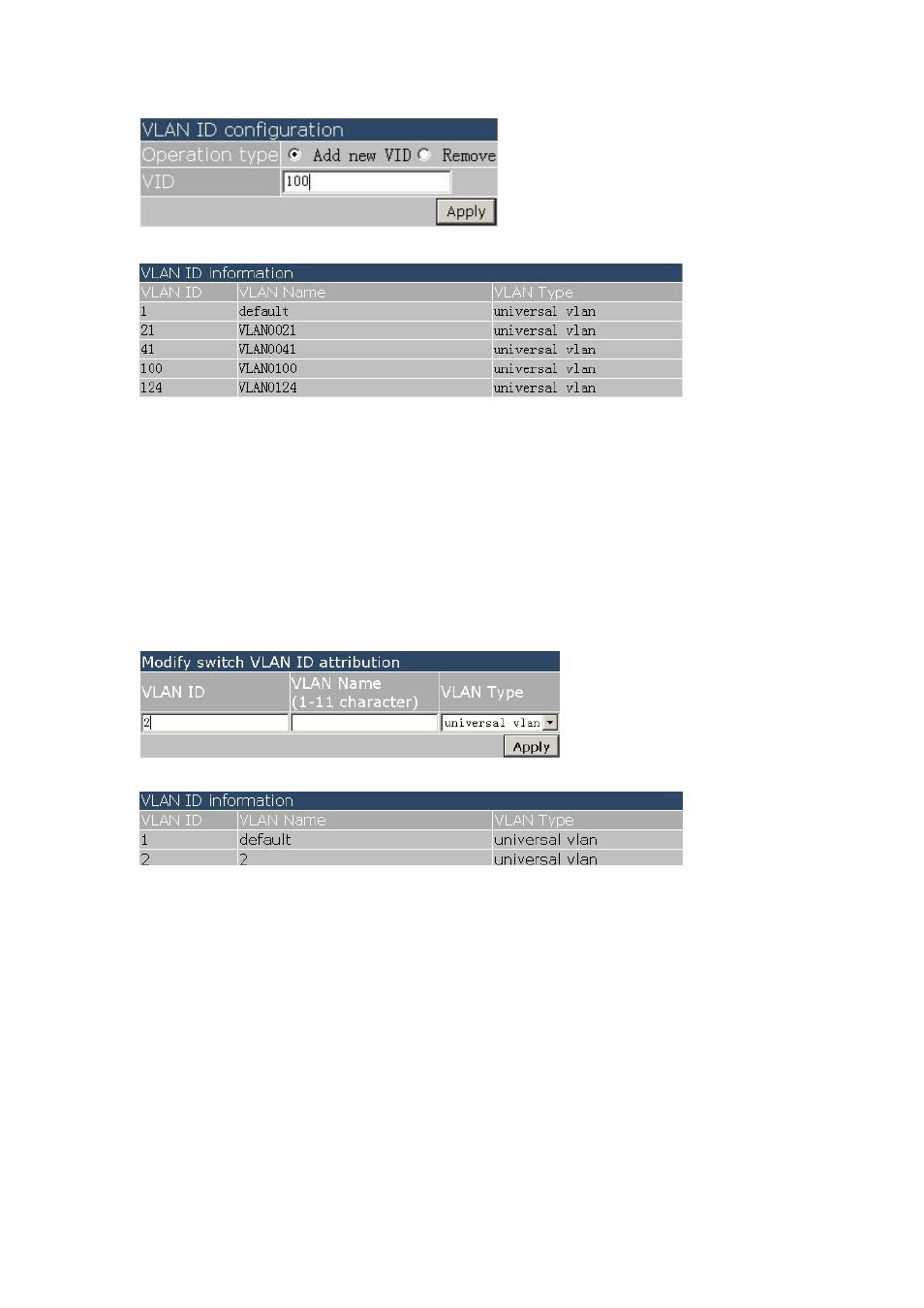

VLAN ID information window will display current VLANs of the switch:

9.5.1.1.2 VID attribution configuration

Click “Vlan configuration”, “Vlan configuration”, “Create/Remove VLAN”, “VID attribution

configuration” to setup VID type:

z

VLAN ID: specified VLAN ID

z

VLAN Name: allocate VLAN name. Equals to CLI command 9.2.2.2

z

VLAN Type: VLAN type

Example: Set up VLAN ID as 2, VLAN Name as default and VLAN type as universal vlan and click

Apply button then VLAN 2 is created.

VLAN ID information displays current VLAN allocation information of the switch:

9.5.1.2 Allocate port for Vlan

Click “Vlan configuration”, “Vlan configuration”, Allocate ports for VLAN to open port VLAN

allocation management list.

9.5.1.2.1 Allocate port for Vlan

Click “Vlan configuration”, “Vlan configuration”, Allocate ports for VLAN, Allocate port for Vlan

to allocate ports for VLAN . Equals to CLI command 9.2.2.4

Select VLAN Num as 1, set port as 1/1 and click Apply button then port 1/1 will be added into 1/1.
