E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

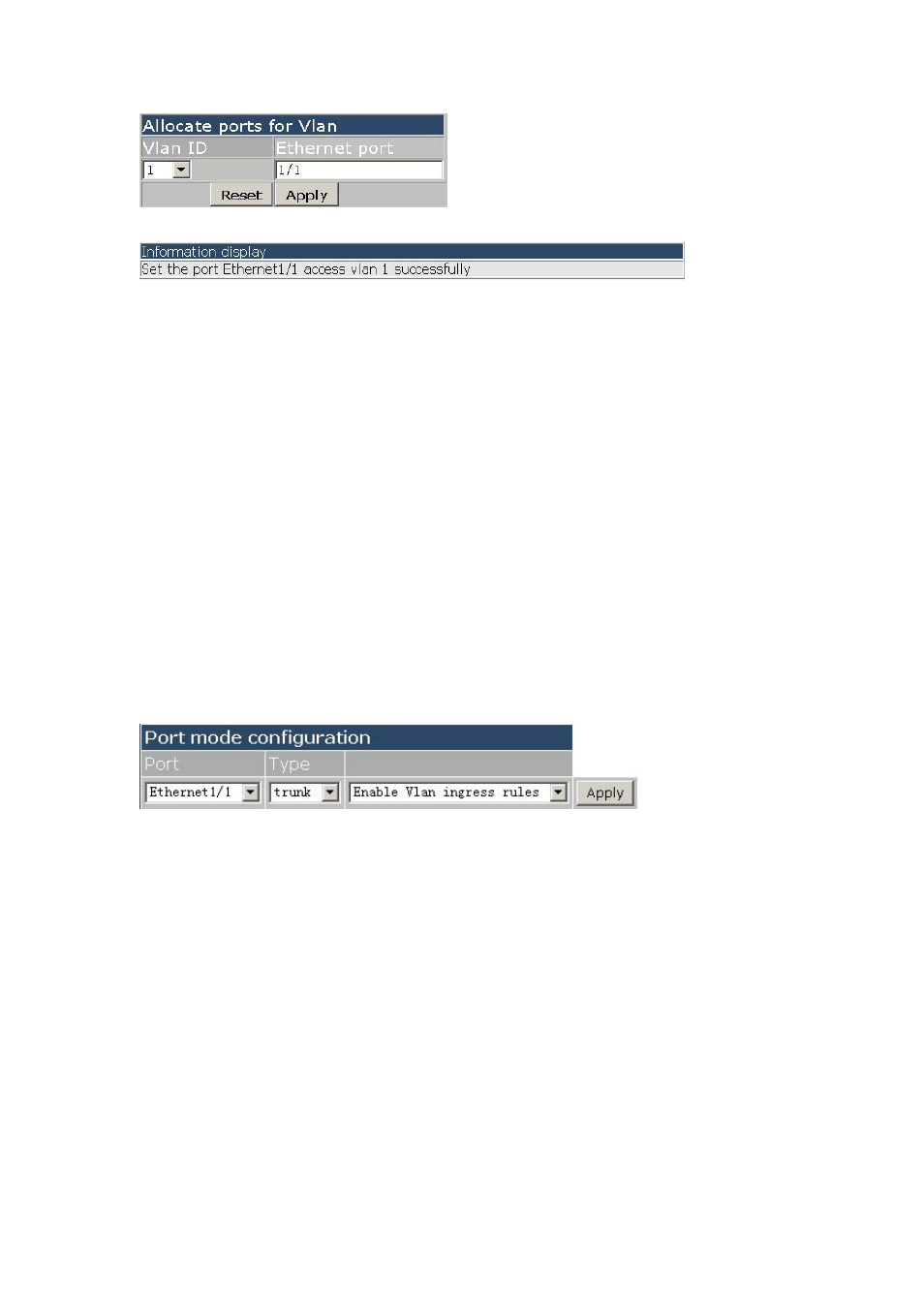

Information display shows the VLAN allocation result:
9.5.1.3 Port type configuration
Click “Vlan configuration”, “Vlan configuration”, ”Port type configuration” to open port type
configuration list.
9.5.1.3.1 Set port mode(trunk/access)
Click “Vlan configuration”, “Vlan configuration”, “Port type configuration”, “Set port mode”
(Trunk/Access) to set up port mode of the switch:
z Port: specified port
z Type: port mode including access mode and trunk mode. Equals to CLI command 9.2.2.5
z Vlan ingress rules: sets up open and close VLAN filter mode. Equals to CLI command
9.2.2.8
Example: Select Ethernet port 1/1, select port mode as Trunk and select Enable Vlan ingress rules
and click the Apply button to apply this setting to the switch.
Port mode configuration to show port mode information
