41
E
ES4710BD 10 Slots L2/L3/L4 Chassis Switch
Property
Specification
Connector
RJ-45 (Receptacle)
Connector type
z
10/100Mbps auto sensing
z
Cat 5 UTP: 300 m
1.4.2.1.5
Front Panel – Reset Button
EM4710BD-AGENT provides a RESET button for resetting the board.
1.4.2.1.6
Front Panel – SWAP Button
The EM4710BD-AGENT provides a SWAP button for hot swapping the module during operation.
Before removing the modules, users should press SWAP button first. The module will then prepare
for hot-swap and the system operation indicator (RUN) will turn yellow and blink at 8 Hz. When the
RUN indicator is off, the cards are powered off and can be removed.
1.4.2.2 EM4700BD-12GT-RJ45
12 copper Gb ports line card (EM4700BD-12GT-RJ45): supports 12 1000Base-T copper ports for
layer 2 and layer 3 switching and routing.
1.4.2.2.1 Front
Panel
The EM4700BD-12GT-RJ45 provides 12 RJ45 ports (10/100/1000Mbps adaptive).
The Front Panel view is shown below:

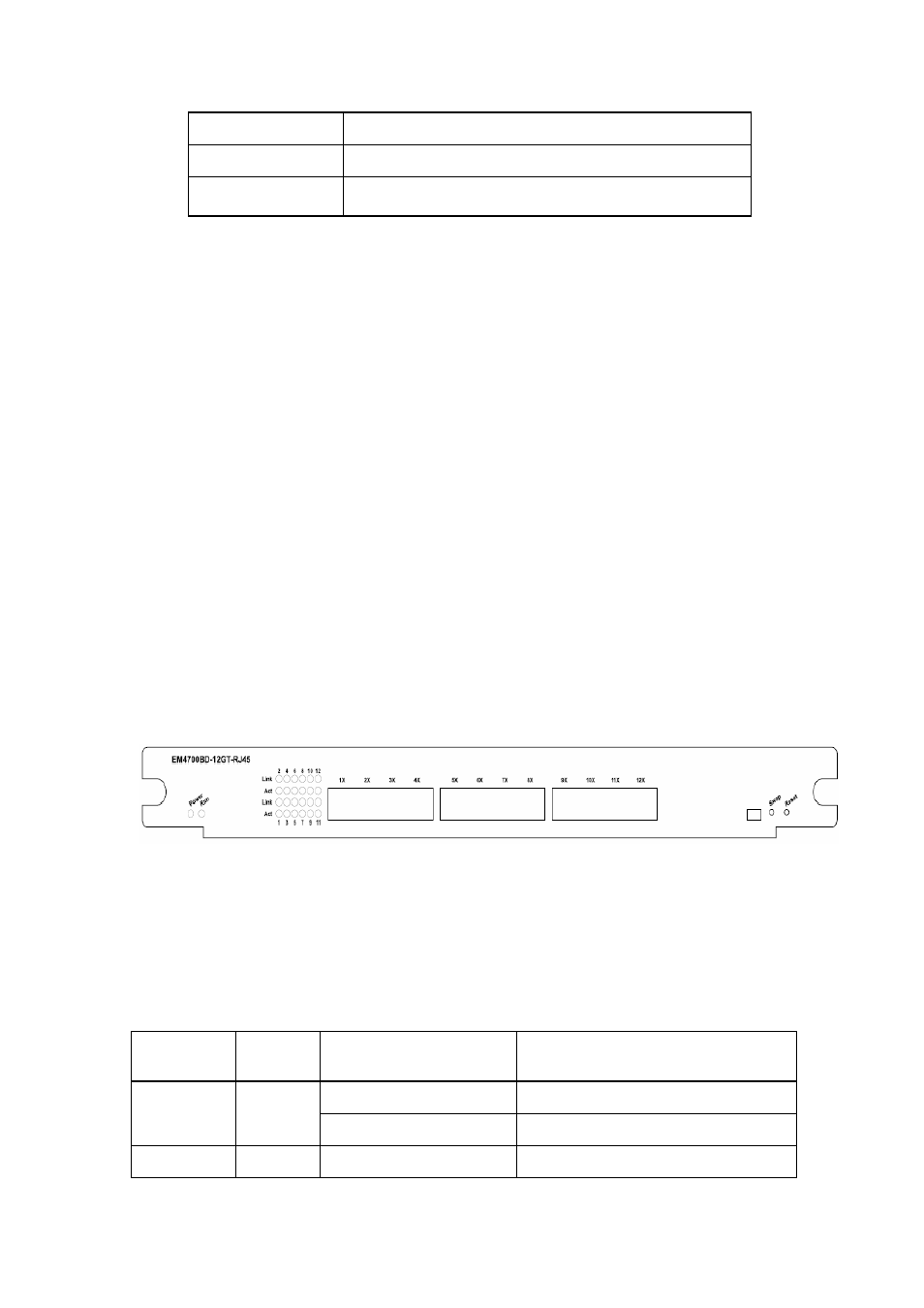

Fig 1-4 EM4700BD-12GT-RJ45 Front Panel view
1.4.2.2.2
Front Panel - Indicator
The following table describes the EM4700BD-12GT-RJ45’s front panel indicators:
Table 1.4 EM4700BD-12GT-RJ45 indicator descriptions
LED
Panel
Symbol
Status
Description
On (green)
Card powered
Power
Indicator
PWR
Off Card
powered
off
Operation RUN
On (Green, blinks at 1 Hz)
Card operating normally
