E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
16.5.5.2 Egress-queue Work mode configuration

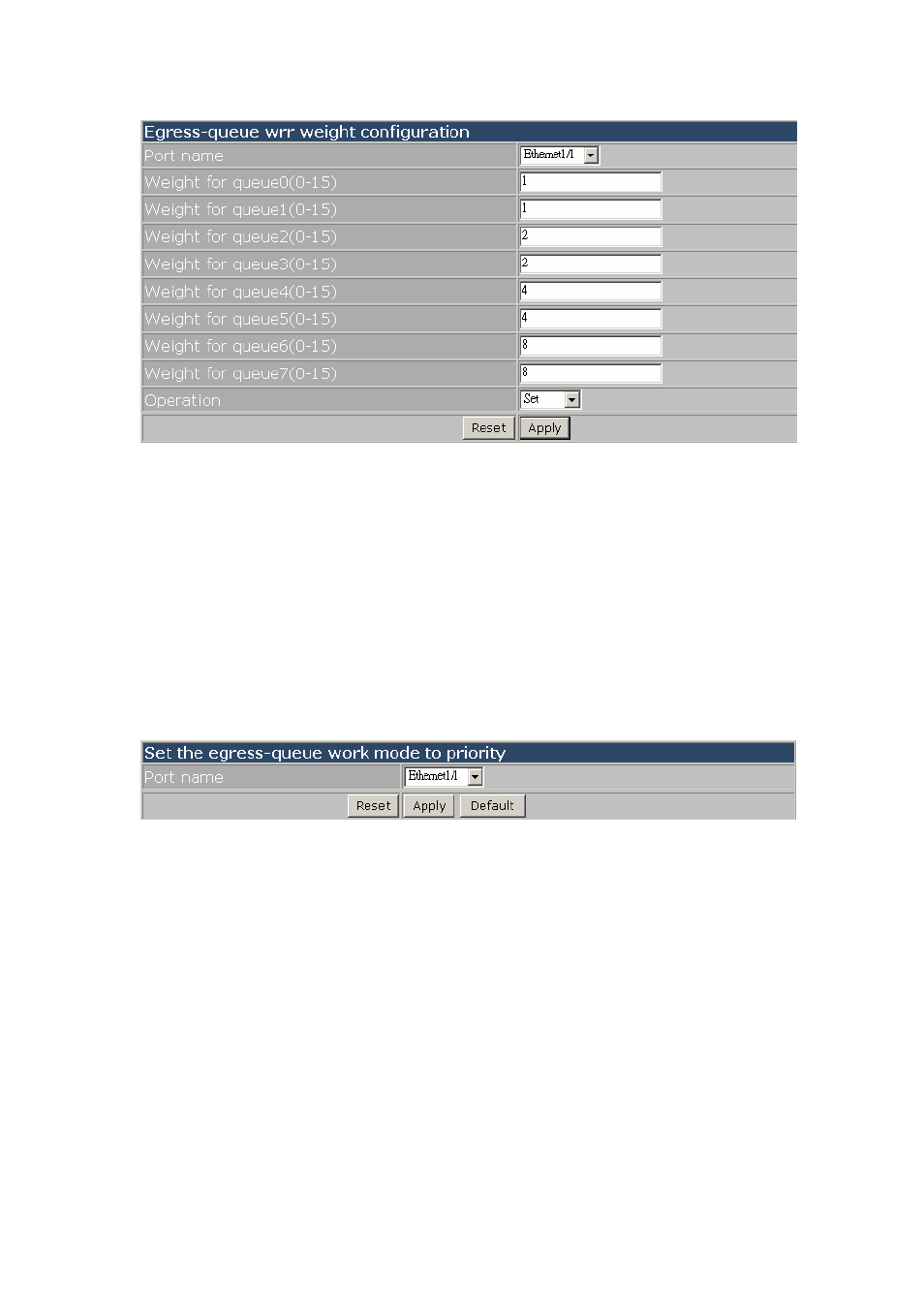

Click “Egress-queue work mode configuration” to enter the configuration page. Equivalent to CLI
command 16.2.2.15.
Terms are described as following:
z
Port name
z Reset－Will set column as startup defaults. This command will not modify the configuration.
z Apply－Will take effort to all setting. This command will modify the configuration.
z Default－Will back to startup setting. This command will modify the configuration.
Example: Configure the port as priority-queue mode: chose port name first, and then click Apply.
16.5.5.3 Mapping CoS values to egress queue
Click “Mapping CoS values to egress queue” to enter the configuration page. Equivalent to CLI
command 16.2.2.16.
Terms are described as following:
z
Queue-ID
z CoS value－Mapping CoS values to Egress queue. Up to 8 queue to be supported.
z Reset－Will set column as startup defaults. This command will not modify the configuration.
z Default－Will reset to startup settings. This command will modify the configuration.
Example: set the packet with CoS value 2/3 to mapping egress queue 1, the Queue-ID should be set
as 1 and CoS value set with value 2/3, then click Apply.
