Accton Technology ES4710BD - Manual (Page 531)

530
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
20.5.1.3 RADIUS accounting configuration

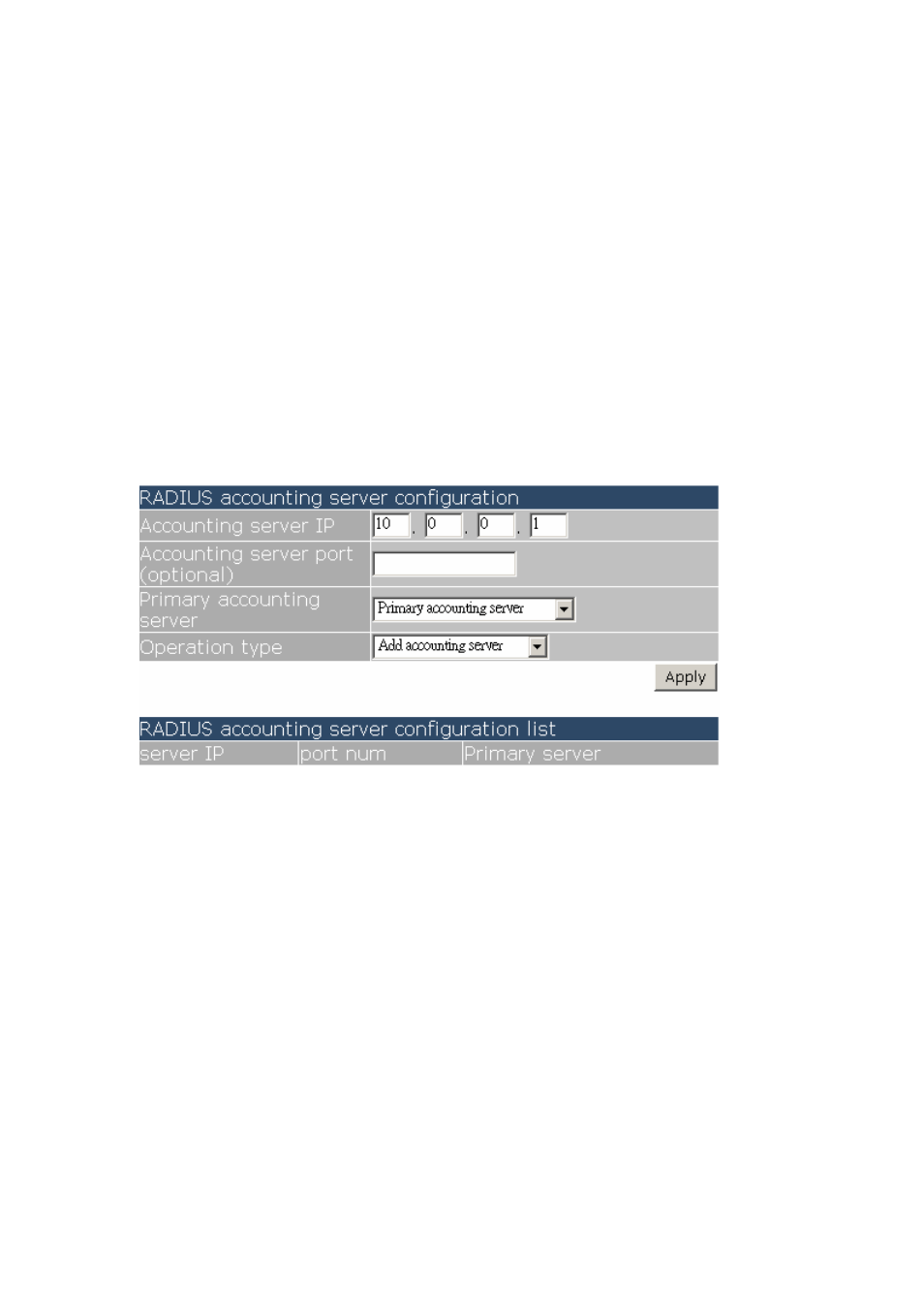

Click “Authentication configuration”, “RADIUS client configuration”, “RADIUS accounting
configuration” to configure the RADIUS accounting server’s IP address and monitor port ID.
Equivalent to CLI command 20.2.2.16.
z
Accounting server IP - server IP address.
z Accounting server port(optional) – is the accounting server port ID, with range: 0~65535,
where “0” means that it’s not work as authentication server.
z Primary accounting server – Primary Accounting server, is the primary server; Non-Primary
Accounting server, is the non-primary server.
z Operation type – Add accounting server, adds an accounting server; Remove accounting server,
removes an accounting server
Example: Configure Accounting server IP as 10.0.0.1, Accounting server port as default port, choose
Primary accounting server, choose Operation type as “Add accounting server” and then click Apply
button to add the accounting server.
20.5.2 802.1X configuration
Click “Authentication configuration”, “802.1X configuration” to open the 802.1x function
configuration management list and configure the switch 802.1x function.
20.5.2.1 802.1X configuration
Click “Authentication configuration”, “802.1X configuration”, “802.1X configuration” to configure
the 802.1x global configurations:
z
802.1x status – Enables, disables the switch 802.1x function. Equivalent to CLI command
20.2.2.5.
z Maximum retransmission times of EAP-request/identity(1-10 second) - Configures sending
EAP-request/MD5 frame the maximum times before switch did not receive suppliant response
and restart authentication. Equivalent to CLI command 20.2.2.7.
z Re-authenticate client periodically - permit, forbid to make seasonal re-authentication for
