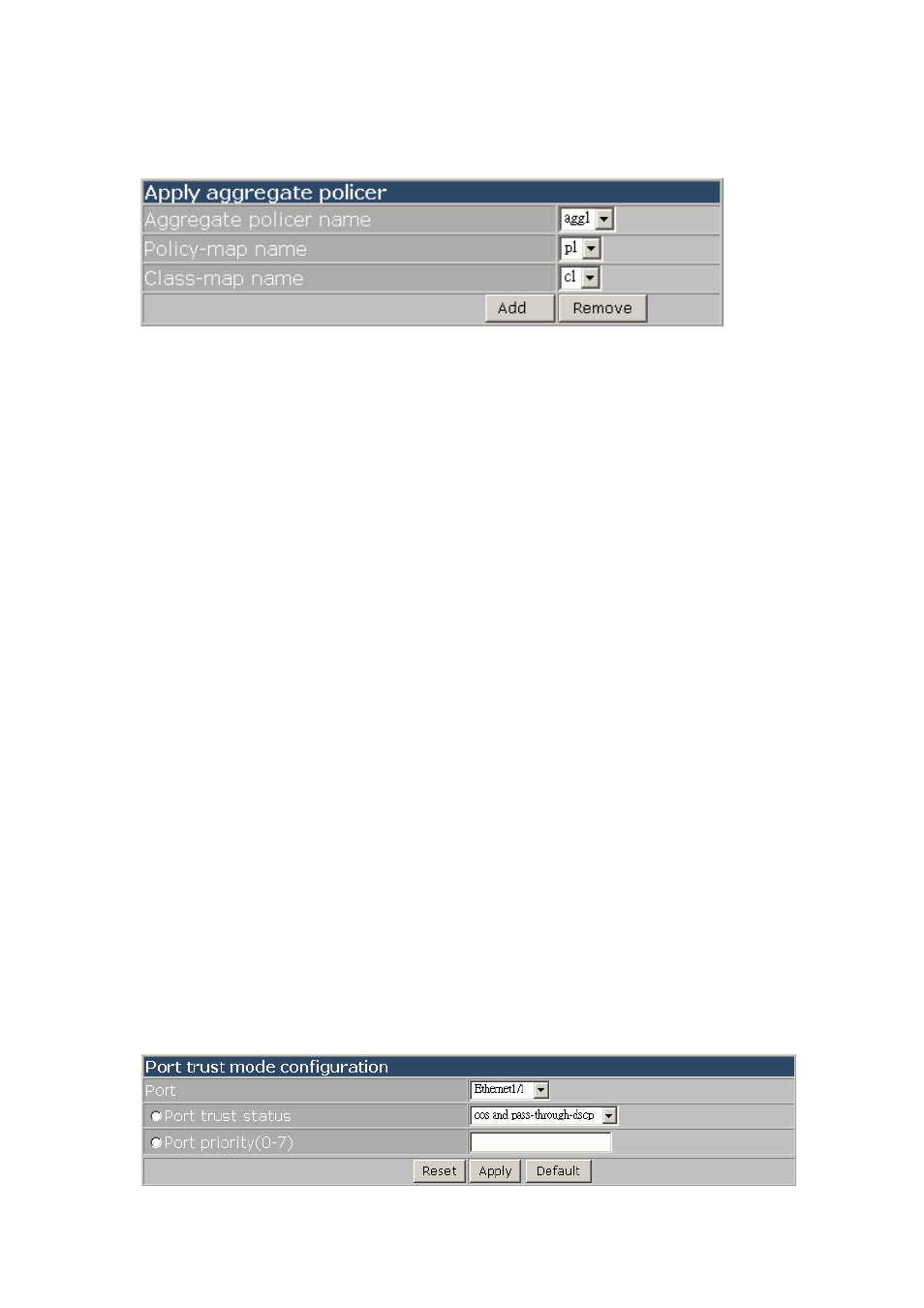

Example: Apply the aggregate policer agg1 by c1 class-map, input the graphic presentation value,
and then click Add.
16.5.4 Apply QoS to port
Click “Apply QoS to port” to enter the configuration page, which include four sections:
z
Port trust mode configuration
z Port default CoS configuration
z Apply policy-map to port
z Apply DSCP mutation mapping
16.5.4.1 Port trust mode configuration
Click “Port trust mode configuration” to enter the configuration page. Equivalent to CLI command
16.2.2.10.
Terms are described as following:
z
Port
z Port trust status－including
9
cos, cos and pass-through-dcsp,
9 dcsp, dcsp and pass-through-cos,
9 ip-precedence, ip-pre and pass-through-cos
z Port priority
z Reset－Will set column as startup defaults. This command will not modify the configuration.
z Apply－Will take effort to all setting. This command will modify the configuration.
z Default－Will back to startup setting. This command will modify the configuration.
The parameter will take effect alternative port trust status and port priority.
Example: Configuring the Ethernet port 1/1 with trust mode, setting packet as COS value
classification first and keep it without changing DSCP value. Choosing the Ethernet1/1 port and
select the cos and pass-through-dcsp for Port trust status, then click Apply.
