18.5.3.1.4 Configure OSPF area for port

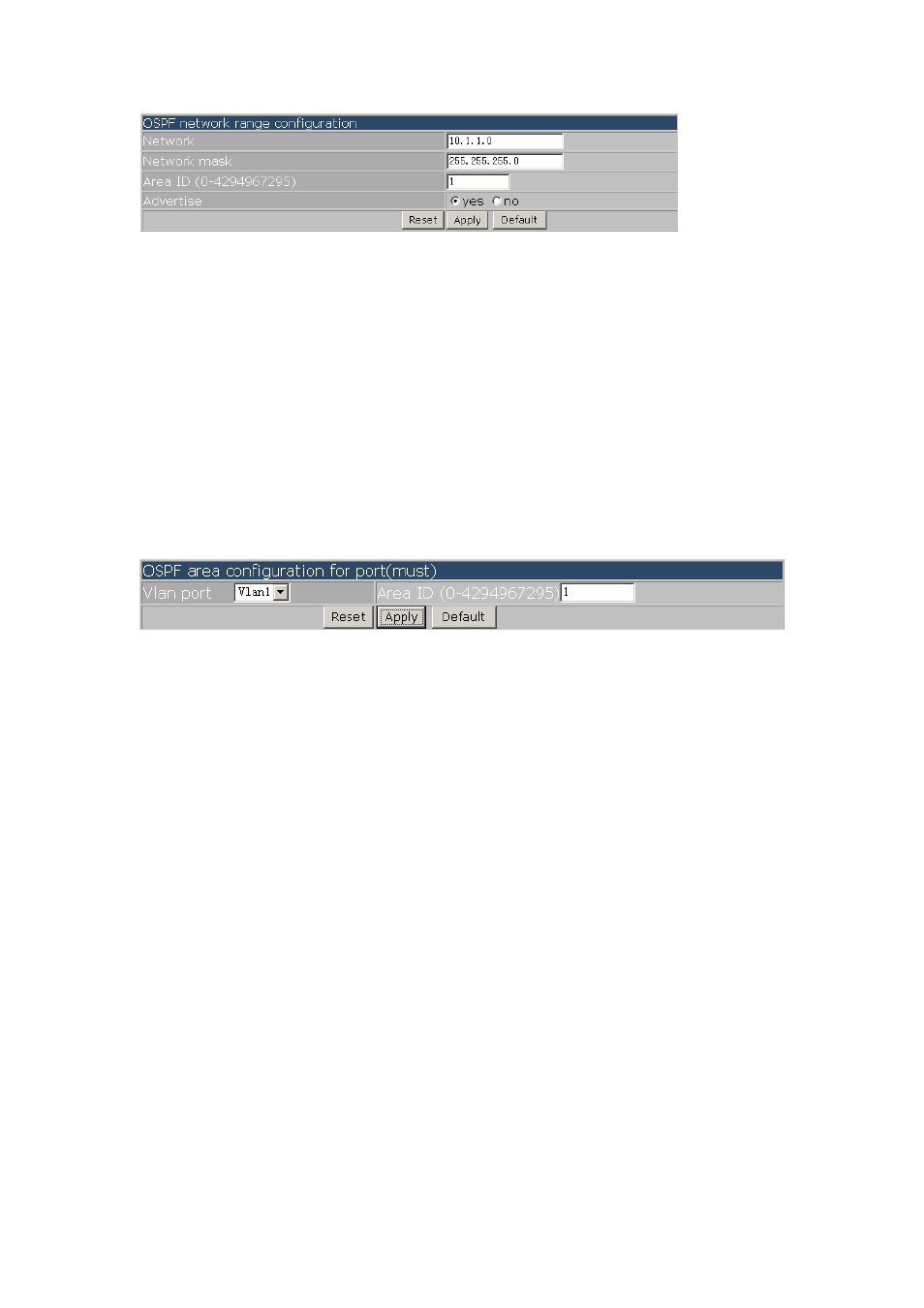

Click “OSPF area configuration” to enter the configuration page for port. Equivalent to CLI
command 18.4.2.2.9
z
Vlan port: port list
z Area ID: area number
z Reset: resets each column value to default in this page and this action will not change settings
z Apply: valid each column value. This action will change settings.
z Default: resets to default setting. This action will change settings.
Example: to configure port vlan 1 to area 1, port select vlan 1, key-in area number 1 and click Apply
button.
18.5.3.2 OSPF TX-parameter configuration
Click “OSPF Tx-parameter configuration” to open the configuration table. Includes:
z
OSPF authentication parameter configuration
z Passive interface configuration: Configures OSPF port as receiving packets only
z Sending packet cost configuration: configures the cost and timer parameter for the port
sending data packets.
18.5.3.2.1 Configure OSPF authentication parameter configuration
Click “OSPF authentication parameter configuration” to enter the configuration page. Equivalent to
CLI command 18.4.2.2.6
z
Vlan port: port list
z Authentication mode: simple and MD5.
z Authentication key
z KeyID: the authentication word in MD5 authentication mode
z Reset: resets each column value to default in this page and this action will not change settings
z Apply: valid each column value and this action will change settings
Example: To configure MD5 authentication mode in port vlan 1, authentication key as 123abc and
the key ID as 1: select vlan1, MD5 and key-in authentication key as 123abc and key ID as 1.
