357
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

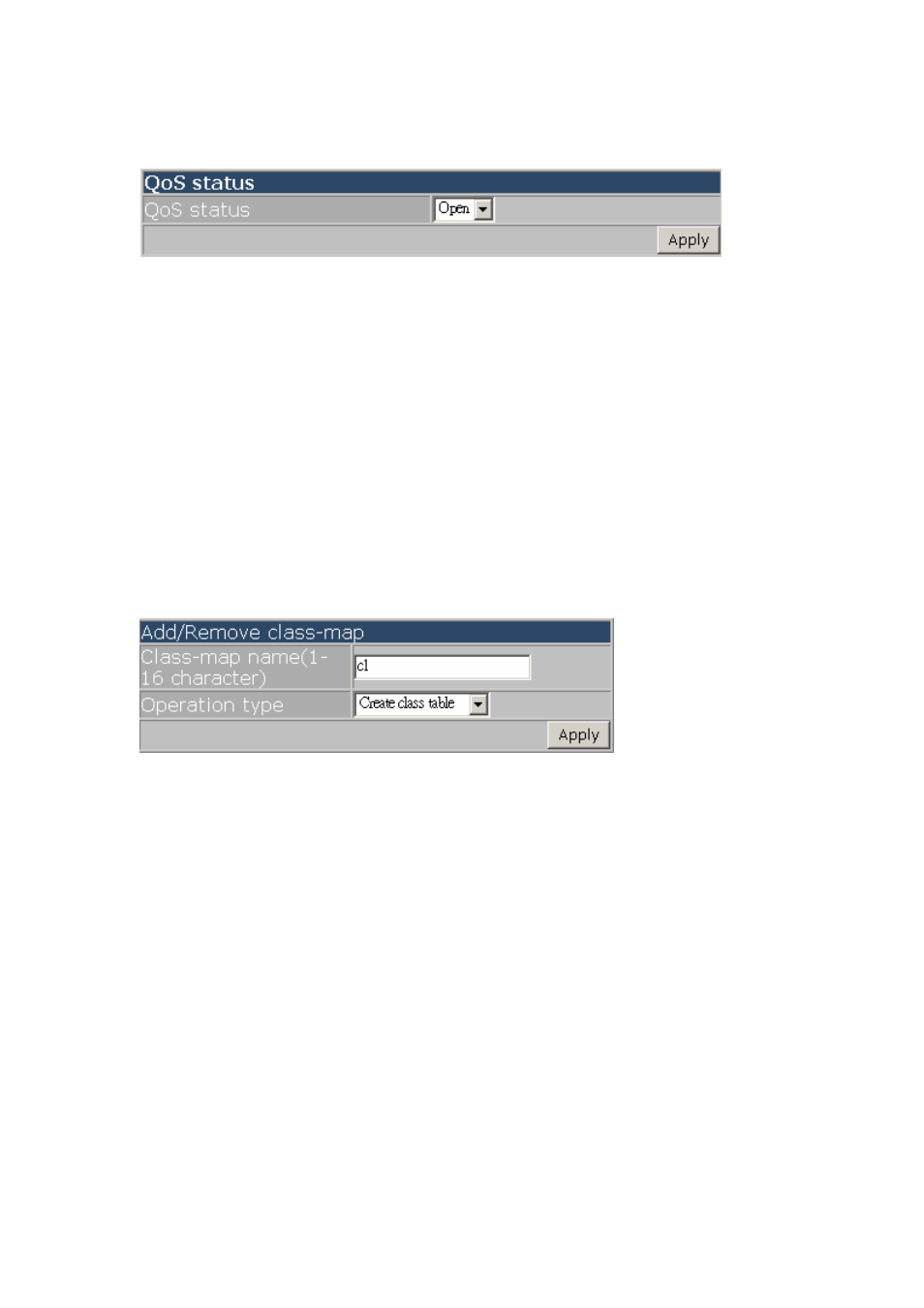

z QoS status－Close or Open.
To enable QoS, select Open, then click Apply.
16.5.2 Class-map configuration
Click “Class-map configuration” to display the extension, including the following two sections:
1.
Add/Remove class-map
2. Class-map configuration
16.5.2.1 Add/Remove class-Map
Click “Add/Remove class-map” to enter configuration page. Equivalent to CLI command 16.2.2.2.
Term description as follows:
z
Class-map name
z Operation type－Create class table and Remove class table.
Example: Enter a class-map name, select Create class table, then click Apply.
16.5.2.2 Class-map configuration
Click “Class-map configuration” to enter the configuration page. Equivalent to CLI command
16.2.2.3.
Terms are described as following:
z
Class-map name
z Match action which including:
9
access-group First valid－mapping to ACL table. Parameter is the assign number or
name of ACL. First valid means Match value 1 is valid.
9 ip dscp－mapping to DSCP. Parameter is the DSCP value list.
9 ip precedence－mapping to IP priority. Parameter is IP priority value list.
9 vlan－mapping to VLAN ID. Parameter is VLAN ID value list.
9 Match value 1-8－mapping to parameter value table. Input ACL value to match value 1
for mapping ACL.
9 Operation type－Sets or Removes.
To configure Class-map c1, select c1 to Class-map name, select ip dscp to Match action, input 3 to
