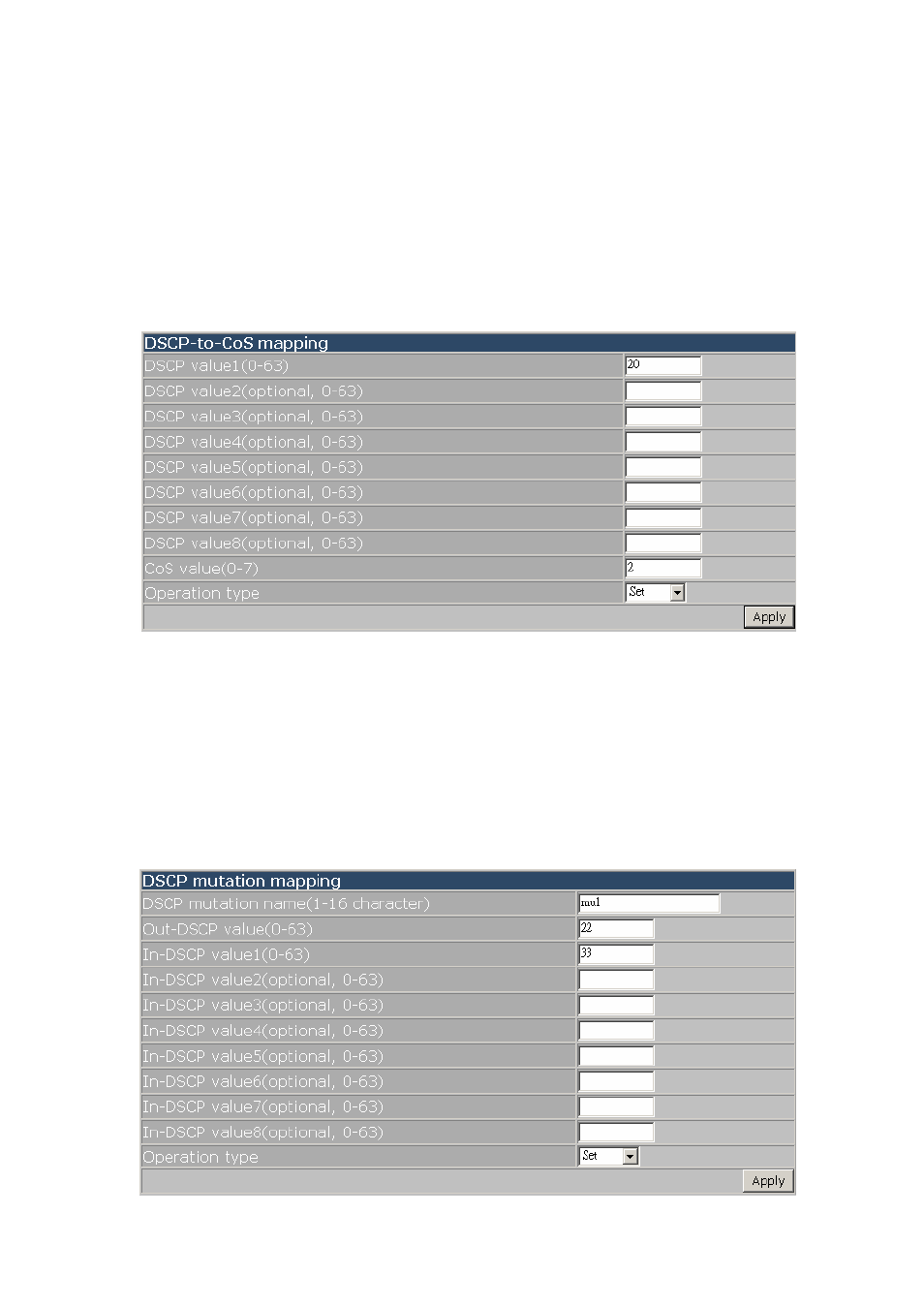

16.5.6.2 DSCP-to-CoS mapping
Click “DSCP-to-CoS mapping” to entry configure page.
Terms are described as following:
z
DSCP 1-8－DSCP value
z
CoS Value－DSCP value mapping to CoS value
z
Operation type－Add or Remove
Example: To make DSCP value 20 map to CoS value 2, input the CoS value 2 and DSCP1 value 20,
selecting Set for Operation type, then click Apply.
16.5.6.3 DSCP mutation mapping
Click “DSCP mutation mapping” to enter the configuration page.
Terms are described as following:
z
DSCP mutation name
z
Out-DSCP value
z
In-DSCP value1-8
z
Operation type－Set or Remove
