473
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
this command is configured.
Example: Setting the interface vlan1 as the candidate RP announcing message sending interface.
Switch (Config)# ip pim rp-candidate vlan1 group-list 5
Switch (Config)# access-list 5 permit 239.255.2.0 0.0.0.255
19.4.3 Typical PIM-SM Scenario

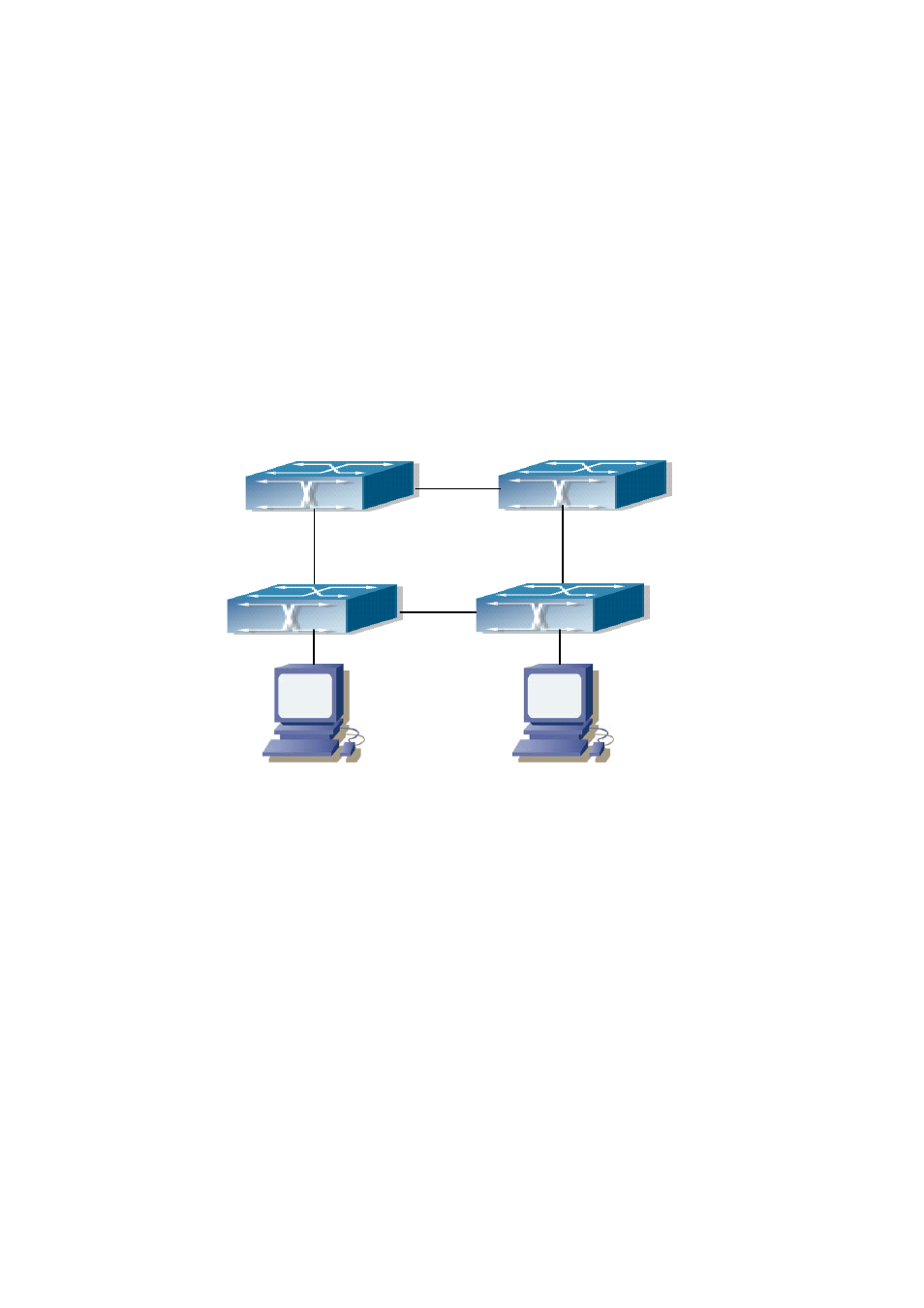

As shown in the figure below, the Ethernet interfaces of SWITCHA, SWITCHB, SWITCHC and
SWITCHD are added to the appropriate vlan, and PIM-SM protocol is enabled on each vlan
interface.
SWITCHA SWITCHB
Et hernet 1/ 1
vl an1
Et hernet 1/ 1
vl an1
Et hernet 1/ 2
vl an2 rp
Et hernet 1/ 2
vl an2
Et hernet 1/ 2
vl an2
Et hernet 1/ 2
vl an2 bsr
Et hernet 1/ 1
vl an1
Et hernet 1/ 1
vl an1
Et hernet 1/ 3
vl an3
Et hernet 1/ 3
vl an3
SWITCHD
SWITCHC
Fig 19-2 Typical PIM-SM environment
The followings are the configurations of SWITCHA, SWITCHB, SWITCHC, and SWITCHD.
(1) Configuration of SWITCHA:
Switch (Config)#interface vlan 1
Switch(Config-If-Vlan1)# ip pim sparse-mode
Switch(Config-If-Vlan1)#exit
Switch (Config)#interface vlan 2
Switch(Config-If-Vlan2)# ip pim sparse-mode
(2) Configuration of SWITCHB:
Switch (Config)#interface vlan 1
Switch(Config-If-Vlan1)# ip pim sparse-mode
Switch(Config-If-Vlan1)#exit
