11.5.2 IGMP snooping configuration
Click “IGMP Snooping configuration” node to enter the IGMP Snooping configuration page. This
page is divided into 3 sections: query configuration, snooping configuration and configuration
display.
11.5.2.1 Query configuration

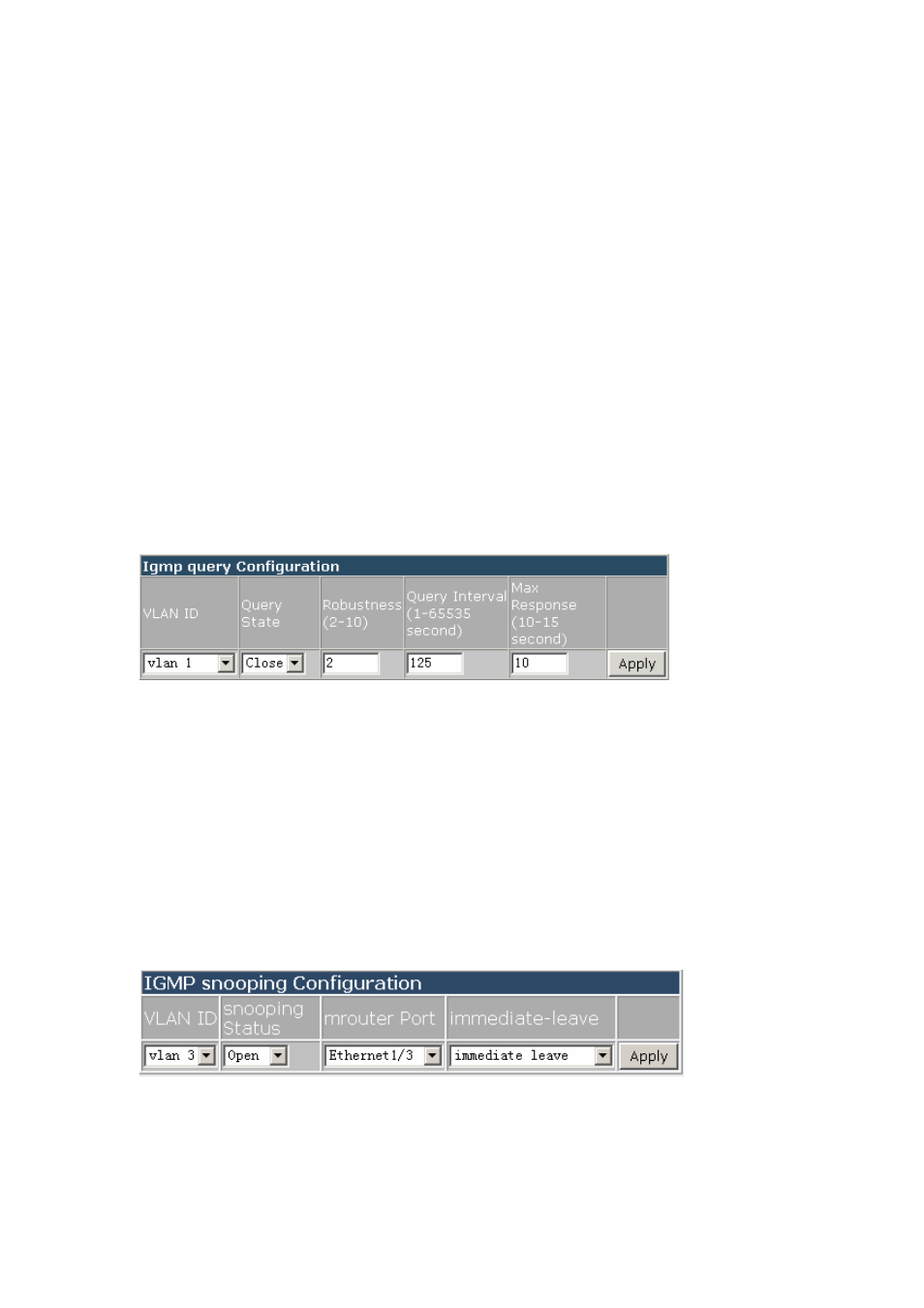

The description for each parameter is as follows:
z
VLAN ID－configures the vlan ID for query
z Query State－query status: enables or displays. Equivalent to the CLI command 11.2.2.6
z Robustness－This is equivalent to the CLI command 11.2.2.7
z Query Interval－The interval time for query. This is equivalent to the CLI command 11.2.2.8
z Max Response－The maximum value for response time. Equivalent to the CLI
command 11.2.2.9
To configure query, select VLAN from the VLAN ID list, under Query State choose Open,
configure the other parameters, click Apply.
11.5.2.2 Snooping configuration
The description for each parameter is as following:
z
VLAN ID－configure the vlanID for snooping
z snooping status－Open or Close. This is equivalent to the CLI command 11.2.2.2
z mrouter Port－This is equivalent to the CLI command 11.2.2.3
z Immediate-leave－Immediate-leave or no Immediate-leave. This is equivalent to the CLI
command 11.2.2.5
To configure snooping, select the Vlan from VLAN ID list, set snooping status to open, configure
the other parameters and click Apply.
11.5.2.3 Configuration display
When the configuration had been executed as described in the above section, the display is as
follows:
