E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
z Bandwidth control level: port bandwidth control. The unit is Mbps and the value range is
1~10000Mbps
z Control type: Ingress means to control port bandwidth when receiving data packet sent
from outside the switch. Egress means to control port bandwidth when sending data
packets to outside of the switch. Ingress and Egress means to control port bandwidth
when both receiving and sending.

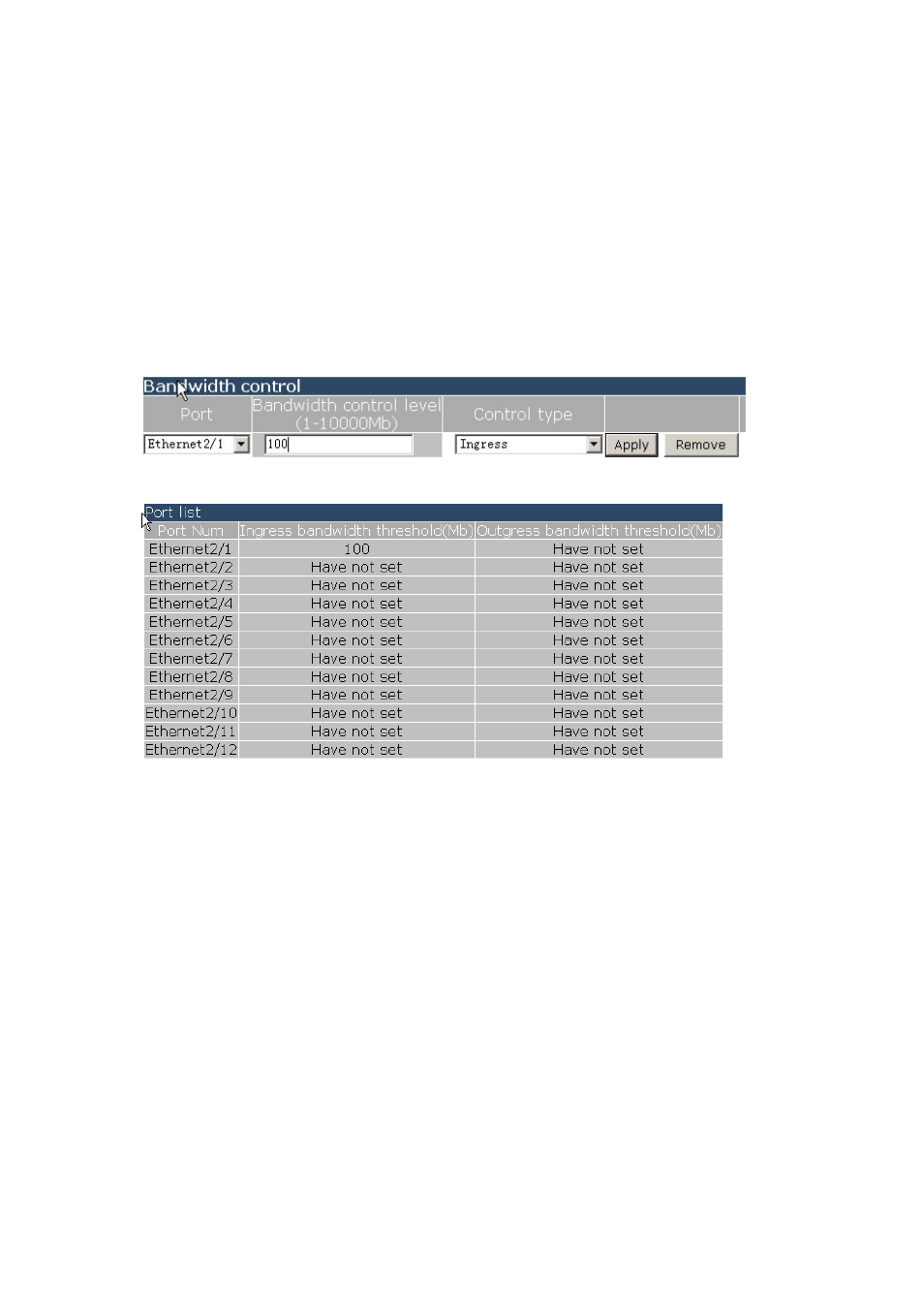

Example: Choose Port to be Ethernet 2/1, set up Bandwidth control level as 100Mb, Control type as
Ingress, then click Apply button. So the port 1/1 will execute bandwidth control and receiving data
packet with 100M.
Port list table displays the port bandwidth control information of the switch:
7.5.2 Vlan interface configuration
Click Port configuration, vlan interface configuration to open the VLAN port configuration
management list to allocate IP address and mask on L3 port and so on.
7.5.2.1 Allocate IP address for L3 port
Click “Port configuration”, “vlan interface configuration”, Allocate IP address for L3 port to
allocate IP address for L3 port. Equals to CLI command 7.2.2.2.2. This setup contains the
following characteristics:
z Port: L3 port
z Port IP address: IP address for L3 port
z Port network mask
z Port status
z Operation type: add/delete address
Example: Assign Port as Vlan1, port IP address as 192.168.1.180, Port network mask as
255.255.255.0, Port status as no shutdown, Operation type selection as Add address then click Apply
button and this set up will be applied to the switch.
