144
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch

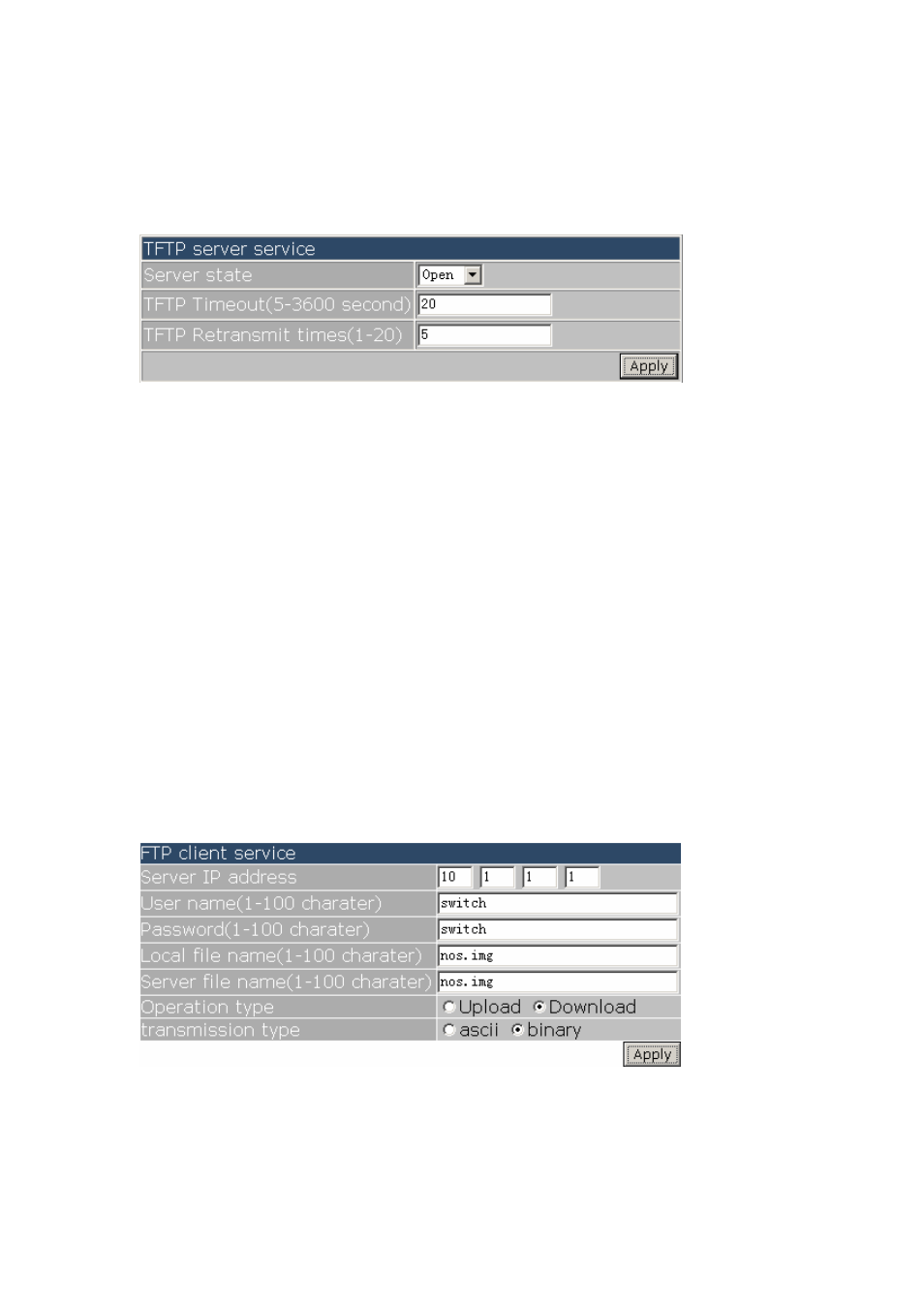

Server state－status of the server. (“Open” or “Close”) Please refer to the CLI command 5.5.2.2.10
TFTP Timeout－the timeout. Please refer to the CLI command 5.5.2.2.12.
TFTP Retransmit times－times of retransmission. Please refer to the CLI command 5.5.2.2.11.
Users should open the TFTP server, and choose “Open” and then click “Apply.”
5.6.3.3 FTP client configuration
Users should click “Switch basic configuration” and “FTP client service” to enter into this
configuration page. Please refer to the CLI command 5.5.2.2.3。
Words and phrases are explained in the following:
Server IP address－IP address of the server
User name－the name of the user
Password－the specific password
Operation type－”Upload” means to upload files; “Download” means to download files
Transmission type－”ascii” means to transit files by using ASCII standard. “binary” means the files
are transmitted in binary standard.
Users should follow the Figure below to get the system file from the FTP Server 10.1.1.1, with
server file name is “nos.img” and local file name “nos.img.” The ftp username is “switch” and
password is “switch”. Click “Apply”.
5.6.3.4 FTP server configuration
Users should click “Switch basic configuration” and “FTP server service” to enter into the
configuration page and make configuration nodes, which include “server configuration” and “user
